SPECIFICATIONS

Application: Desktop

Audio Channels: 2.1

Back I/O Ports: 1x RJ45,PS/2 Combo

Battery Included: No

Brand Name: MACHINIST

Chipset: h55

Chipset Manufacturer: Intel

Form Factor: CeB,ATX

High-concerned chemical: None

MVME M.2: 1

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 256GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 2

Number of PCI: 5

Number of PCIe x 1: 2

Number of PCIe x 16: 4

Number of PCIe x 4: 1

Number of PCIe x 8: 0

Number of SATA Ports: 4

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),4-pin +12V Power Connector,8-pin +12V Power Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: M.2

Processor compatibility: Intel Xeon E Series,Intel Xeon Scalable

Quality Certification: ce,ROHS

RAID Supported: No

SATA M.2: 1

SATA RAID: 1

Socket Type: LGA 2011-3

Special Features: NONE

Storage Interface Type: M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Office,others

With CPU: No

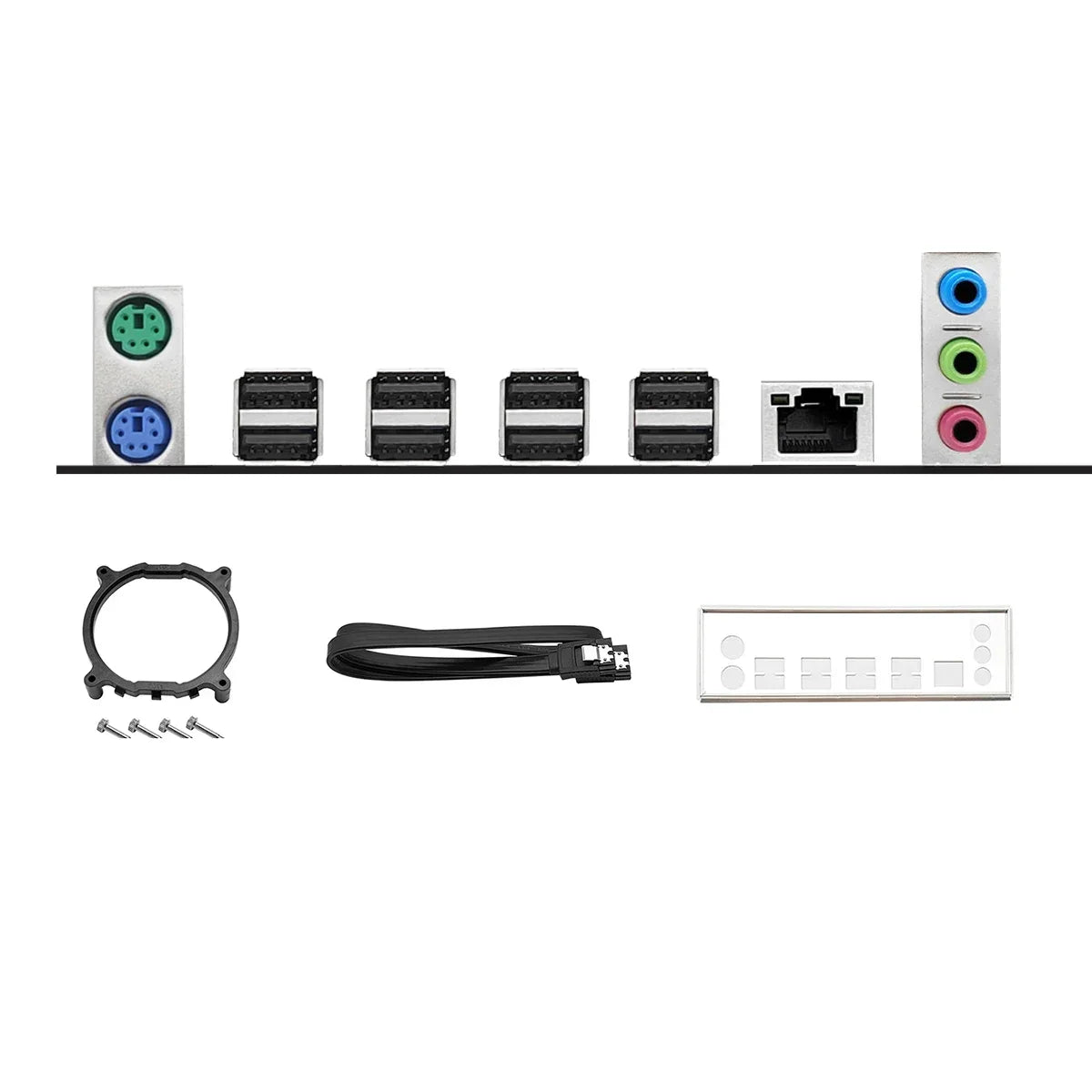

>> Motherboard package includes:

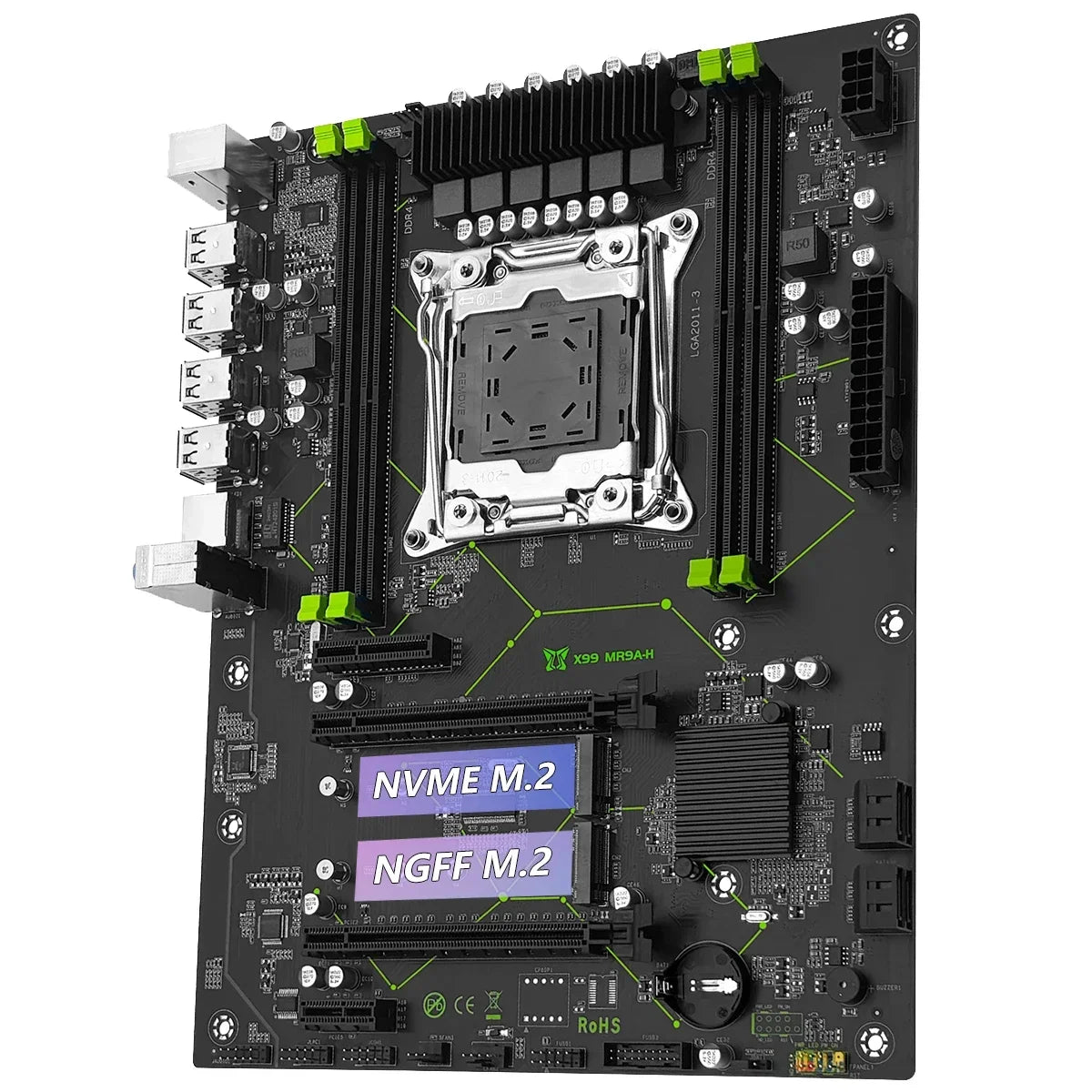

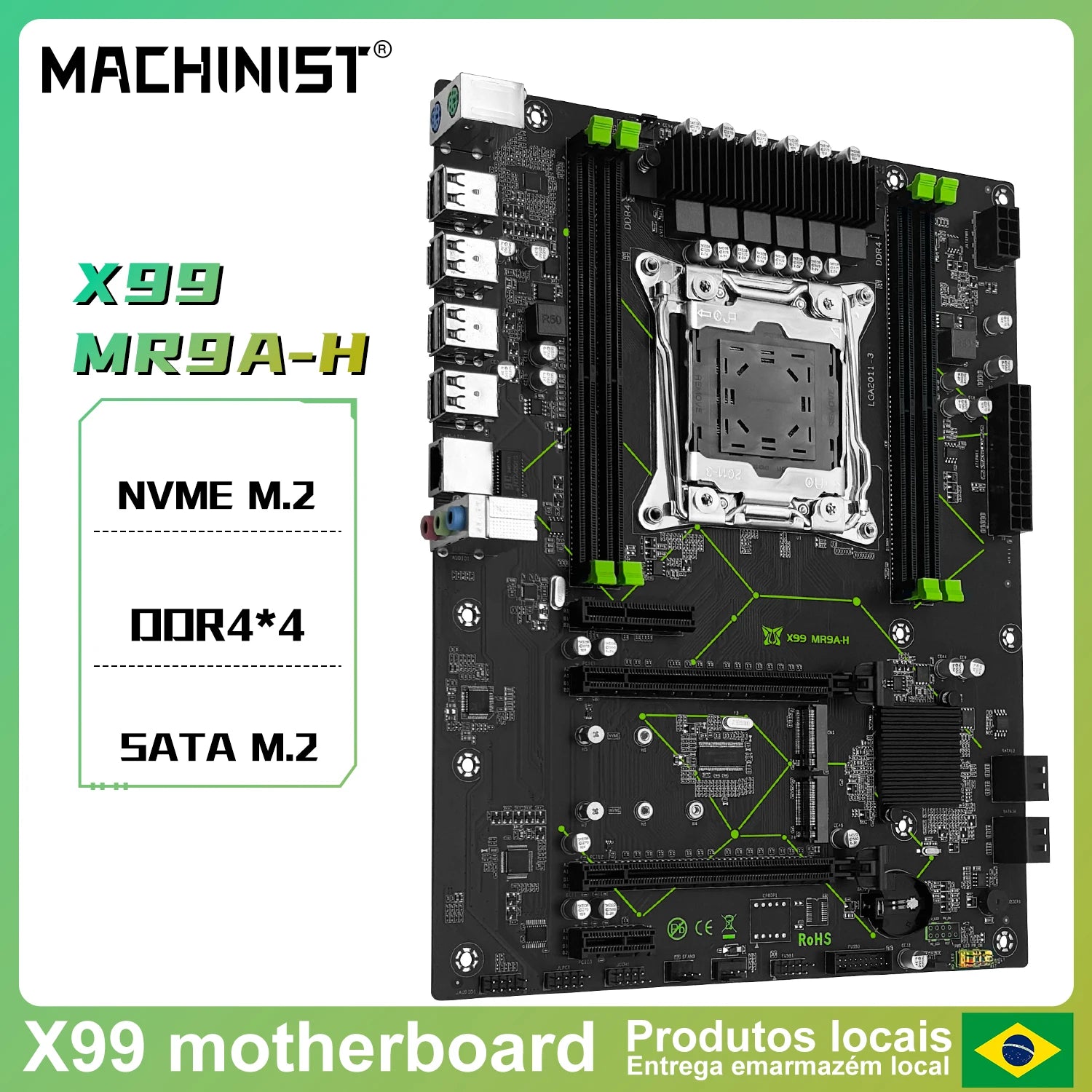

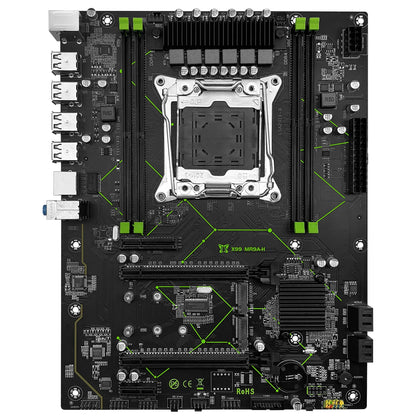

# Motherboard: MACHINIST X99 MR9A-H motherboard *1PCS;

Complimentary accessories: I/O shield *1, SATA cable *1, lga 2011 cooling bracket *1.

(Packaging is carried out after manual testing before sending. Please understand if there are any gifts missing!)

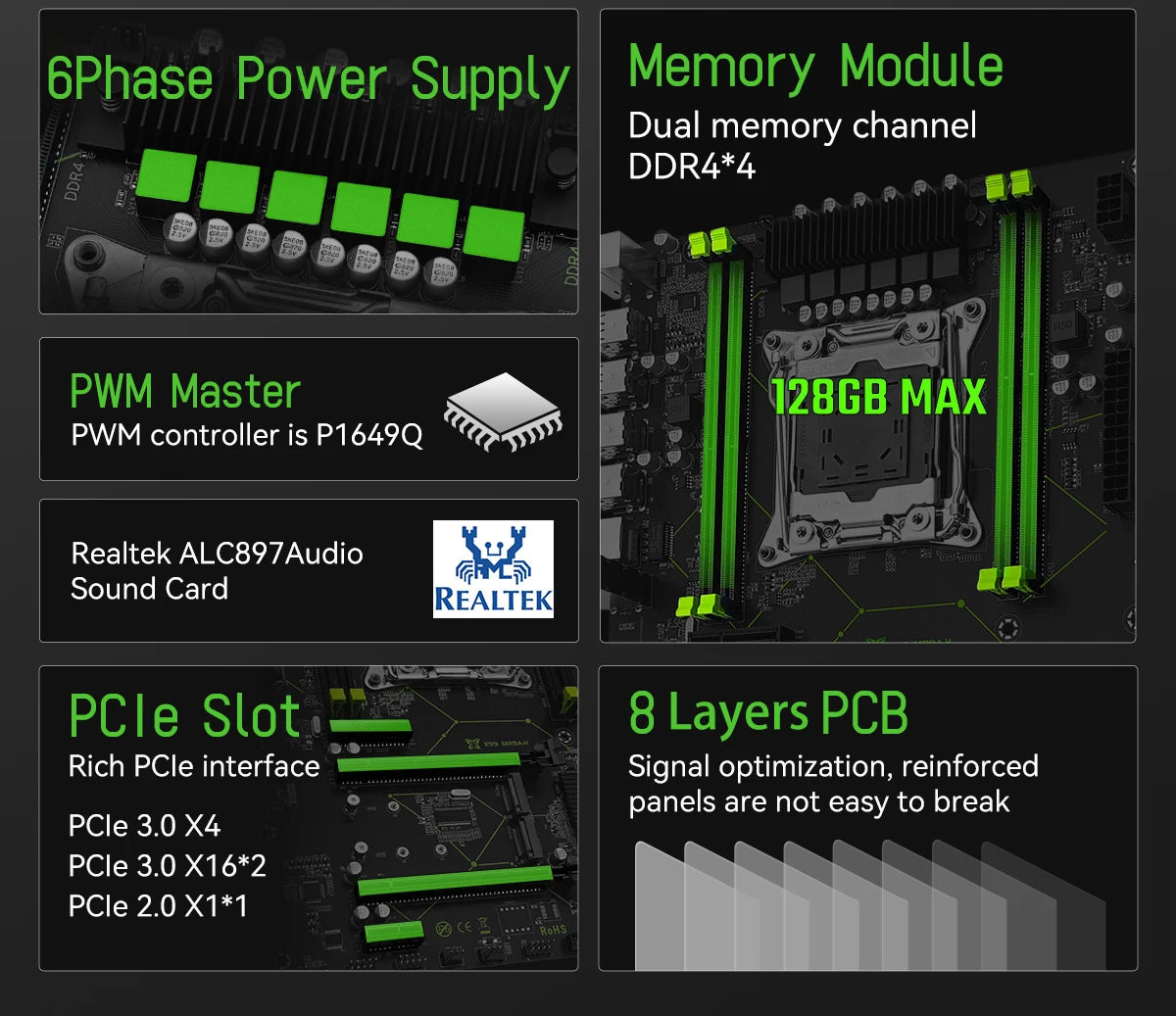

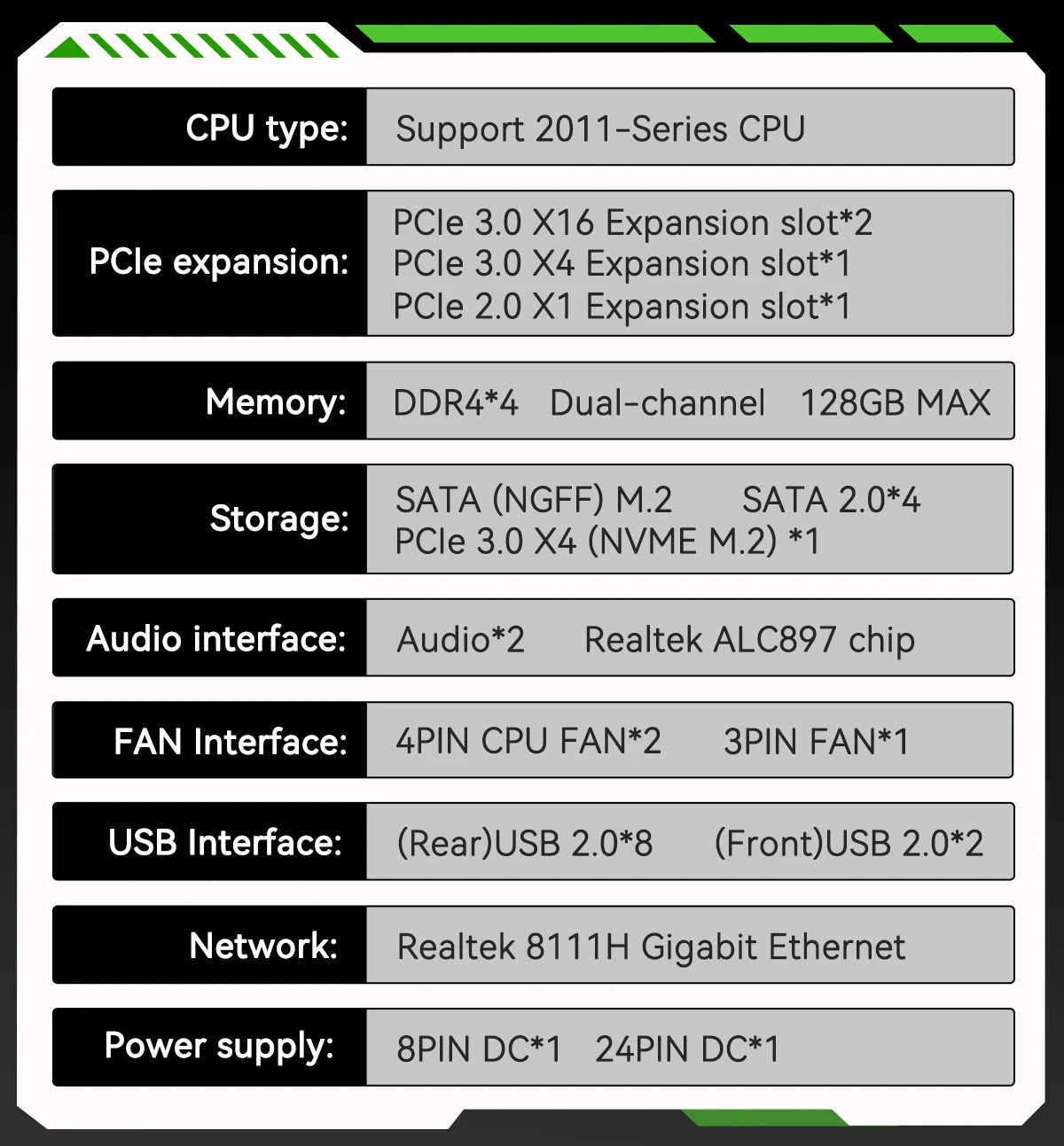

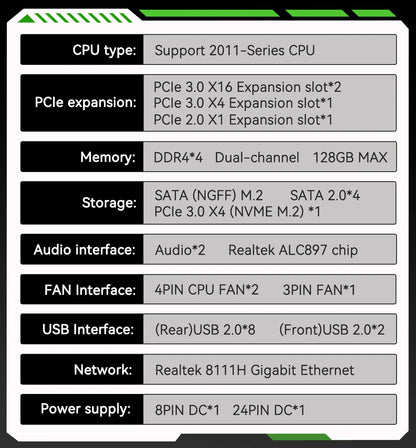

>> Motherboard information:

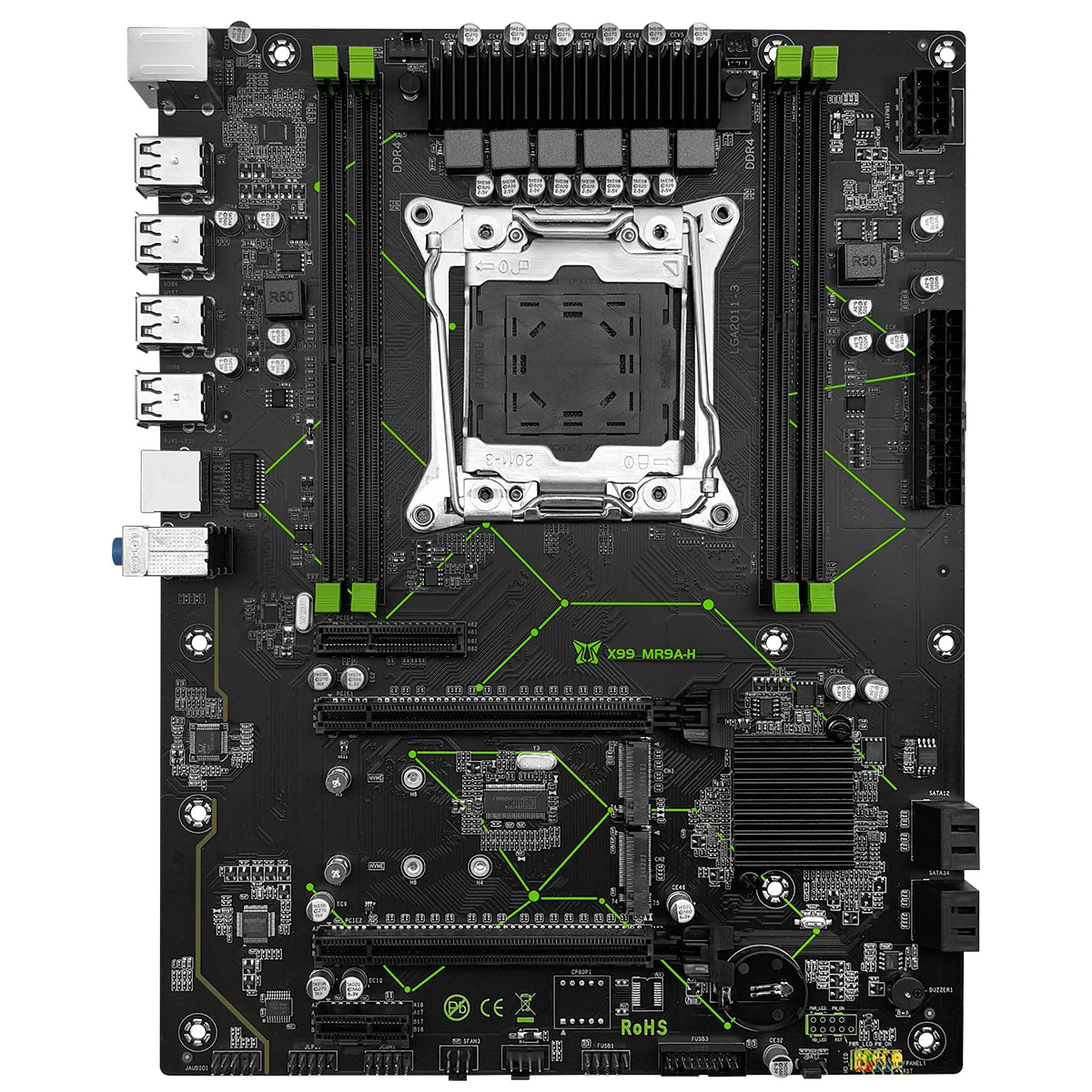

Brand :MACHINIST.

Motherboard model :X99 MR9A-H.

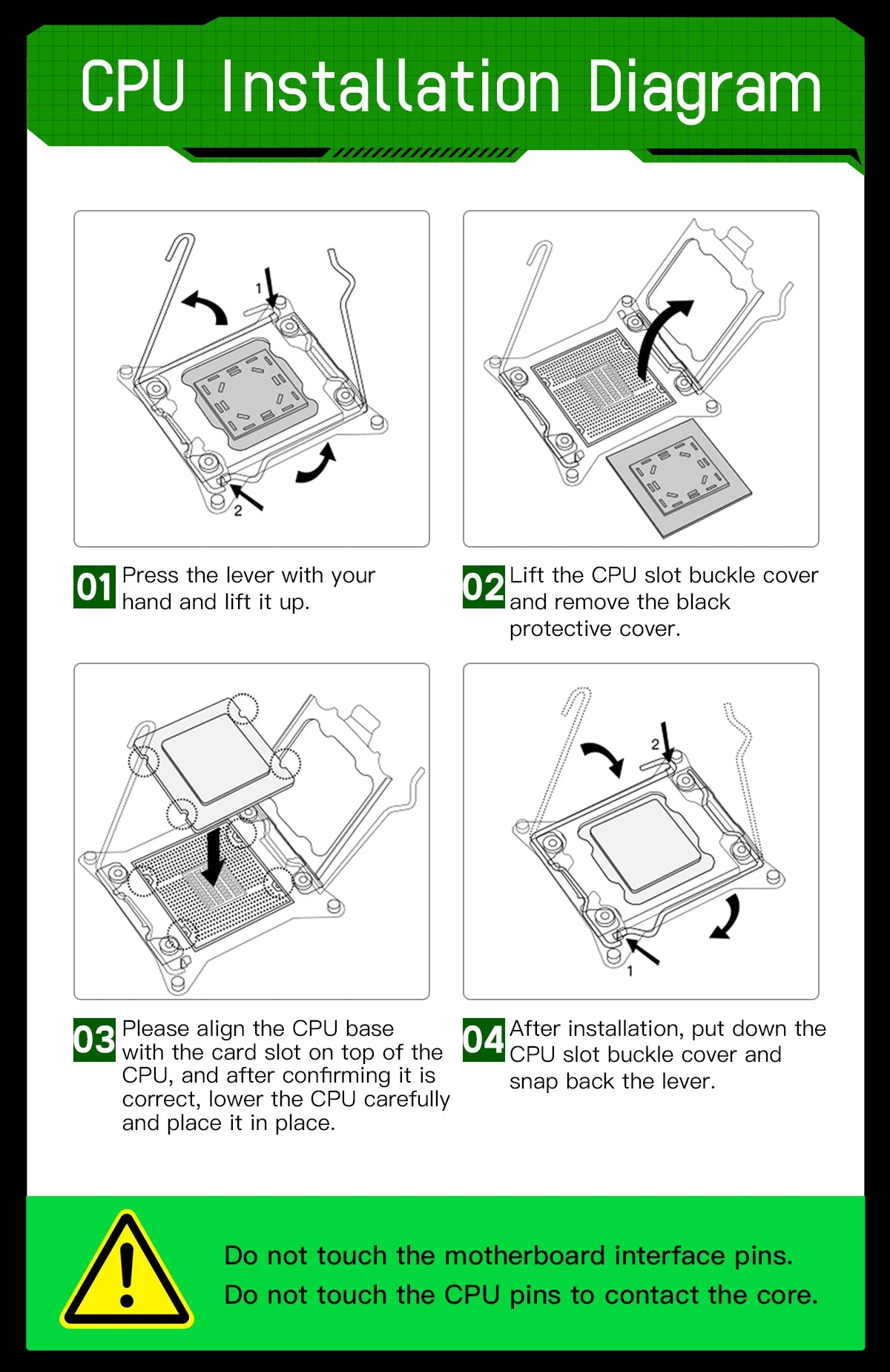

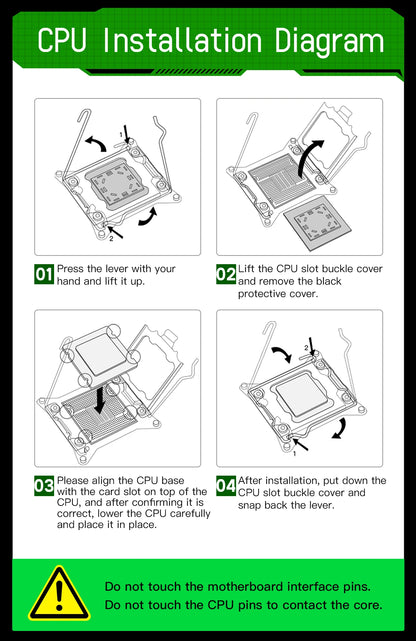

Processor: Supports Intel LGA 2011-3-pin series processors.

Chipset: HM55 Chipset.

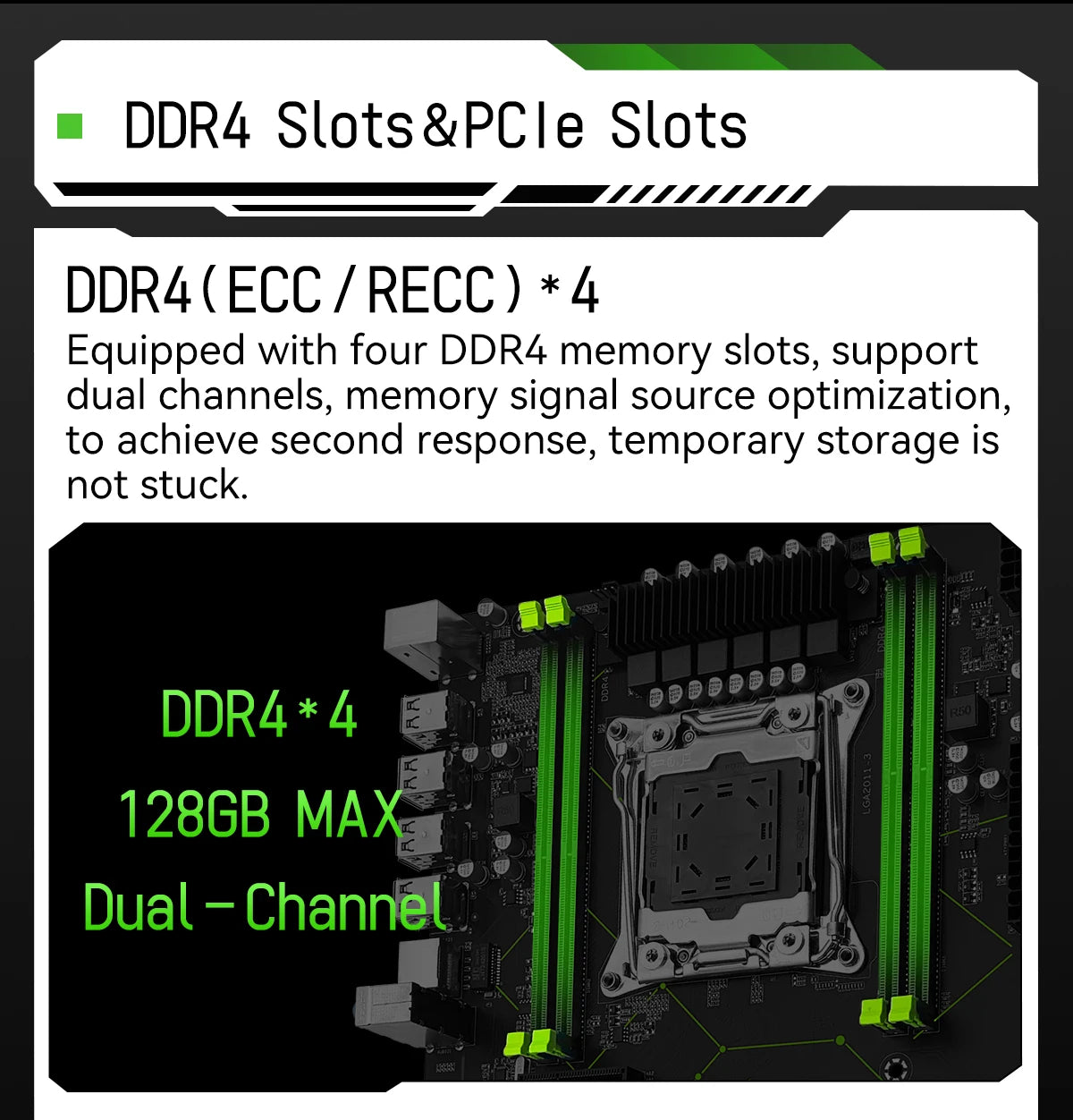

> > Memory:

Technology: Dual channel DDR4. Supports 2133/2400/2666/3200MHZ.

Maximum capacity 128GB (32G x 4).

Memory slot :4 x 288 PIN DDR4.

Supported memory type: The memory type supports DDR4 desktop and server memory.

(Note: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may not be compatible.)



>> Post I/O:

PS/2: one KB port + one MS port.

USB ports: 8 USB2.0.

Ethernet: one Gigabit network adapter.

Audio :1 (Mic-in, Line-out, Line-in).

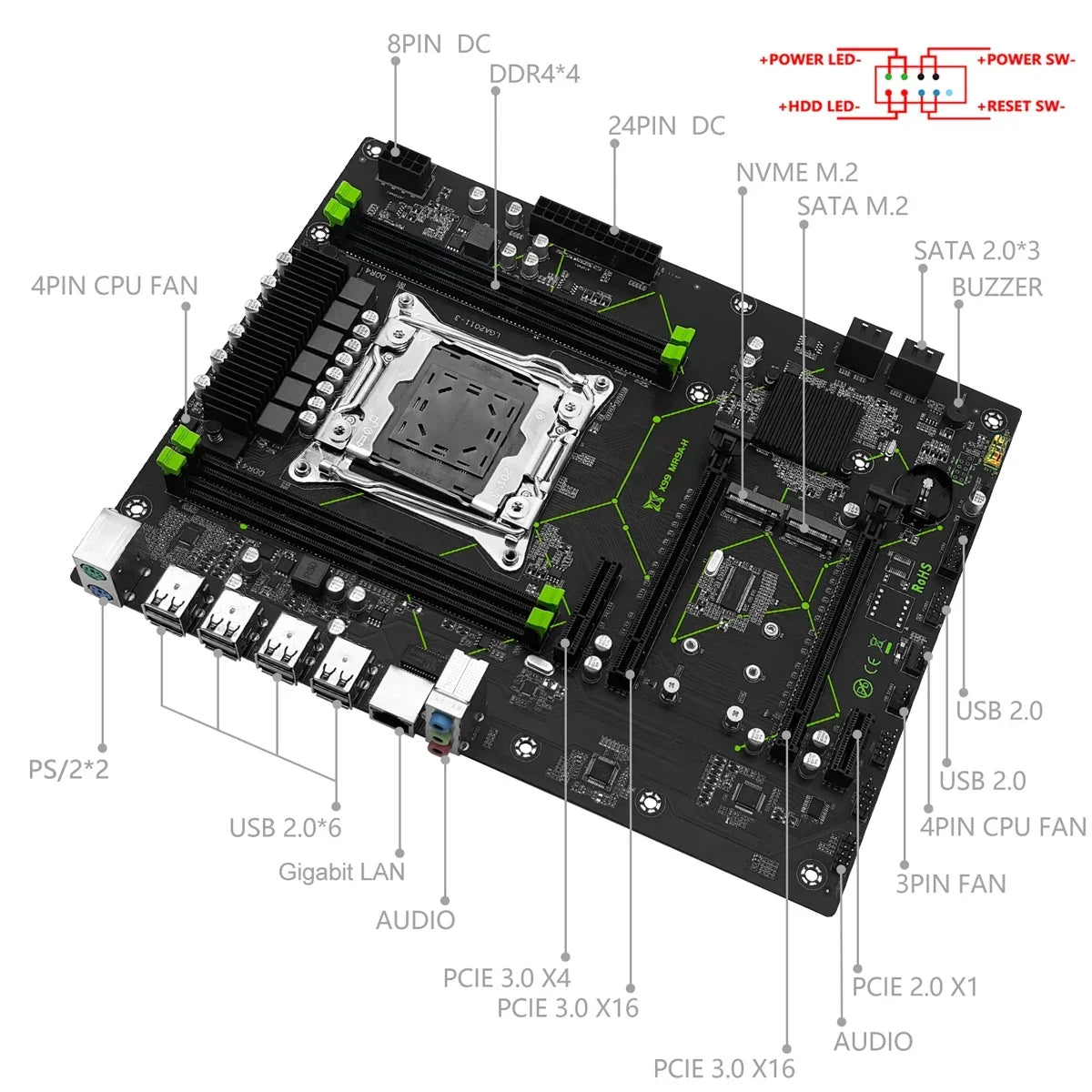

>> Internal connector:

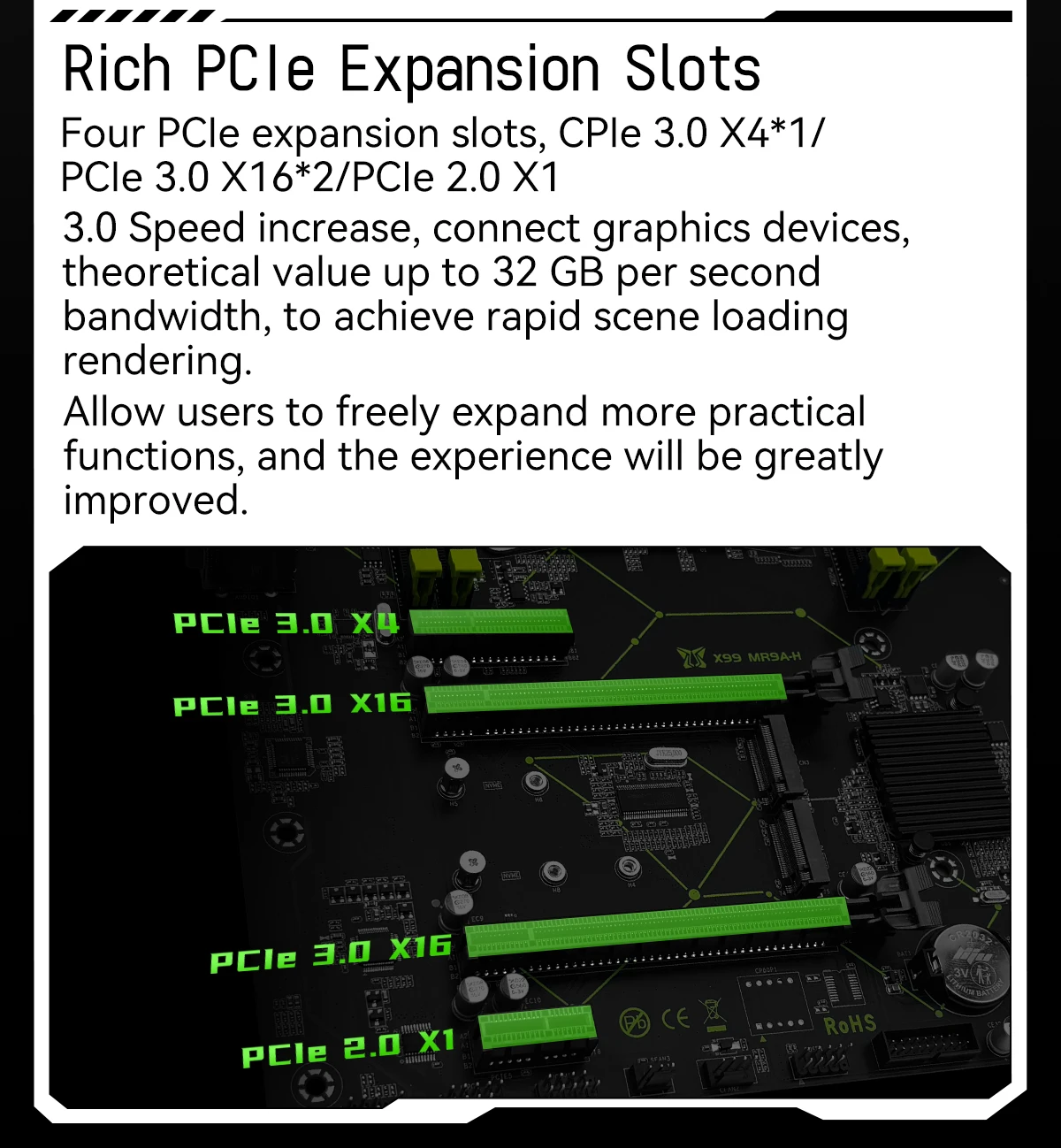

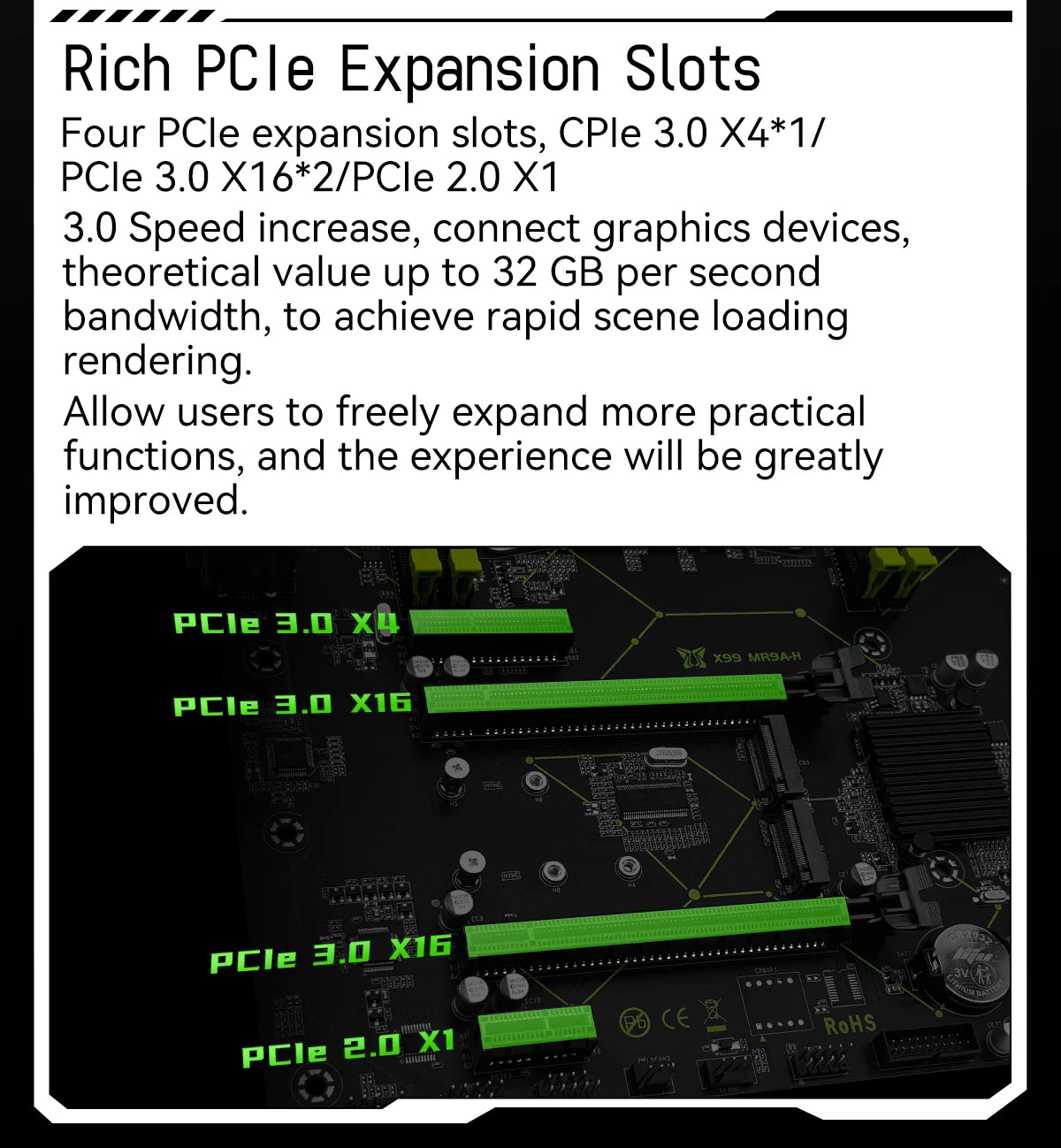

PCIe: Two PCIe 16x, one PCIe 4x, and one PCIe 1x.

F_PANEL: 1 2x5Pin pin.

SATA ports: 4 (4 SATA2.0);

1 standard 1x8PIN power outlet; 1 standard 1x24PIN power outlet;

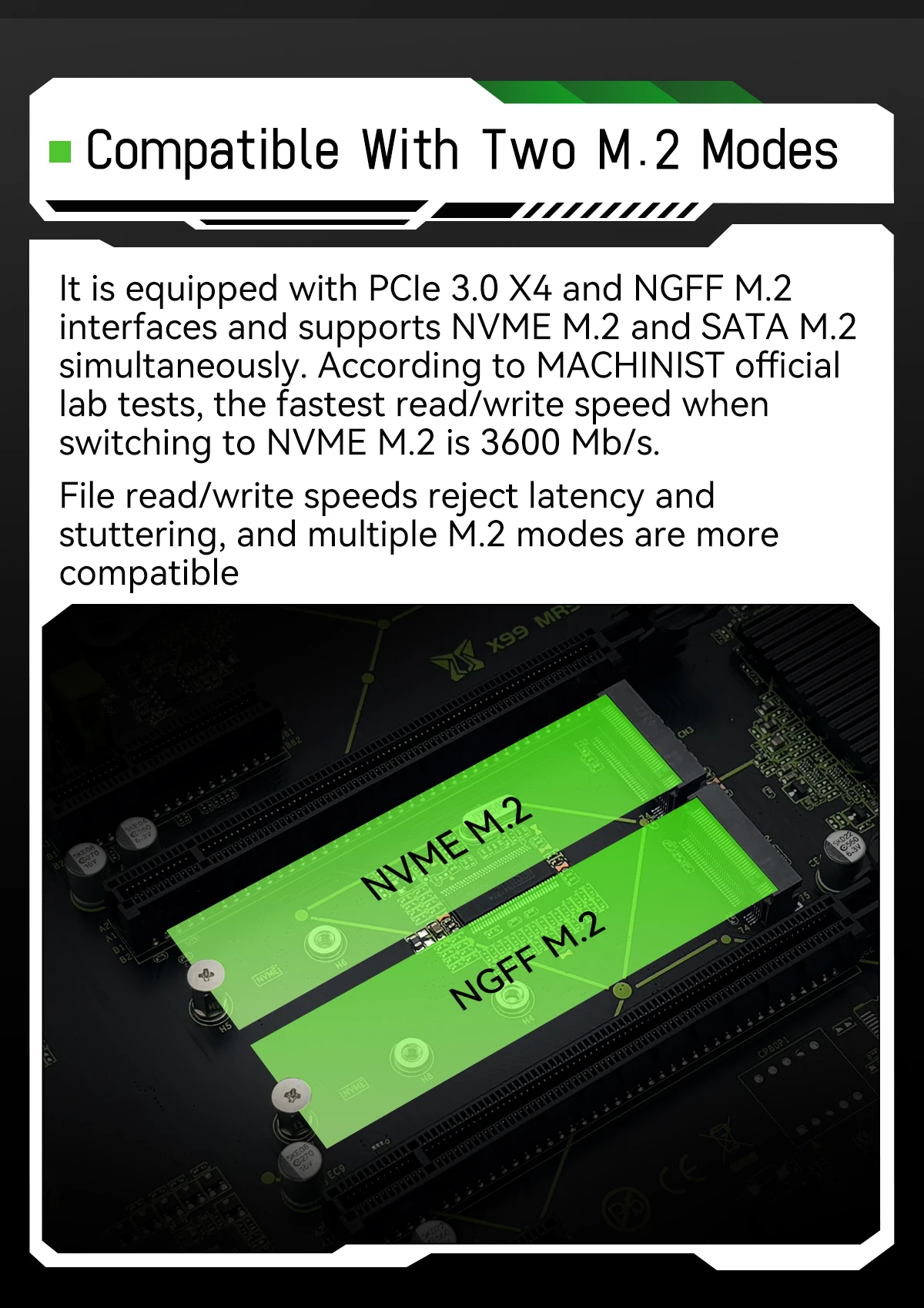

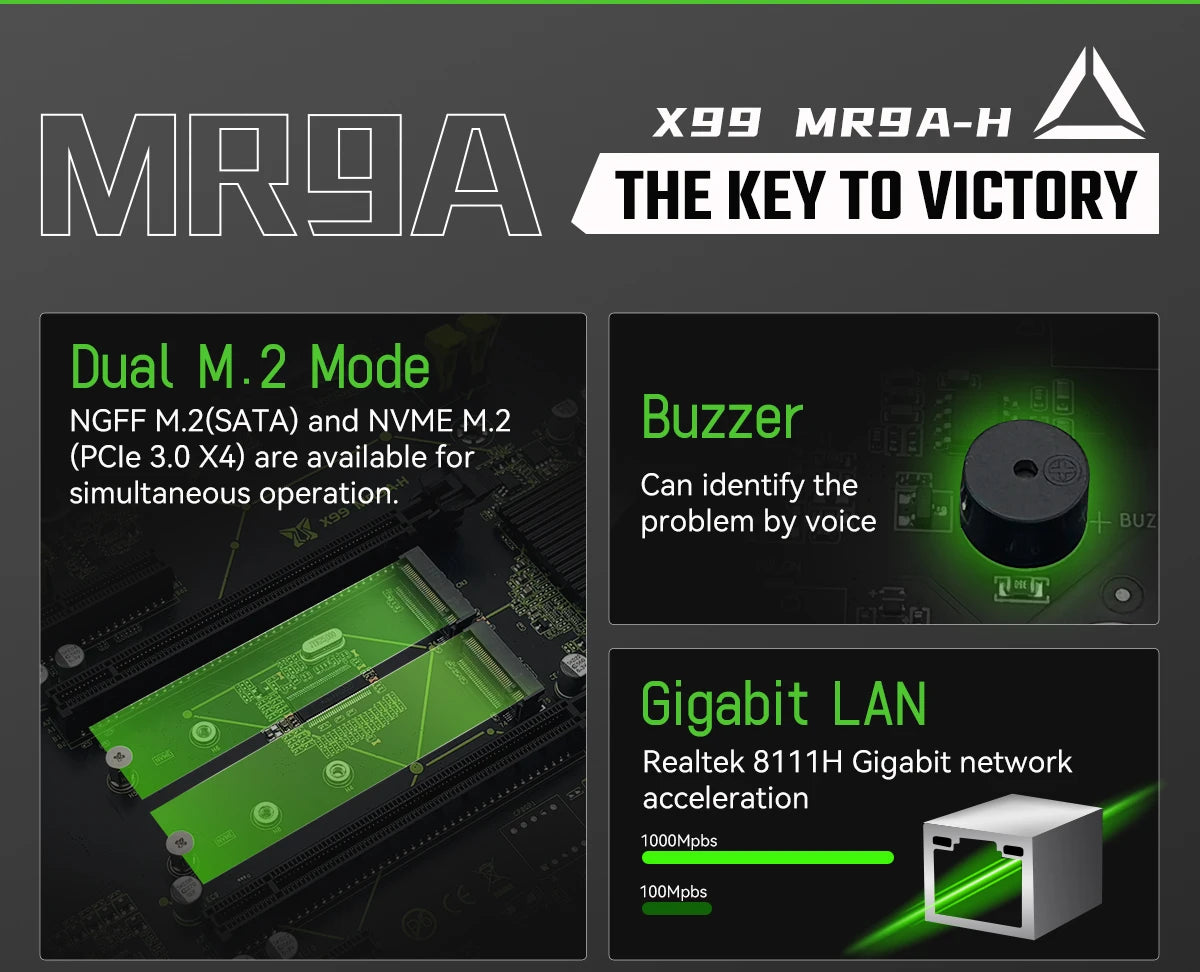

M.2 Ports: One PCIE and one NGFF.

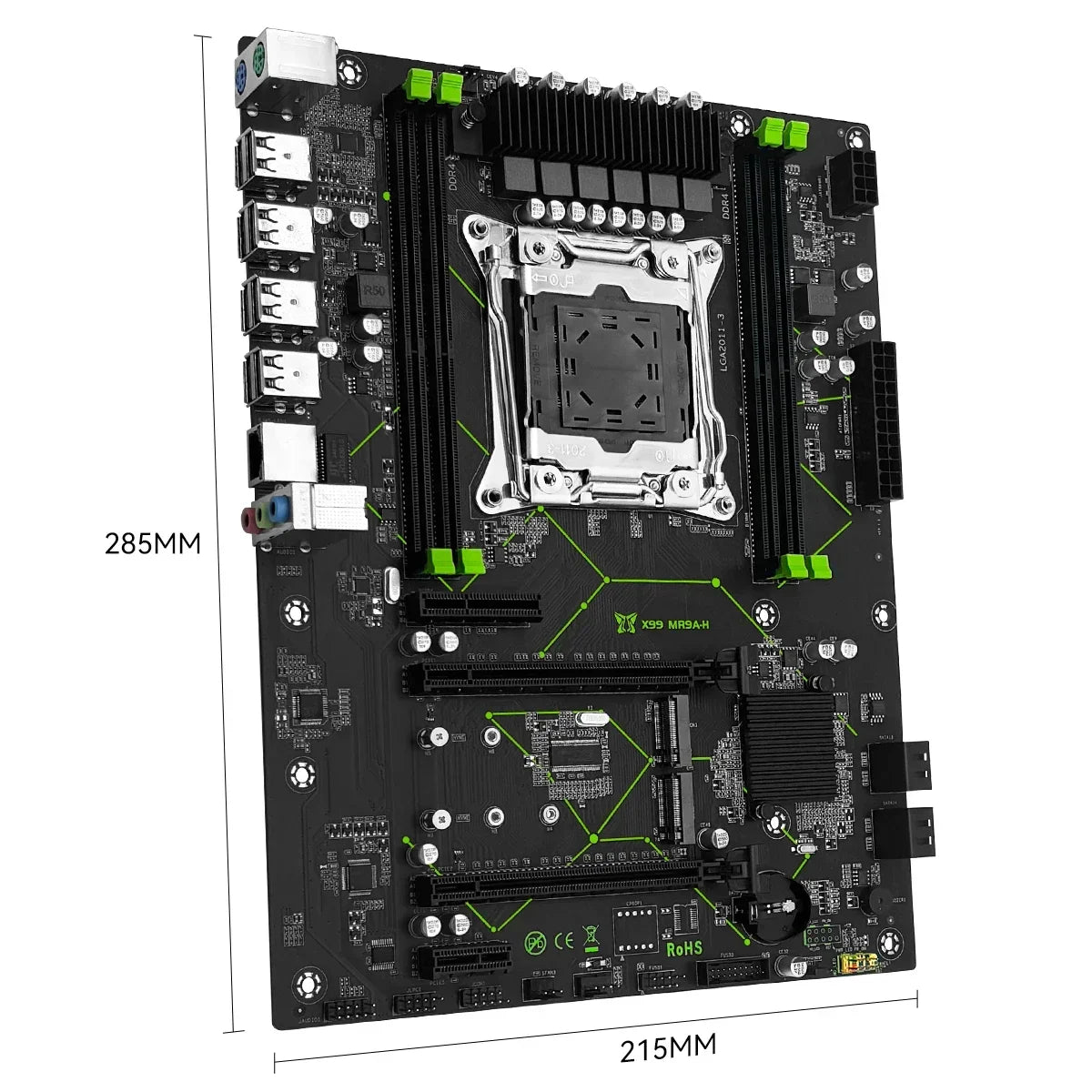

Dimensions :280mm * 215mm.

Motherboard weight (including packaging) : Approx. 1.1 kg.

>> Note:
(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are constantly optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1-3mm.
(3) Due to different displays and different lighting, the picture may not show the actual color of the item. Thank you for your understanding.
(4) The platform needs a powerful power supply. Make sure your power supply is sufficient to support this platform. (At least 500w brand power supply)
(5) The battery in the motherboard photo is not included and will be removed before shipment, because the logistics requirements prohibit the use of the battery.
