SPECIFICATIONS

Application: Desktop,Server

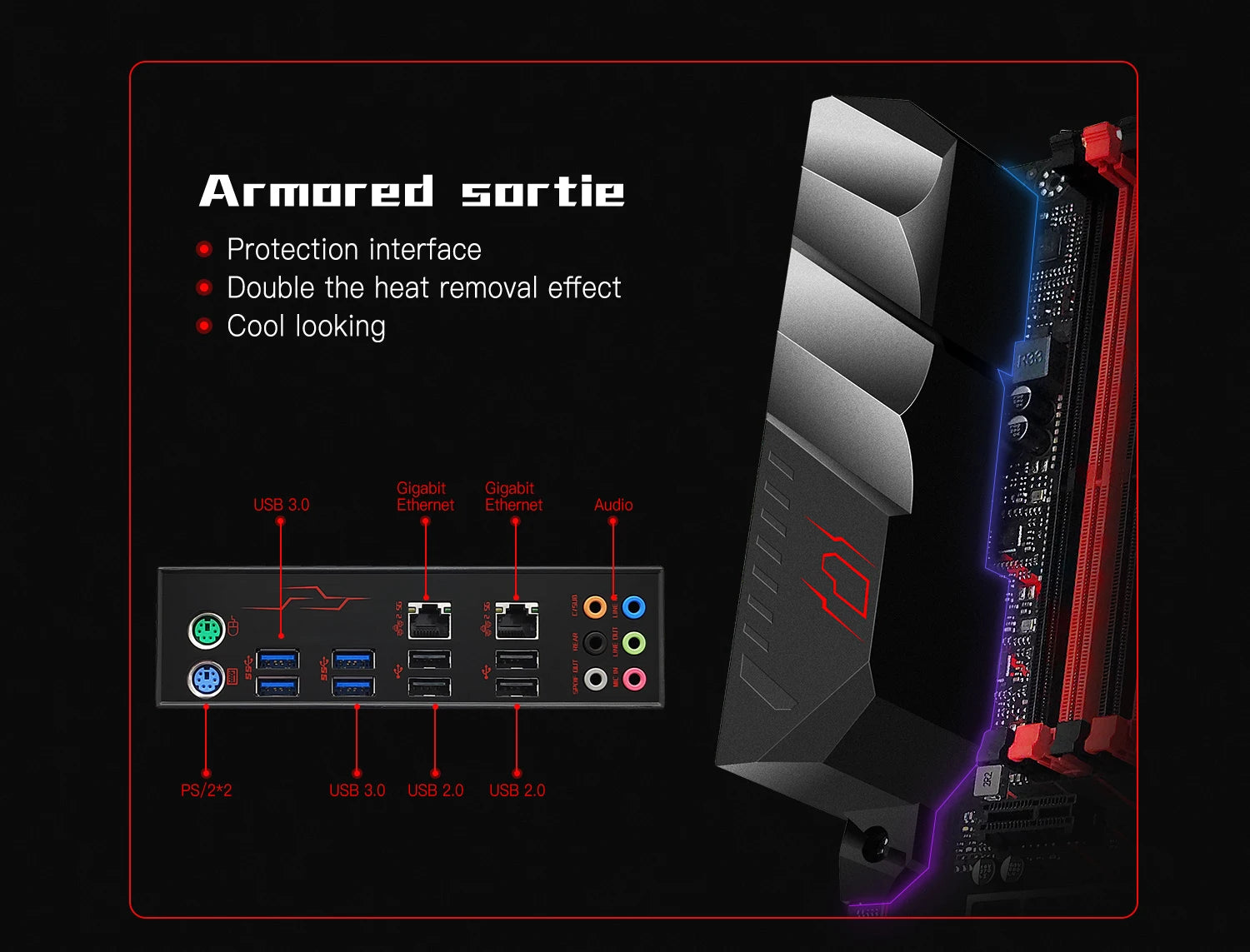

Back I/O Ports: 2x RJ45,WiFi,PS/2

Battery Included: No

Brand Name: MACHINIST

Chipset: C612

Chipset Manufacturer: Intel

Form Factor: ATX

High-concerned chemical: None

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 256GB

Memory channel: Four

Number Of Memory Slots: 8

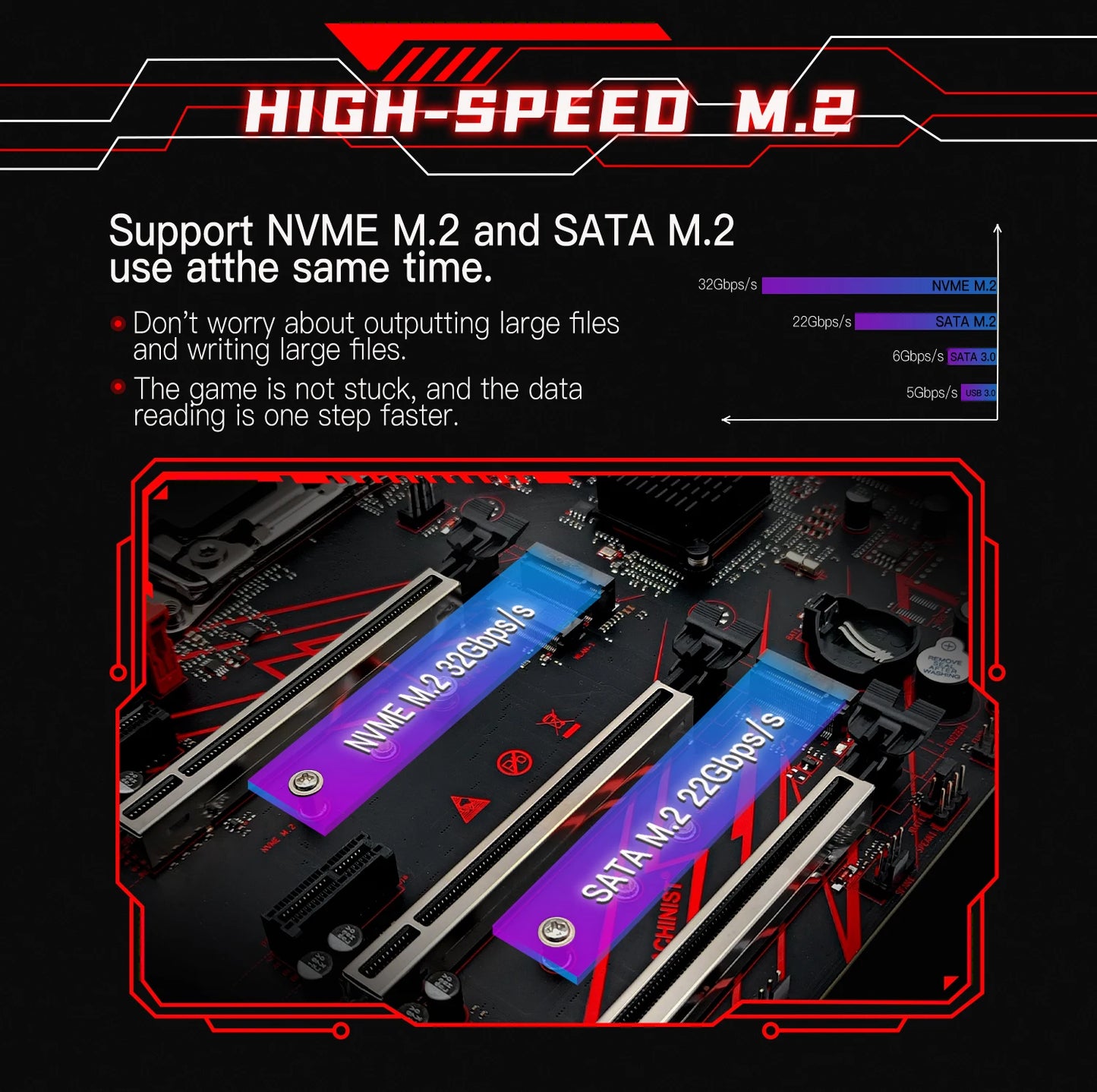

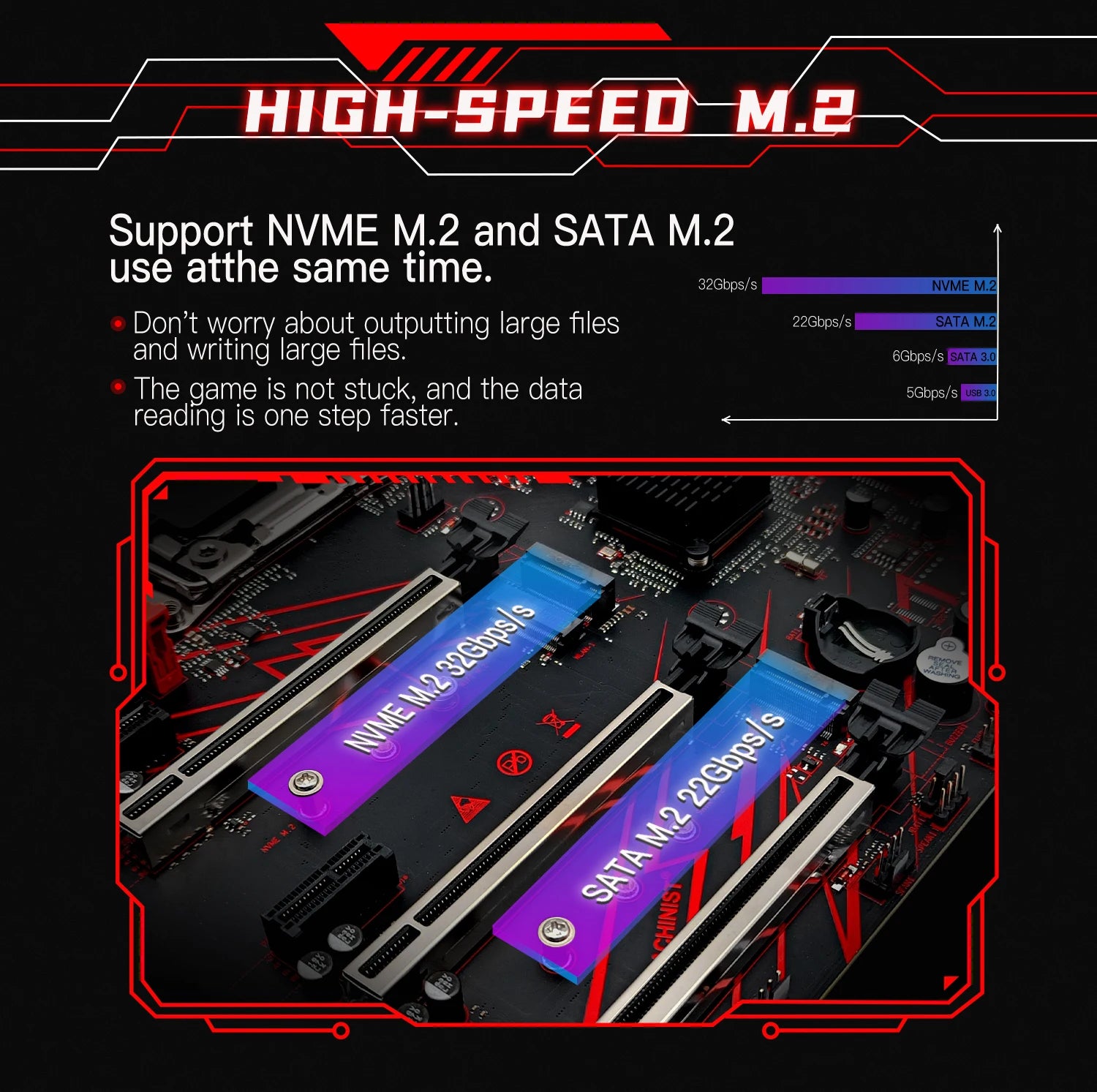

Number of M.2: 2

Number of PCI: 5

Number of PCIe x 1: 2

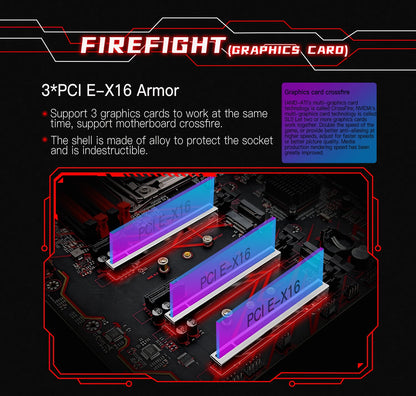

Number of PCIe x 16: 3

Number of PCIe x 4: 0

Number of PCIe x 8: 0

Number of SATA Ports: 10

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,4-pin +12V Power Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: USB 3.0

Processor compatibility: Intel Xeon

Quality Certification: ce,ROHS

RAID Supported: No

SATA RAID: 0

Socket Type: LGA 2011-3

Special Features: NONE

Storage Interface Type: SATA

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Office,Video Production,Workstation,others

With CPU: No

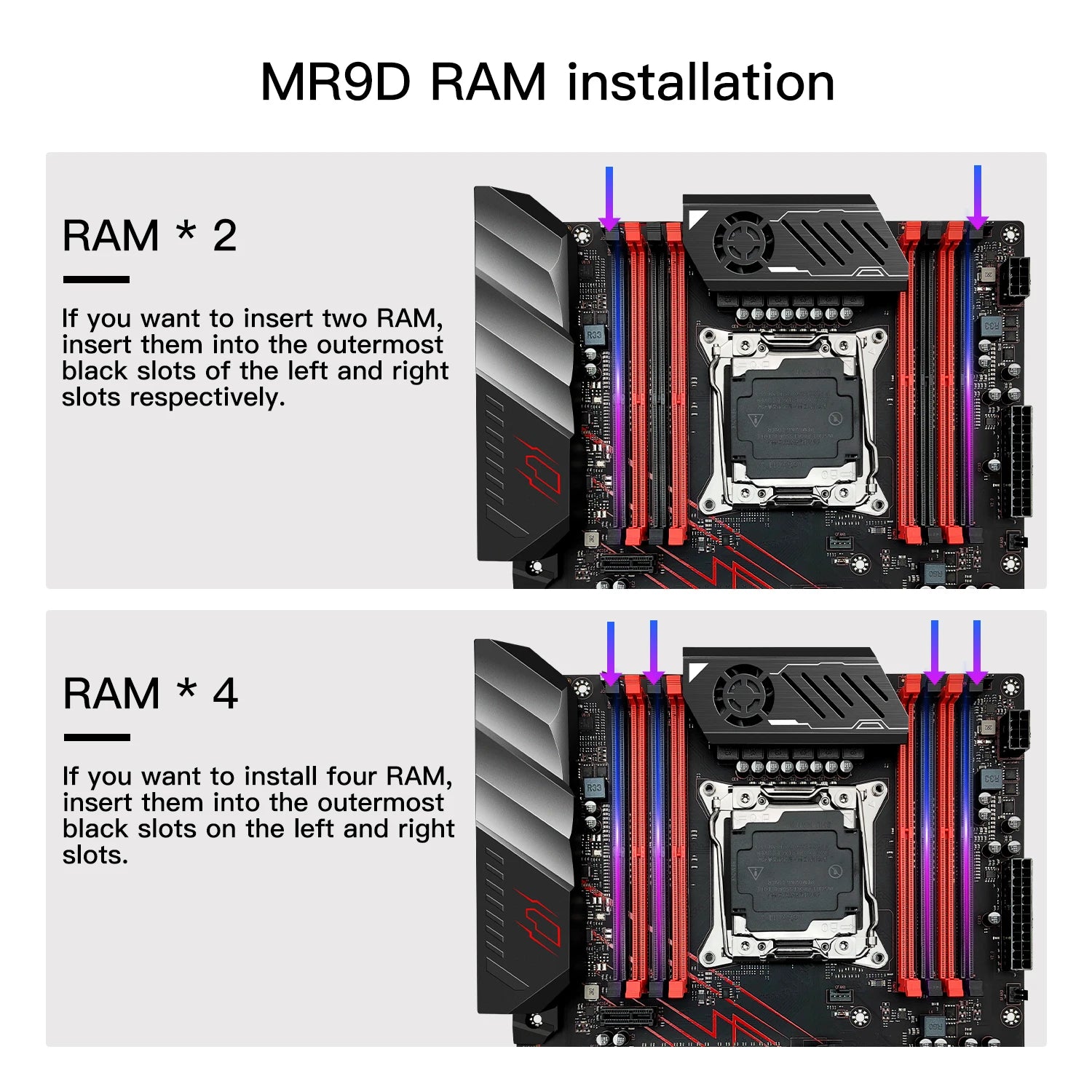

!! When inserting memory into this motherboard, please pay attention. Please refer to the detailed description in the second picture of the main image.

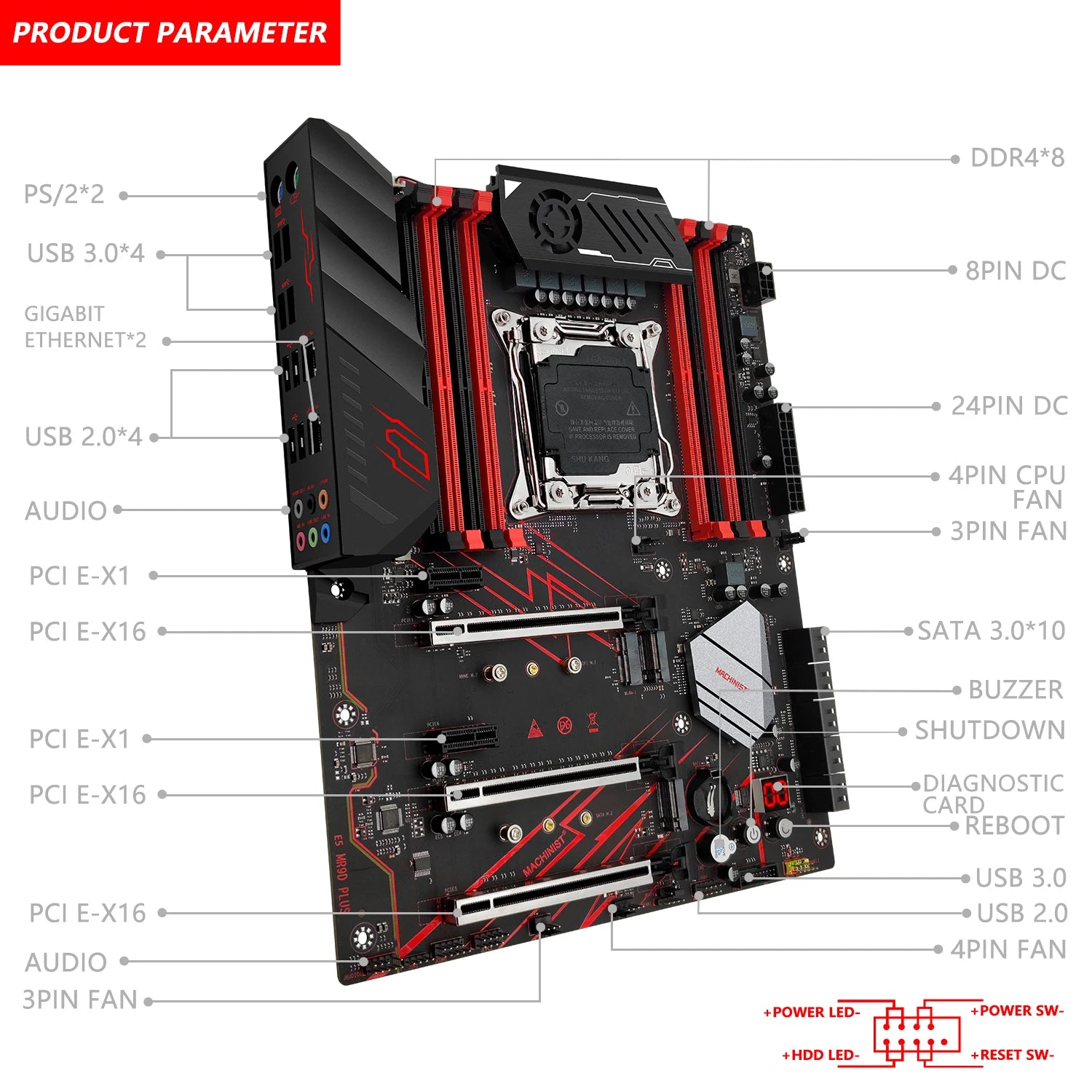

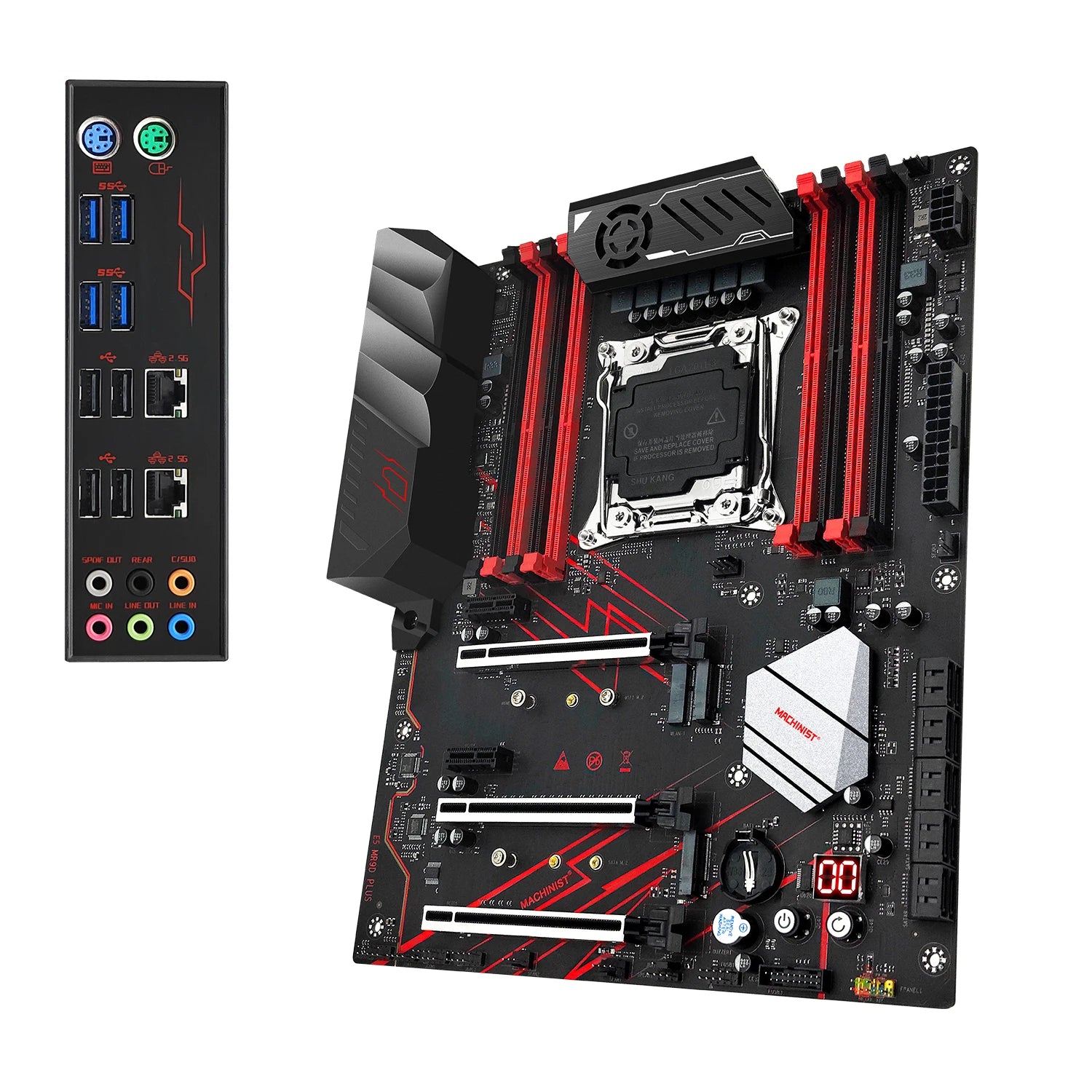

>> Motherboard information:

Brand: MACHINIST.

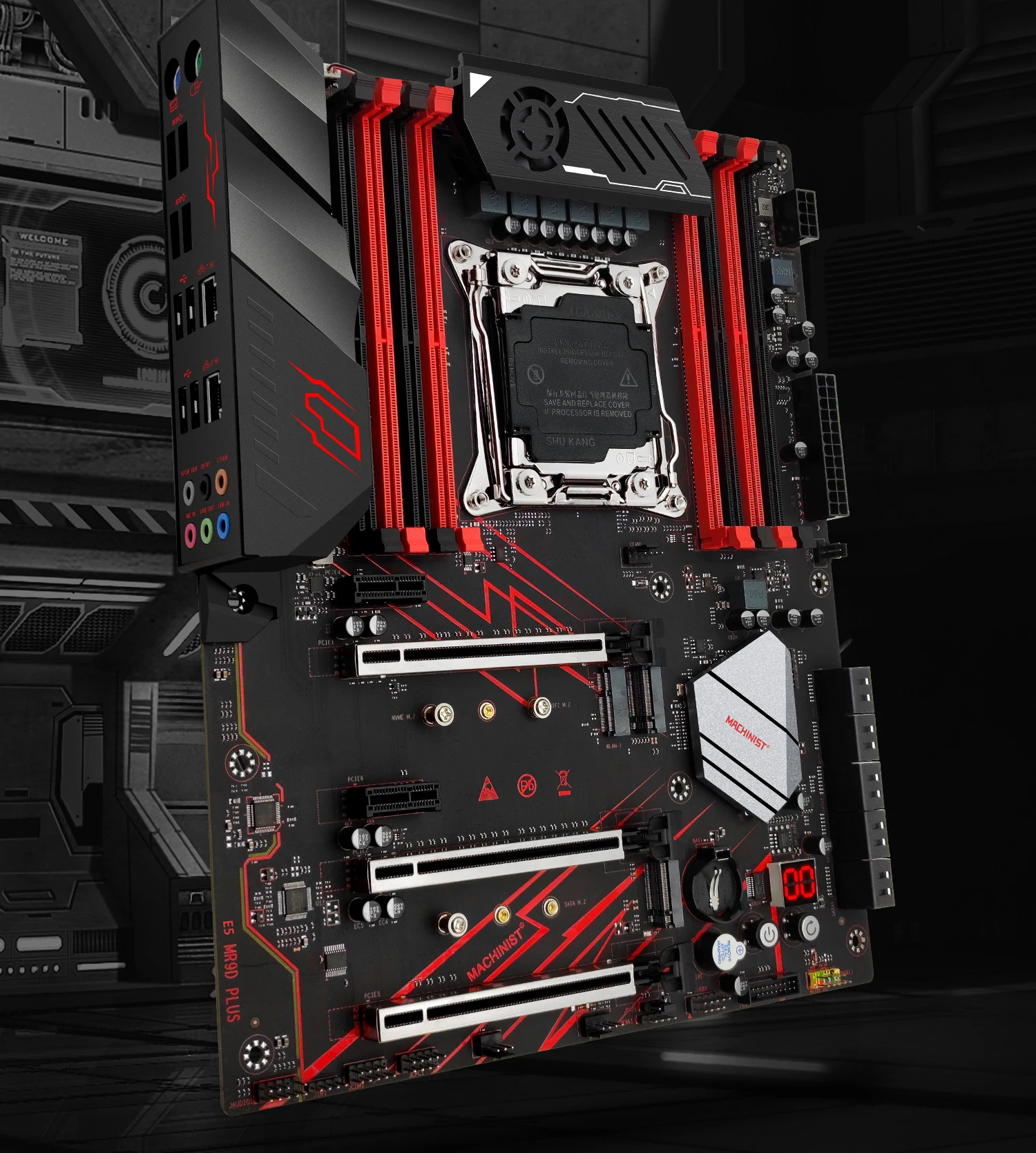

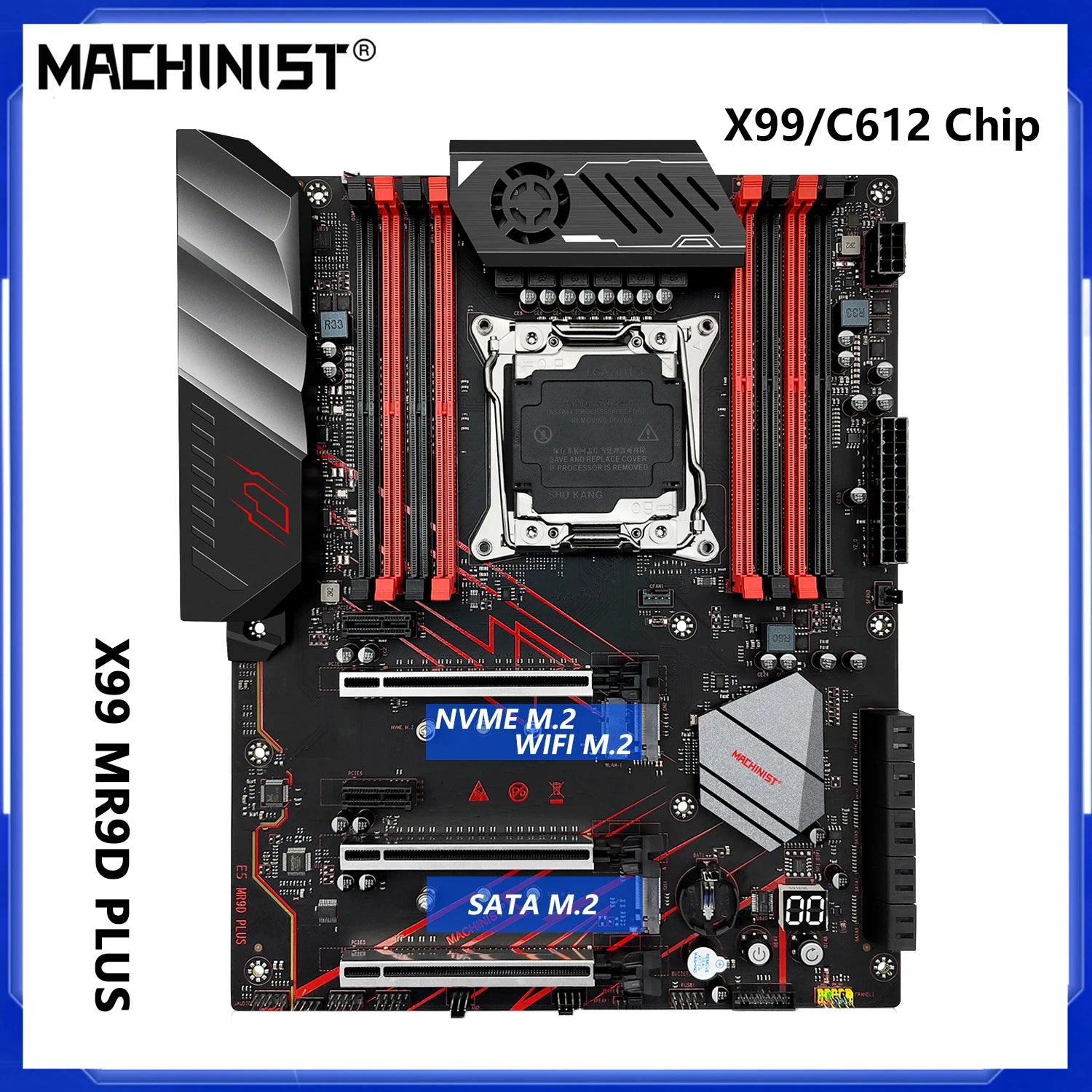

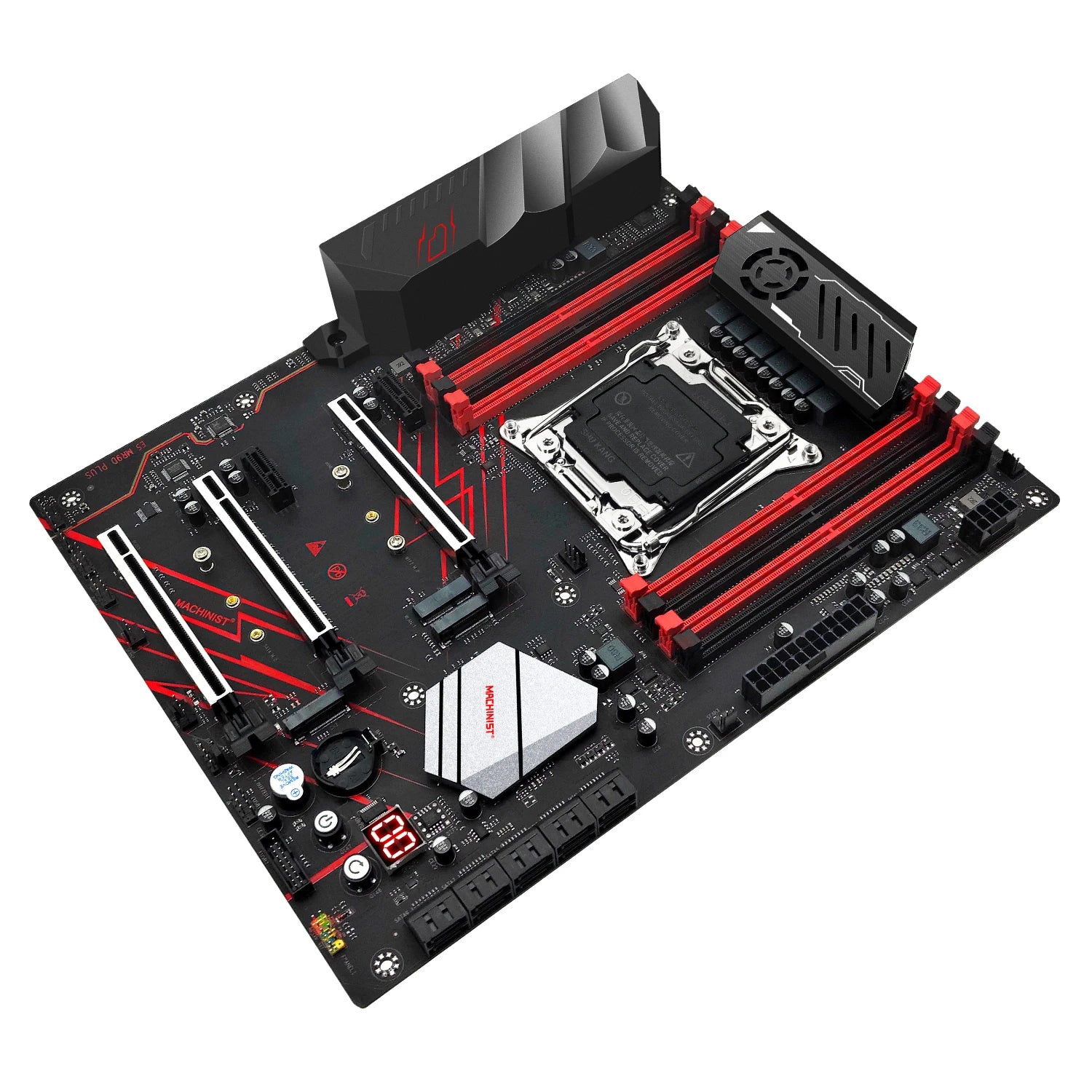

Motherboard model: X99/E5 MR9D PLUS(red version).

Processor: Supports Intel LGA 2011-3-pin series processors.

Chipset: C612/X99 chipset.

Complimentary accessories: I/O shield *1, SATA cable *1, lga 2011 heat sink *1.

(All items are manually tested before sending and then packaged. Please understand if any gifts are missing!)

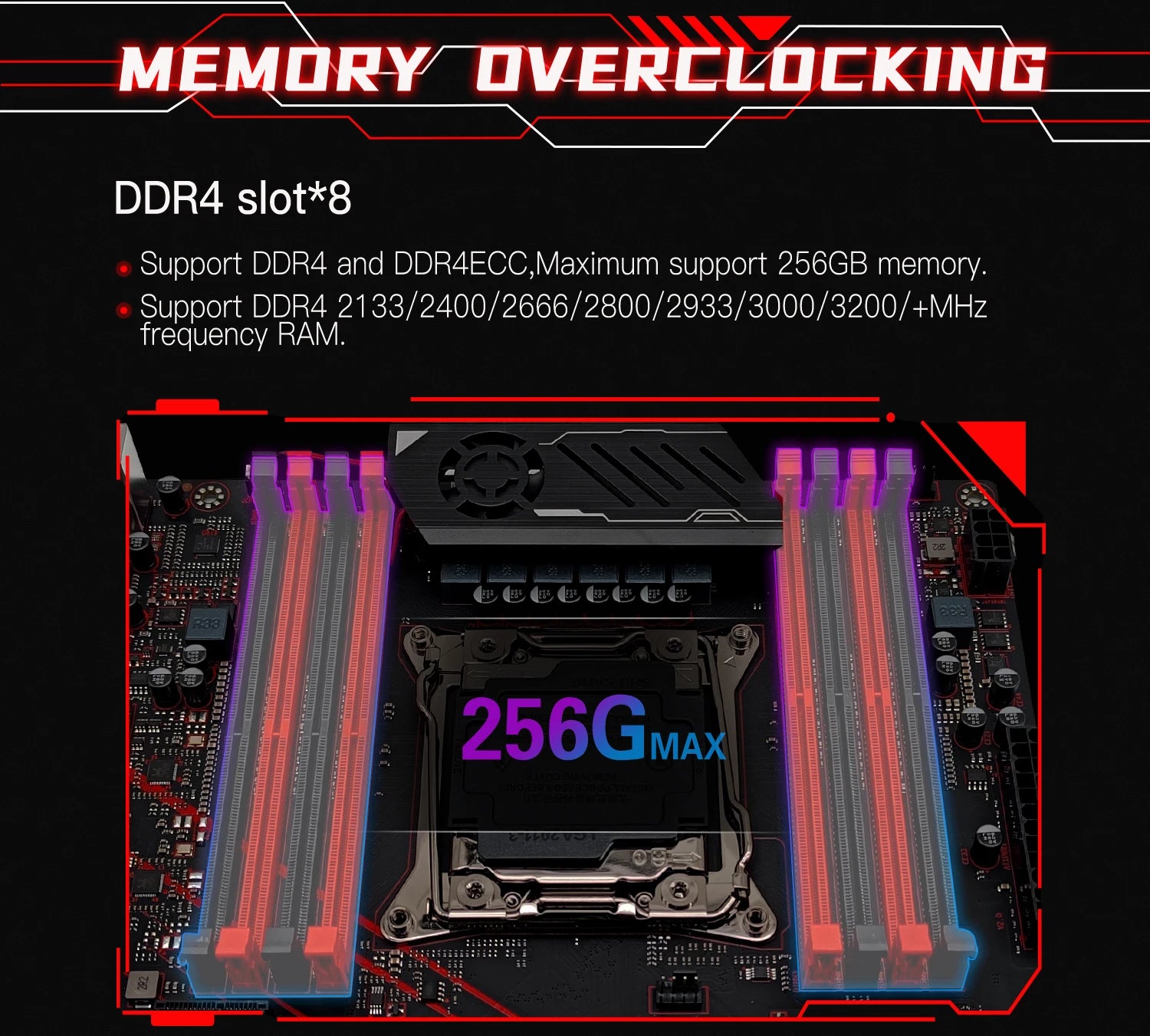

>> Memory:

Technology: Four-channel DDR4. Supports 2133/2666/3200 MHZ.

The maximum capacity is 256GB (32G x 8).

Memory slot: 2* 288-pin DDR4.

Supported memory types: Supports DDR4 desktop memory and ECC memory.

Please use international brands such as Samsung, Kingston, Sandee, Micron, and Hynix. Other brands may not be compatible.



>> Other parameters:

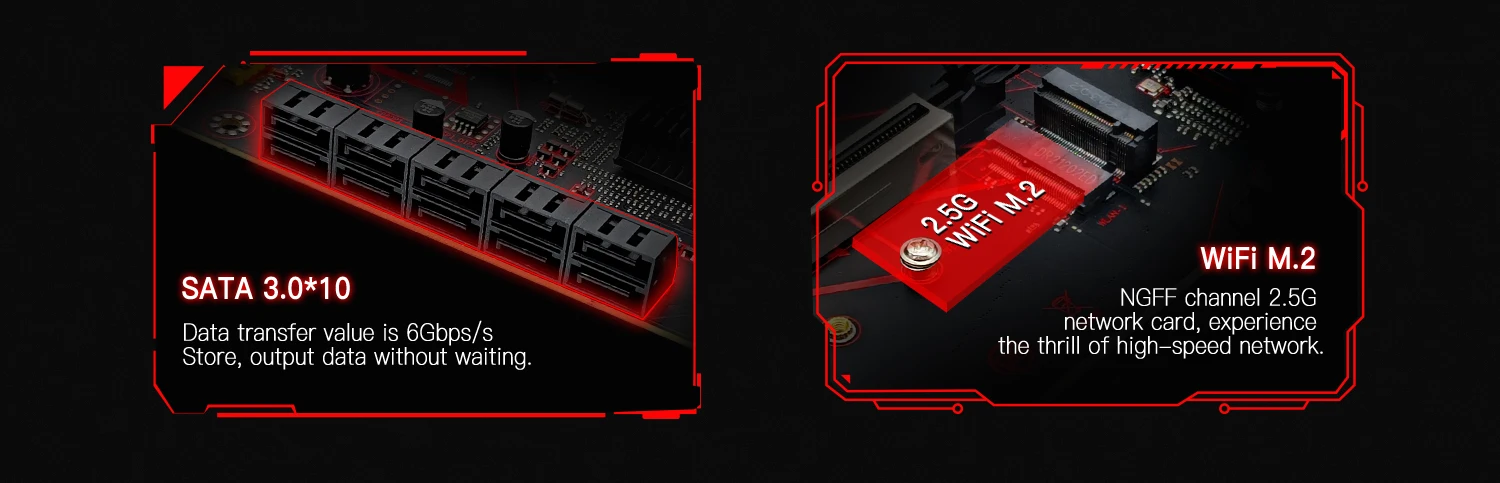

SATA 3.0 *10.

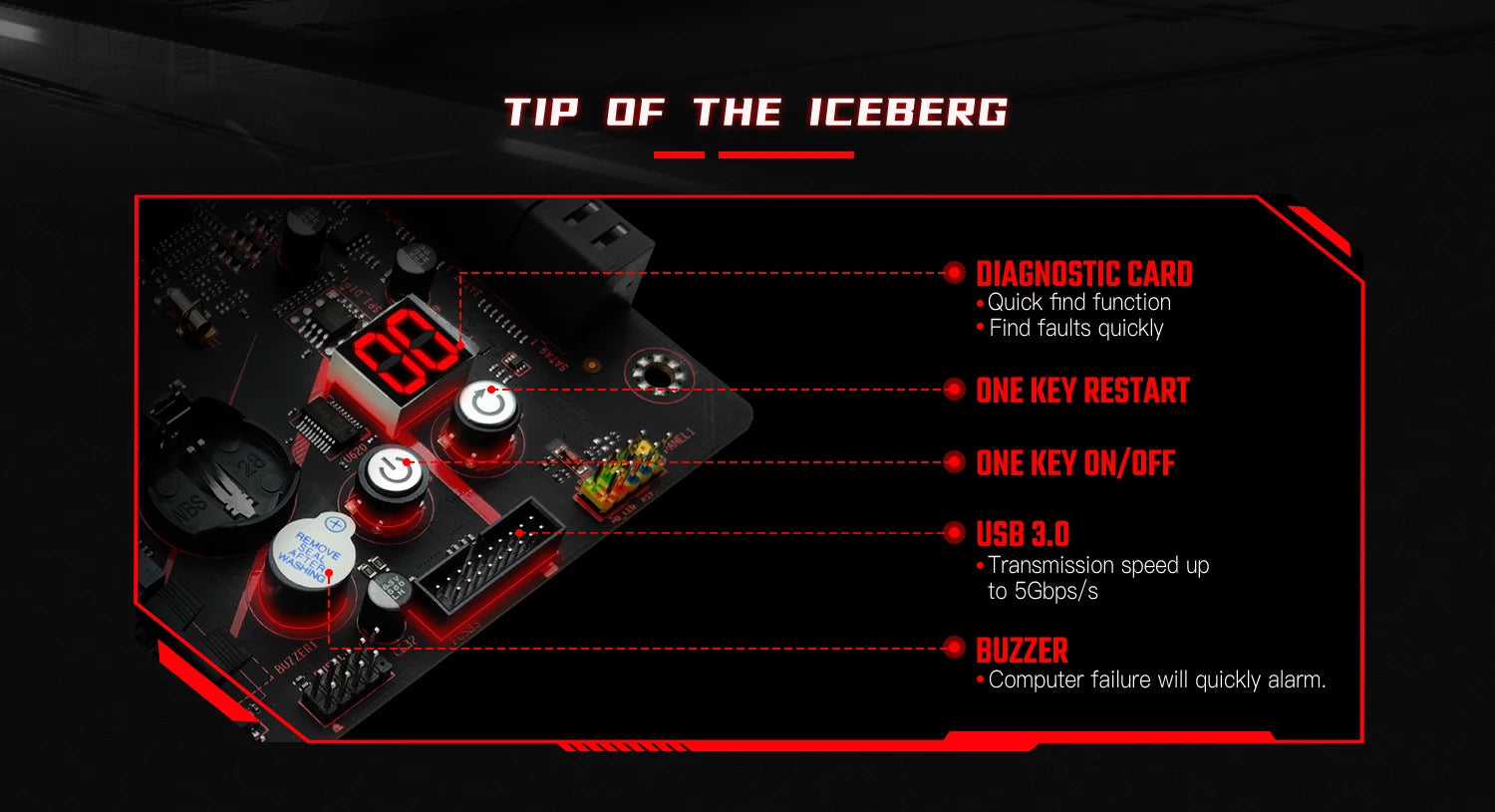

Diagnosis Card *1

Buzzer *1

USB3.0 *4, USB2.0*4.

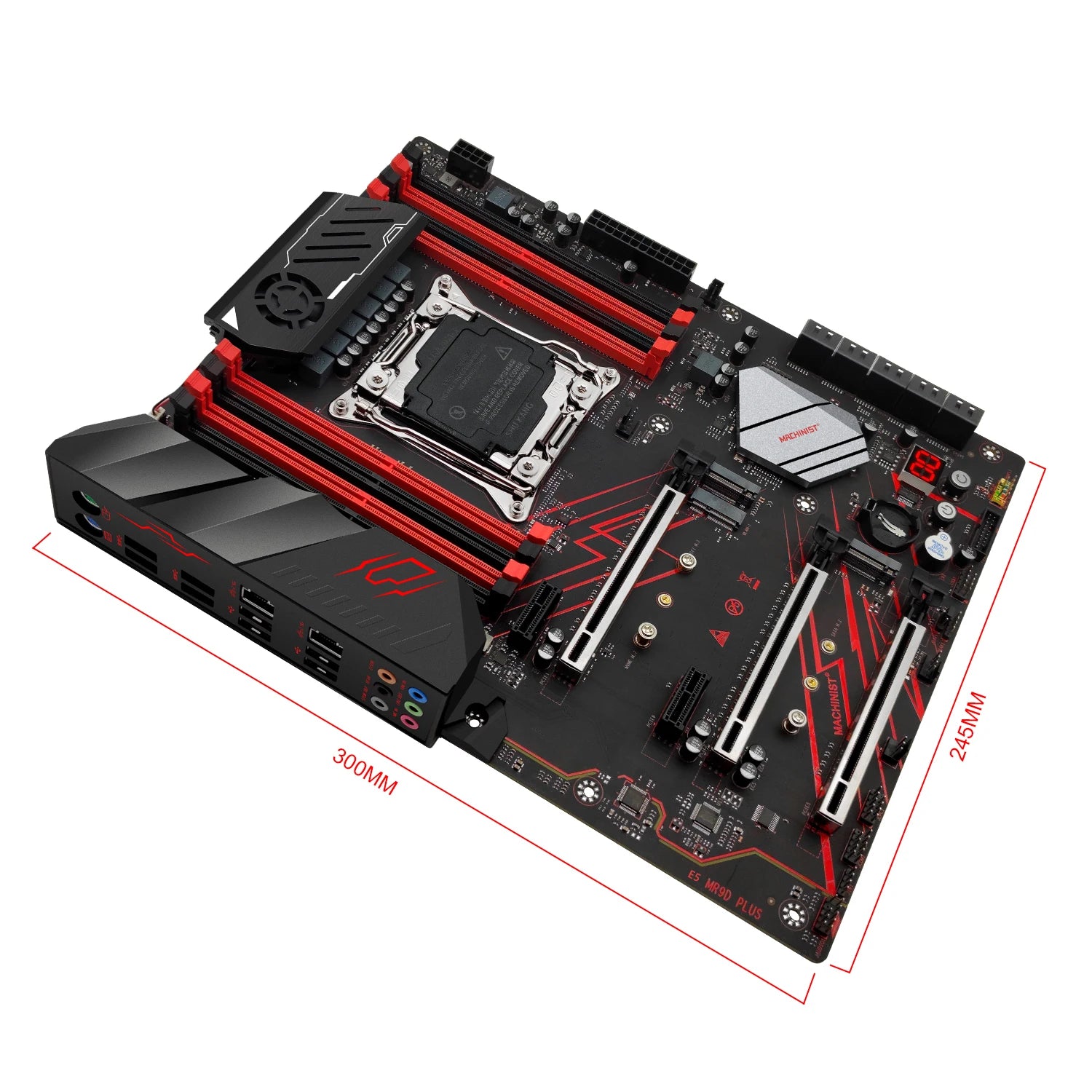

Size: 305mm*245mm.

Motherboard weight (including packaging) : approximately 1.45 kilograms.



>> Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.
>> Note:

The color of the bottom plate of the tank may vary by batch, but it will not affect the use of the product. The product is constantly being optimized and upgraded.

(2) Due to manual measurement, an error of 1-3mm is allowed.

(3) Due to different displays and different lighting conditions, the picture may not show the actual color of the object. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply)
