X99 Motherboard :

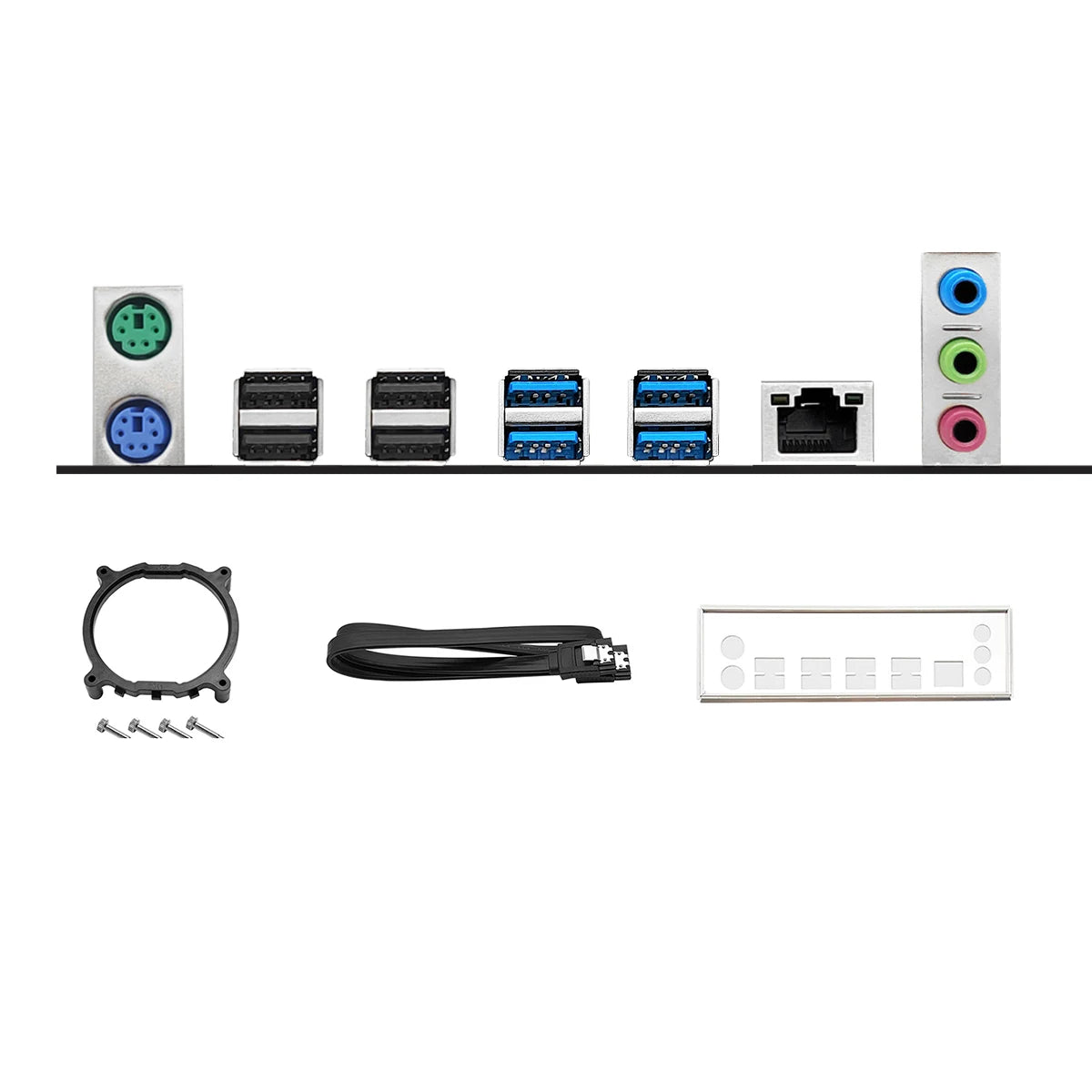

Package Contents:
1 * X99 B9 Motherboard (X99 LGA 2011-3)
1 * CPU Heatsink Bracket
1 * I/O Shield
1 * SATA Data Cable

Important! - There is no user manual or driver included in the box, but PDF versions are available. If you require them, please let us know and we can email them to you. If you are not satisfied with them, please do not purchase. Thank you for your understanding and time.

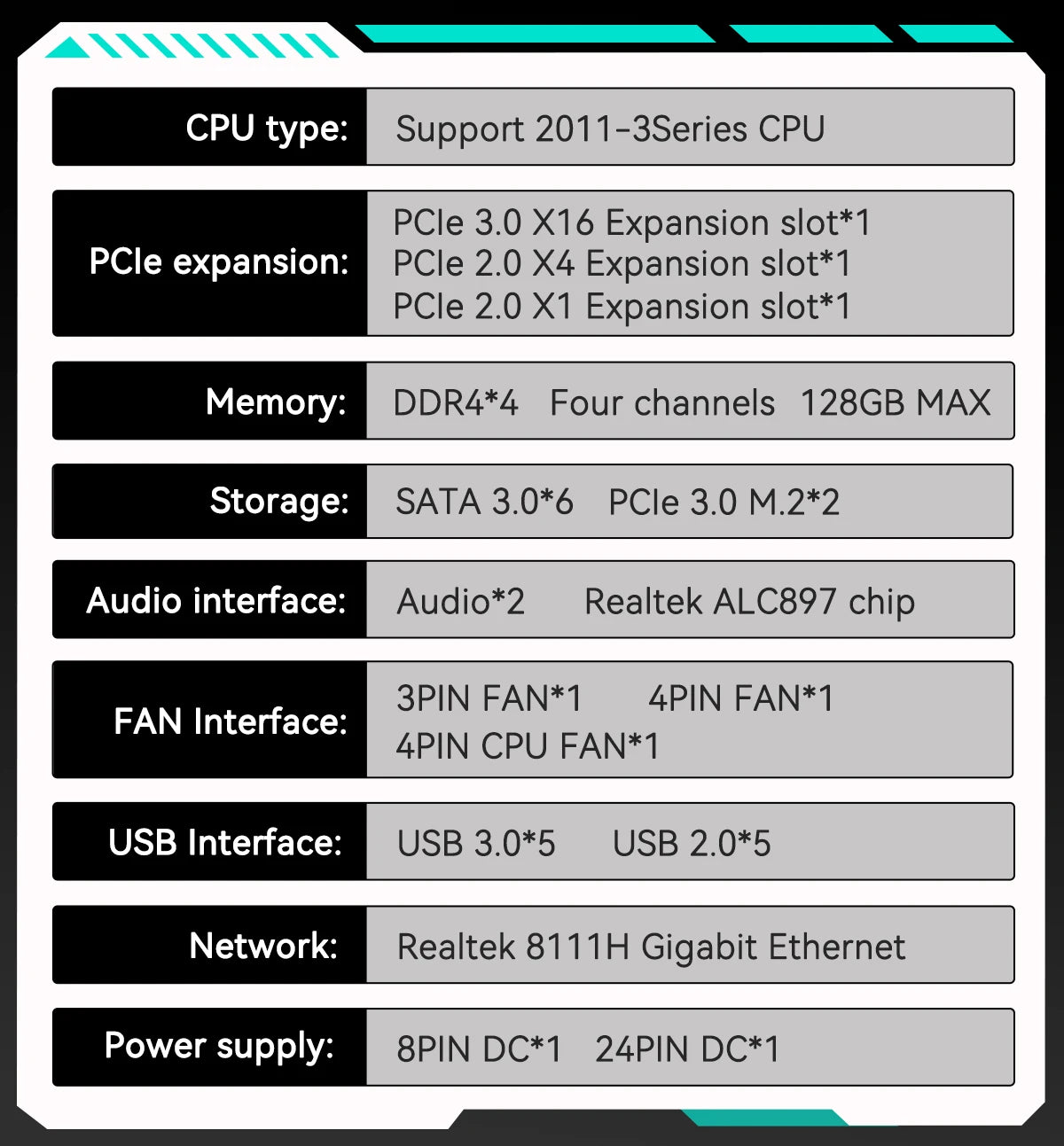

X99 B9 Motherboard Specifications:

Brand: MACHINIST
CPU Model: LGA 2011-3
Chipset: Intel C612
Supported CPUs: Supports Intel LGA 2011-3 sockets, such as the Intel Xeon e5-xxxx-v3, e5-xxxx-v4, and the Intel Core i7-6800K.

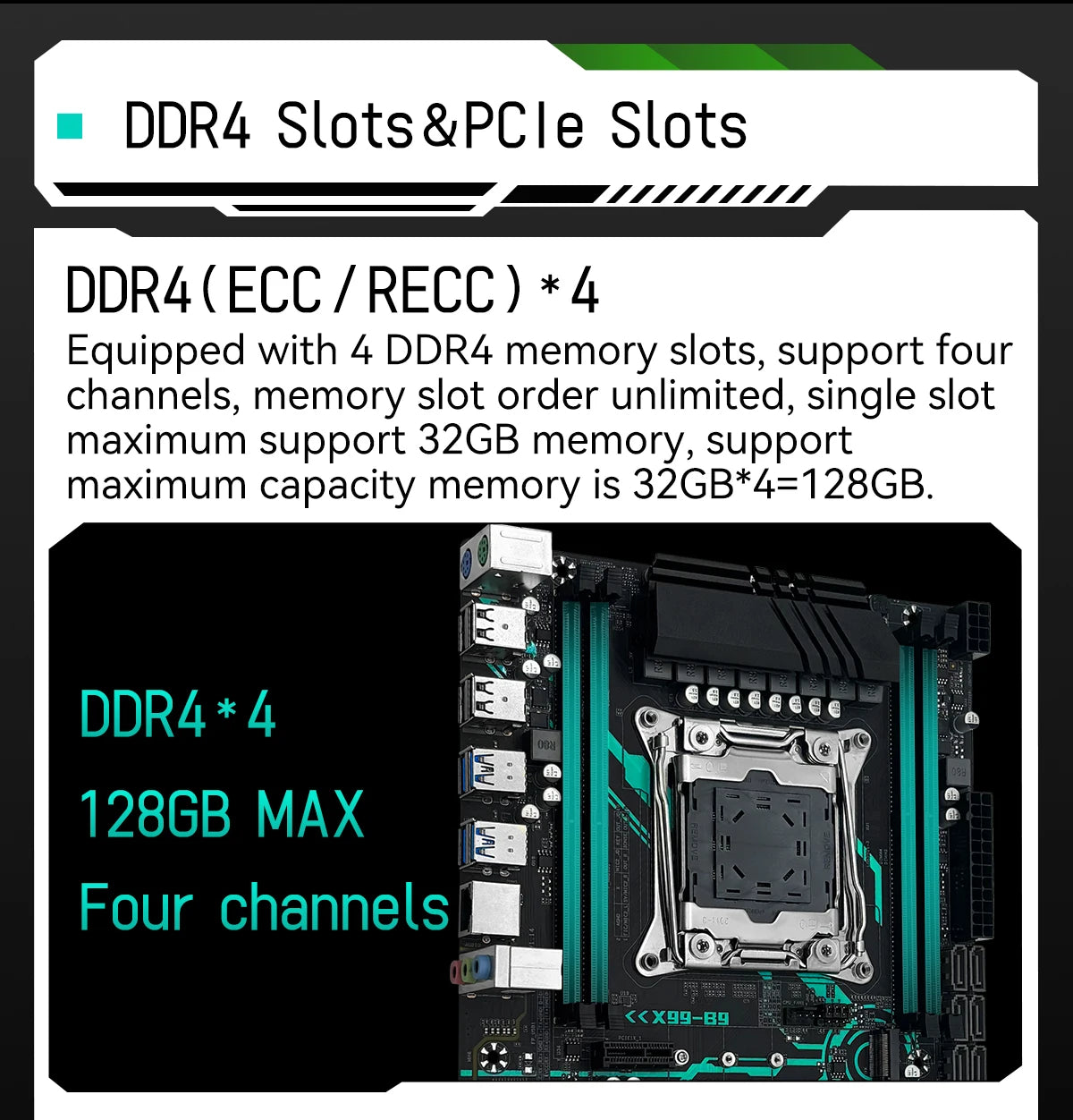

Memory Type: DDR4 DIMM, supports desktop-grade DDR4 and server-grade DDR4 (ECC, RECC), quad-channel, supports up to 32GB of memory per slot, and a maximum memory capacity of 128GB (32GB x 4), with a maximum frequency of 2400MHz (depending on the CPU).

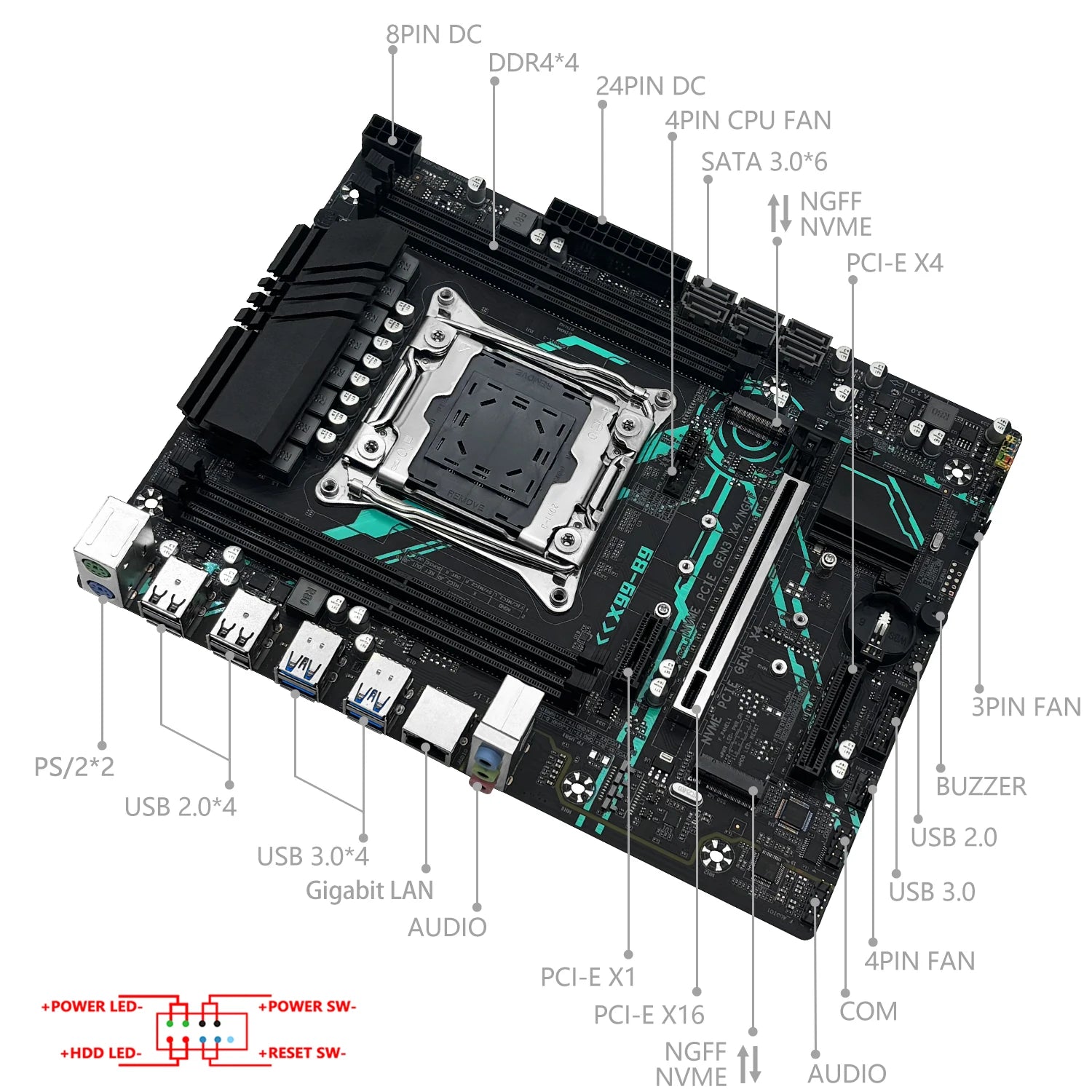

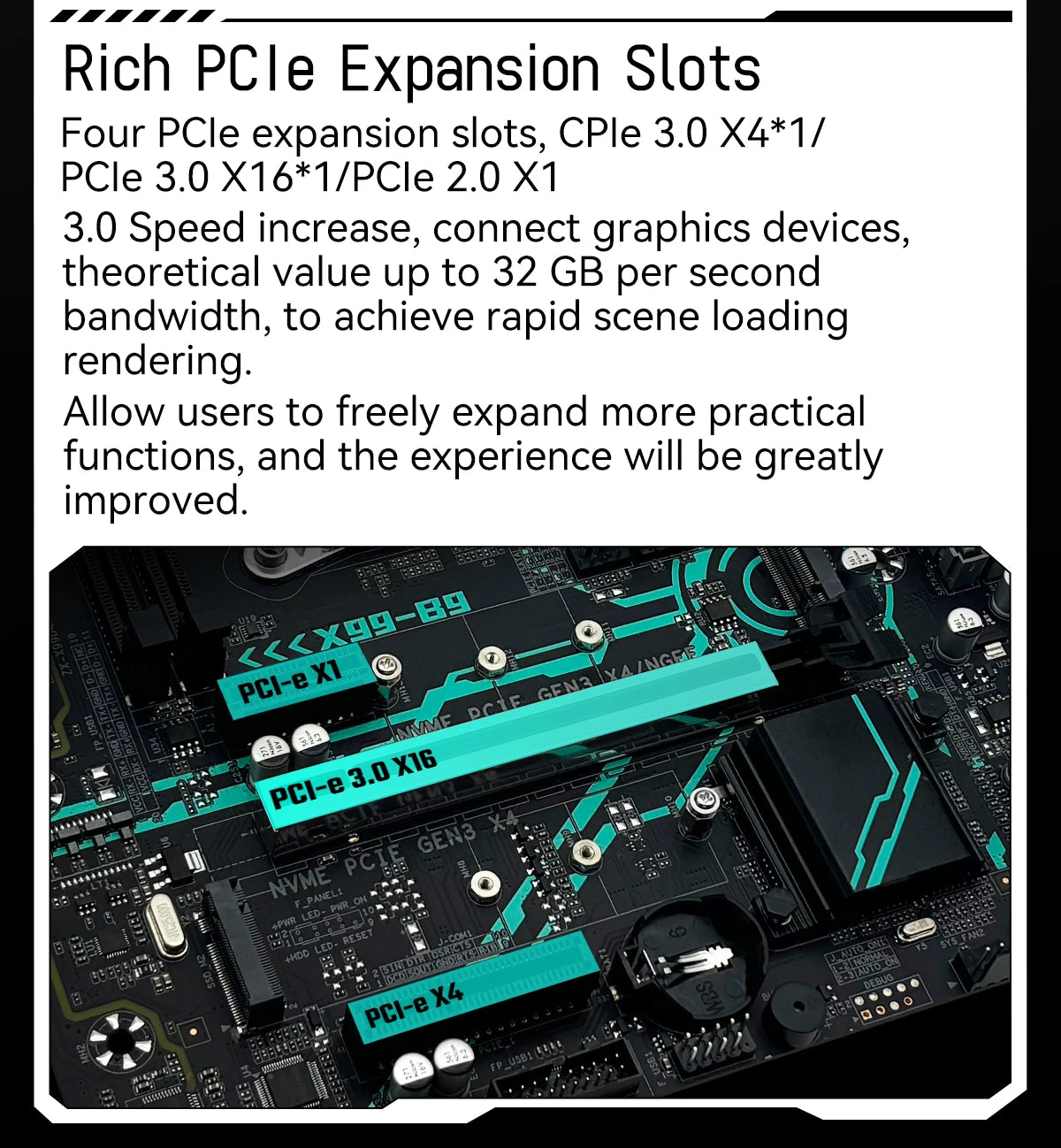

Expansion Slots: 1* PCI-E 3.0 x16, 1* PCI-E 2.0 x4, 1* PCI-E 2.0 x1
Storage: Supports M.2 SSDs, SATA 2.5-inch/3.5-inch SSDs, and mechanical hard drives.

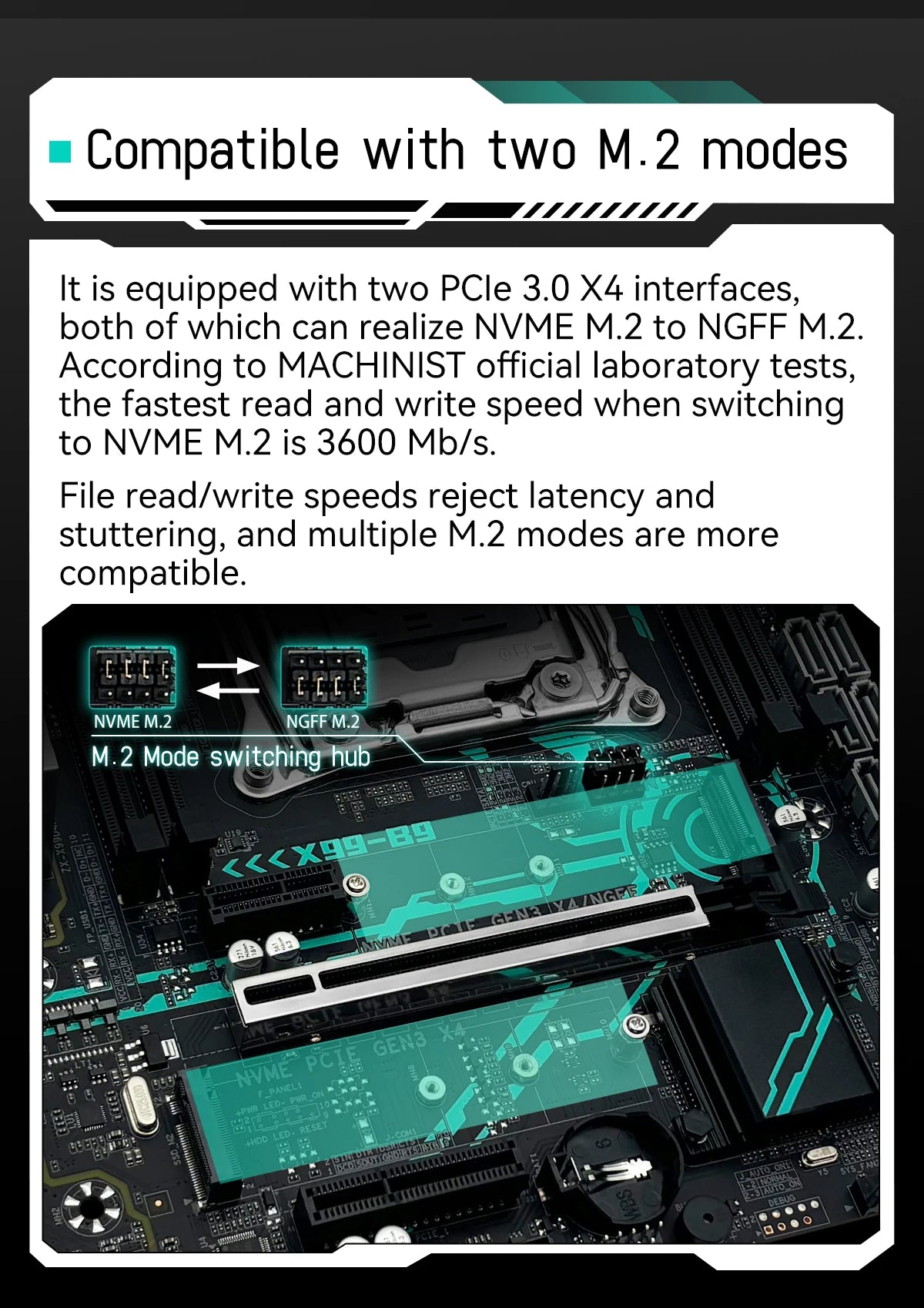

Supports SATA (NGFF)/PCI-e (NVMe) protocol switching, with NVMe M.2 mode set to default.
NVMe M.2 mode complies with the PCIe 3.0 x4 standard, with a maximum read and write speed of 3600M/s.
Sound Card: Realtek ALC897 High-Definition Sound Card
Network Card: Realtek 8111H Gigabit Network Card

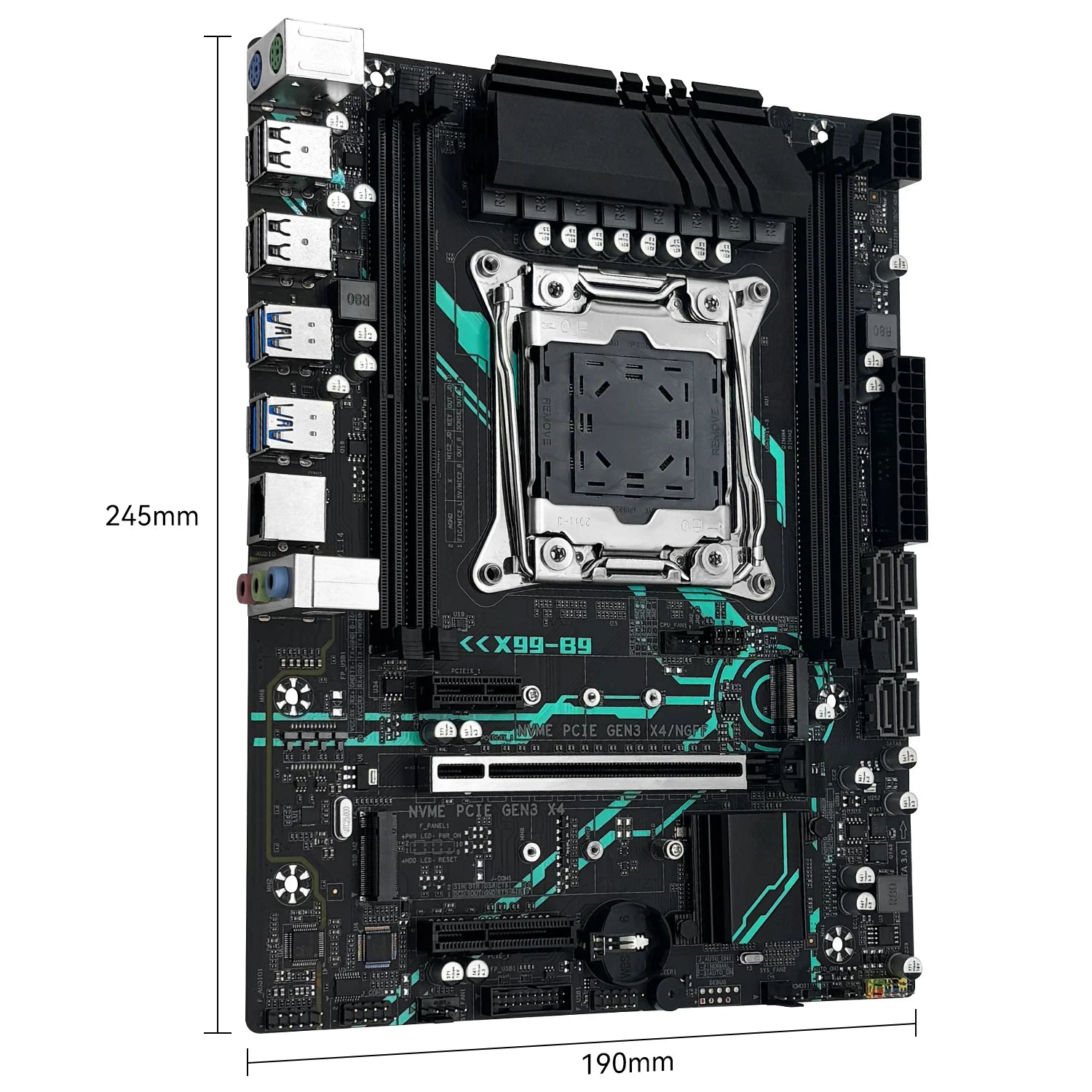

Dimensions: 245*190*35mm, M-ATX case
Power-on shortcut: F11
Entering BIOS: Press the power button and hold down the DEL key until the BIOS interface appears.

BIOS Features:
Diskless Boot: Supported
Hibernation: Not Supported
Decoding for 4GB and above: Supported
Virtualization (VT-D): Supported
Resizing BAR Decoding: Supported
AC Power Loss Recovery: Supported
RAID: Supports RAID 0, RAID 1, and RAID 5
Booting Without a Graphics Card: Supported
Memory Timing Modification (XMP): Not Supported
Fan Speed Modification: Supports CPU_FAN1 port only

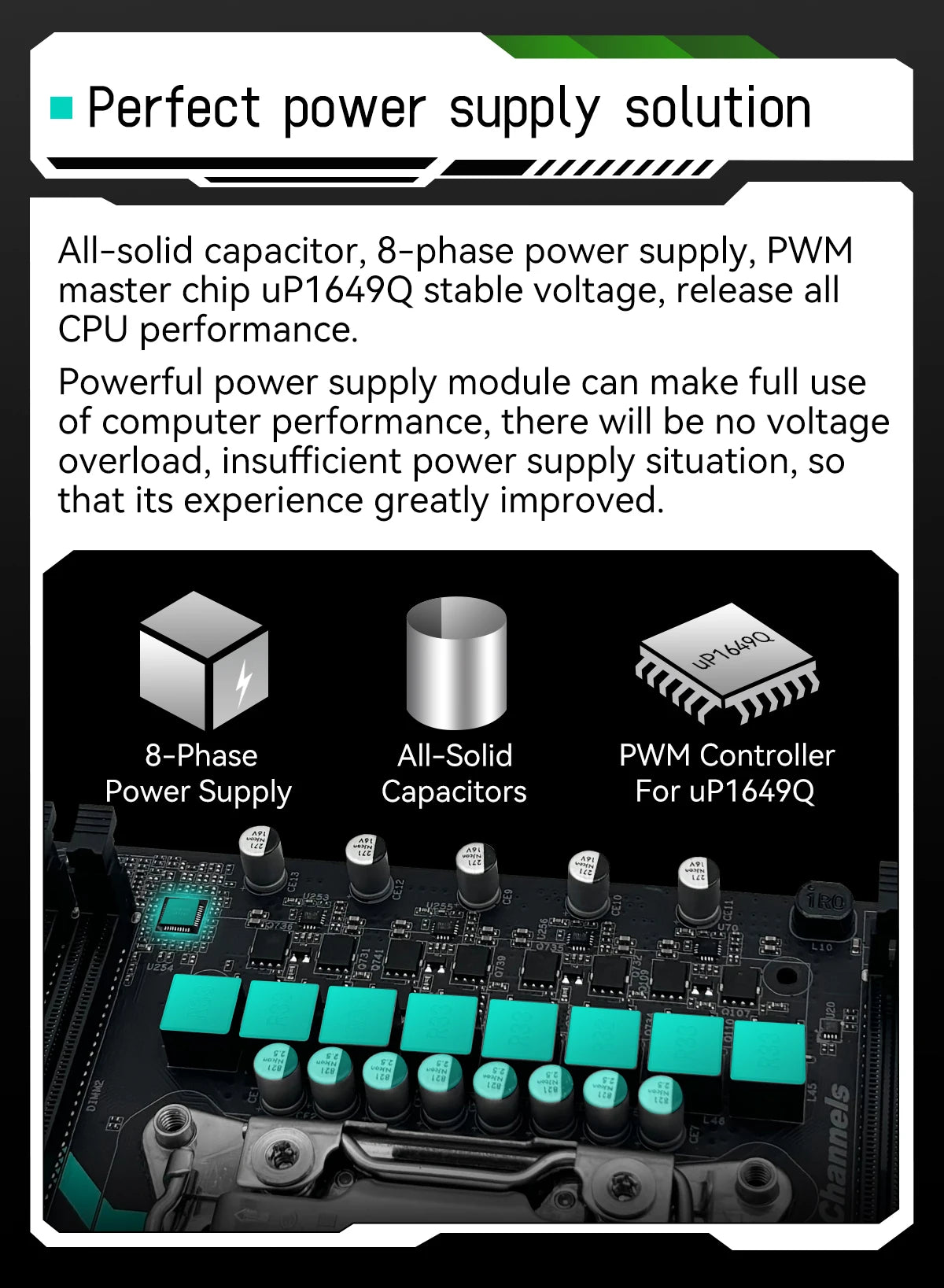

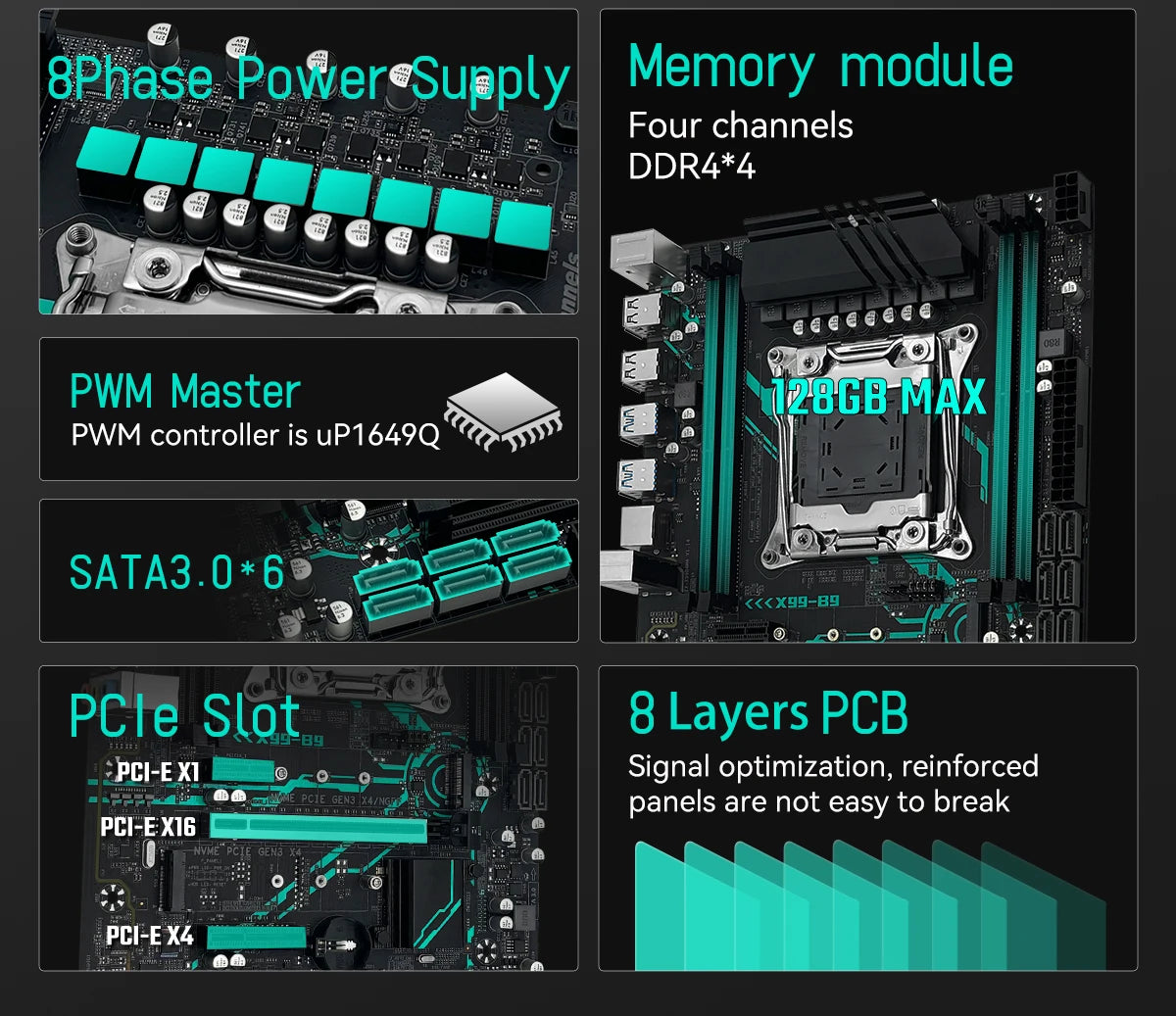

Power Supply: 8-phase power supply (4x frequency), uP1649Q PWM controller, one MOSFET per phase, one on top and one on the bottom, for a total of 16 MOSFETs!

CPU and System Fans:
CPU_FAN1: Supports intelligent thermal control. High CPU temperatures increase fan speed, low CPU temperatures decrease fan speed.
SYS_FAN1: Thermal control is not supported, fan speed will be full.
SYS_FAN2: Thermal control is not supported, fan speed will be full.

J_AUTO_ON1 Jumper:
This jumper is used to recover from an AC power loss. The default setting is OFF. If you flip the jumper cap two pins to the right and turn it to "ON," the motherboard will automatically boot up after powering on.

How to clear the CMOS:
Turn off the power. Use tweezers or another conductive metal object to short the 2-pin JCMOS1 jumper for 3-5 seconds.

Notes:

1: The color of the socket baseplate may vary from batch to batch, but this does not affect the product. We are continuously optimizing and upgrading our products.
2: Due to manual measurement, please allow 1-3 mm error.
3: Due to differences in monitors and lighting, the image may not reflect the actual color of the item. Thank you for your understanding. 4: This floor plan requires a strong power supply. Please make sure your power supply is sufficient to meet the needs of this scenario. (At least 500W brand power supply)
