MACHINIST X99 K9 Motherboard C612 Chip Supports TPM 2.0 LGA 2011-3 CPU Four Channel DDR4 RAM PCIE3.0 USB3.0 for Desktop Host
MACHINIST X99 K9 Motherboard C612 Chip Supports TPM 2.0 LGA 2011-3 CPU Four Channel DDR4 RAM PCIE3.0 USB3.0 for Desktop Host
SPECIFICATIONS
Application: Desktop
Back I/O Ports: 1x RJ45,WiFi,3 x Audio Jacks
Battery Included: No
Brand Name: MACHINIST
Certification: RoHS,CE
Chipset: C612
Chipset Manufacturer: Intel
Form Factor: Micro-ATX
High-concerned chemical: None
Max LAN Speed: 1000Mbps
Maximum Ram Capacity: 128 GB
Memory channel: Four
Number Of Memory Slots: 4
Number of M.2: 3
Number of PCI: 0
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of PCIe x 4: 0
Number of PCIe x 8: 0
Number of SATA Ports: 9
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),4-pin +12V Power Connector
Onboard LAN: 1x RJ45,WIFI (AC)
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Ports: USB 3.0
Processor compatibility: Intel Xeon
Quality Certification: ROHS,CB
RAID Supported: No
SATA RAID: 0
Socket Type: LGA 2011-3
Special Features: NONE
Storage Interface Type: SATA 3,M.2 (NVMe)
Support Memory Type: DDR4
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2280
Usage Scenario: Gaming,Audio & Video,Office,Video Production,Workstation,Server
With CPU: No
>> Due to the continuous update of product batches, new and old packaging boxes will be sent randomly. The appearance and content parameters of the packaging boxes are for reference only!
>> This link sends the latest version that supports TPM 2.0.
> > Motherboard information:
Brand :MACHINIST.

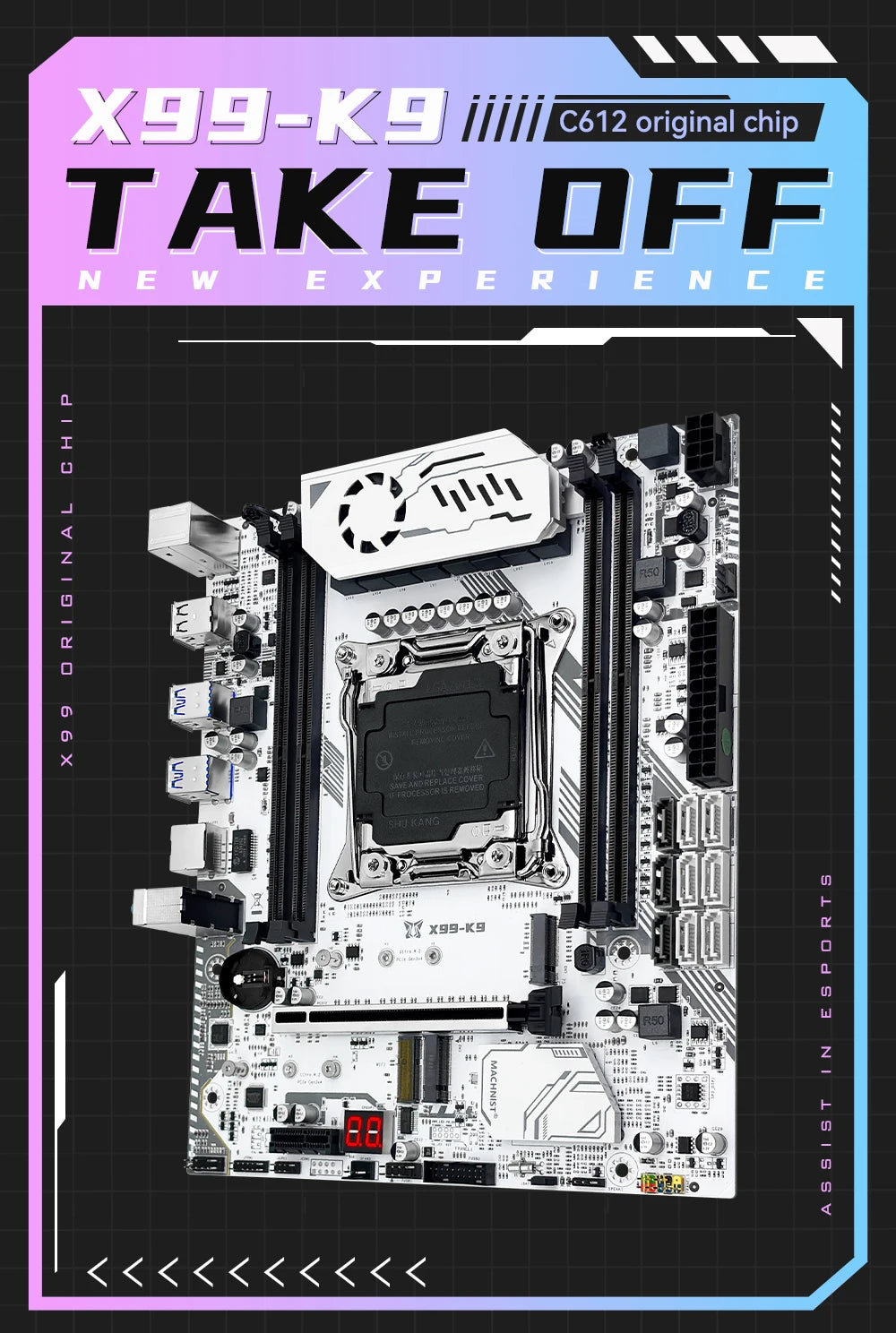

Motherboard model :X99 K9(tpm 2.0).
Processor: Supports Intel LGA 2011-3-pin series processors.
Chipset :X99/C612 Chipset.
Complimentary accessories: I/O shield *1, SATA cable *1, lga 2011 heat sink *1.
(All packages are manually tested before sending. If any gifts are missing, it cannot be used as a reason for a refund. Please understand!)"
> > Memory:

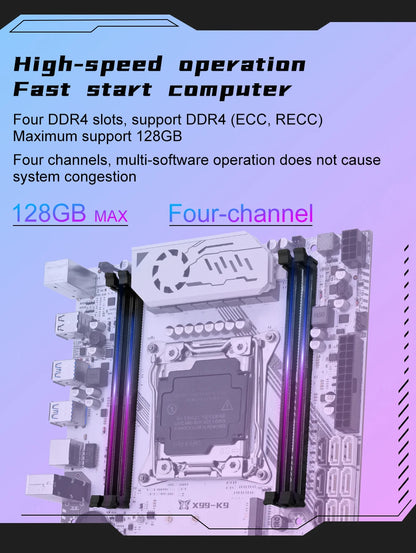

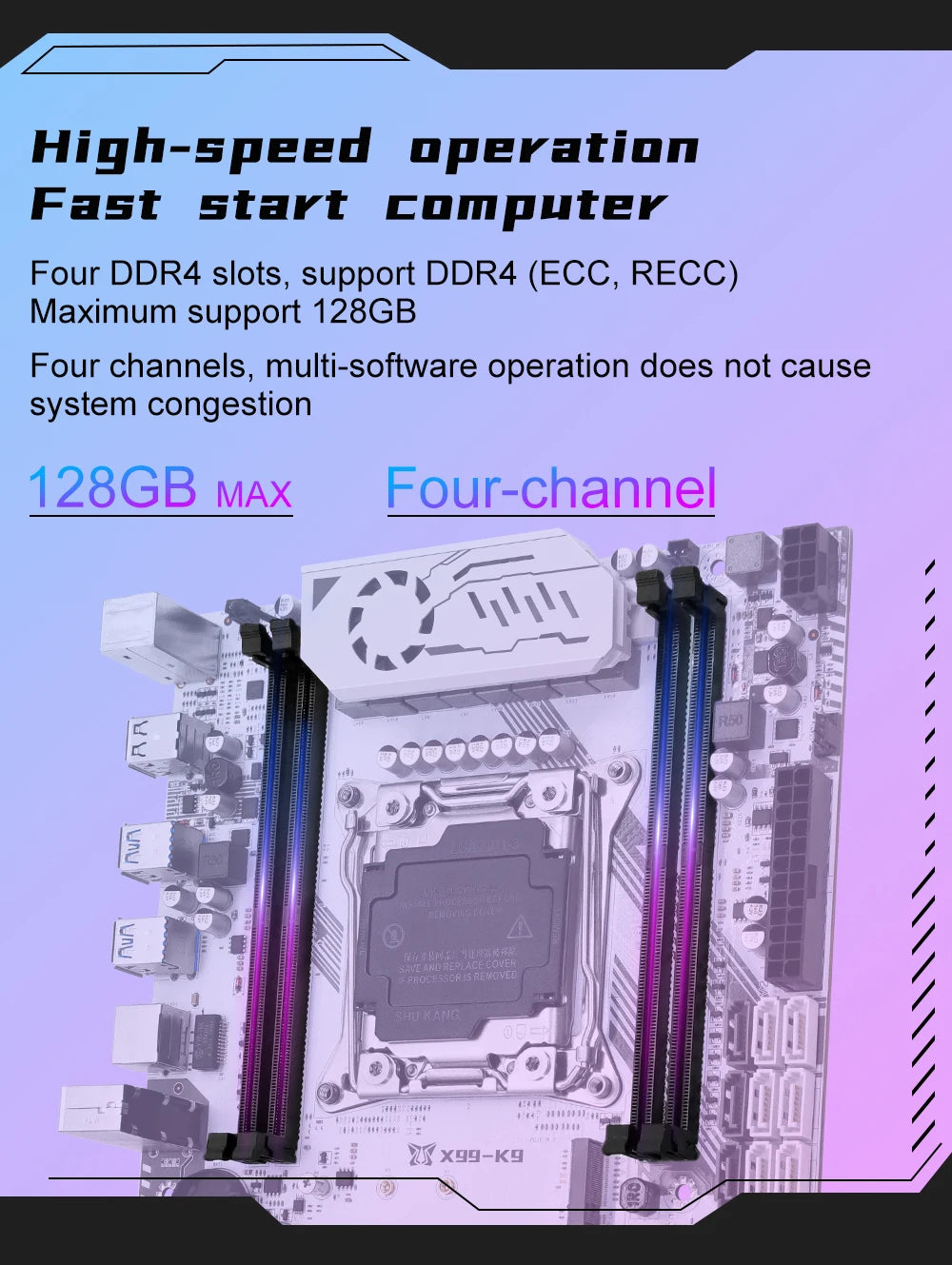

Technology: Four-channel DDR4. The maximum capacity is 128GB (32G x 4).
Memory slot :4 * DDR4.
Supported memory types: The memory type supports DDR4 desktop and server memory.
Please use international brands such as Samsung, Kingston, Sandisk, Micron, and Hynix. Incompatibility issues may exist with other brands.

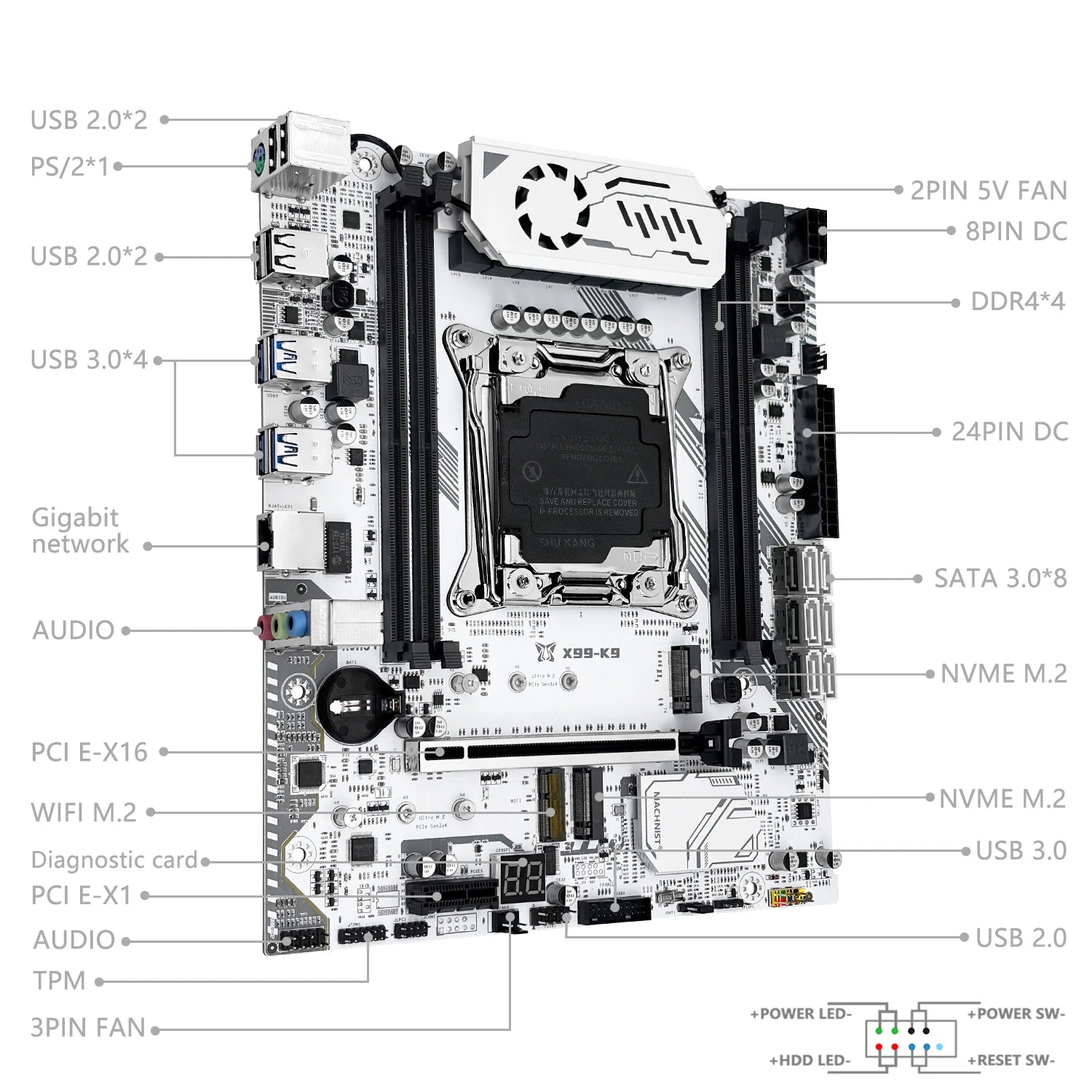

>> Others:

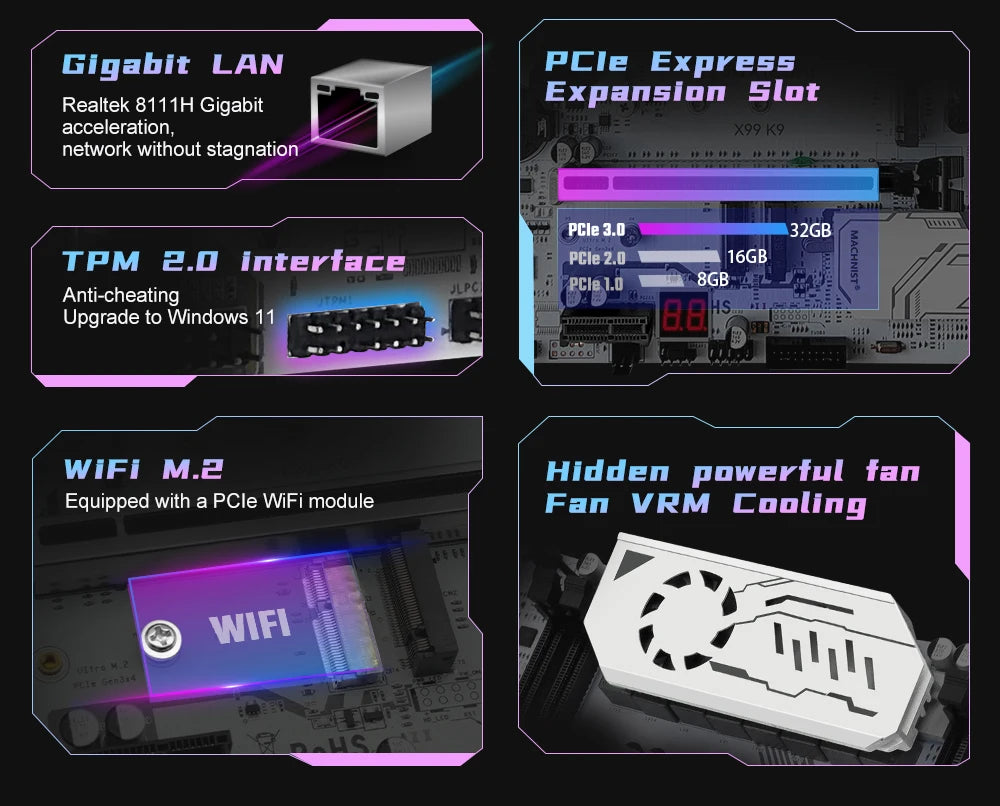

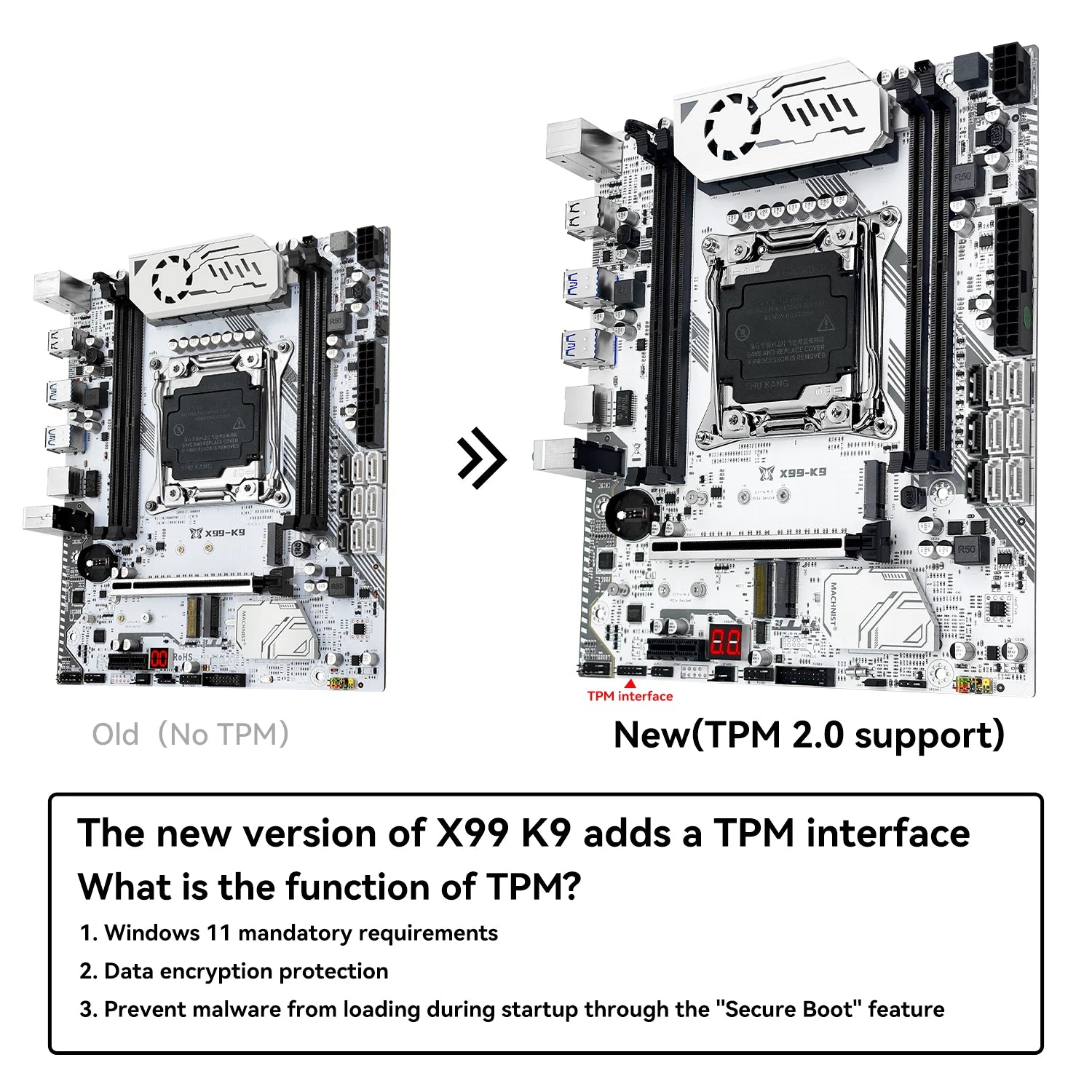

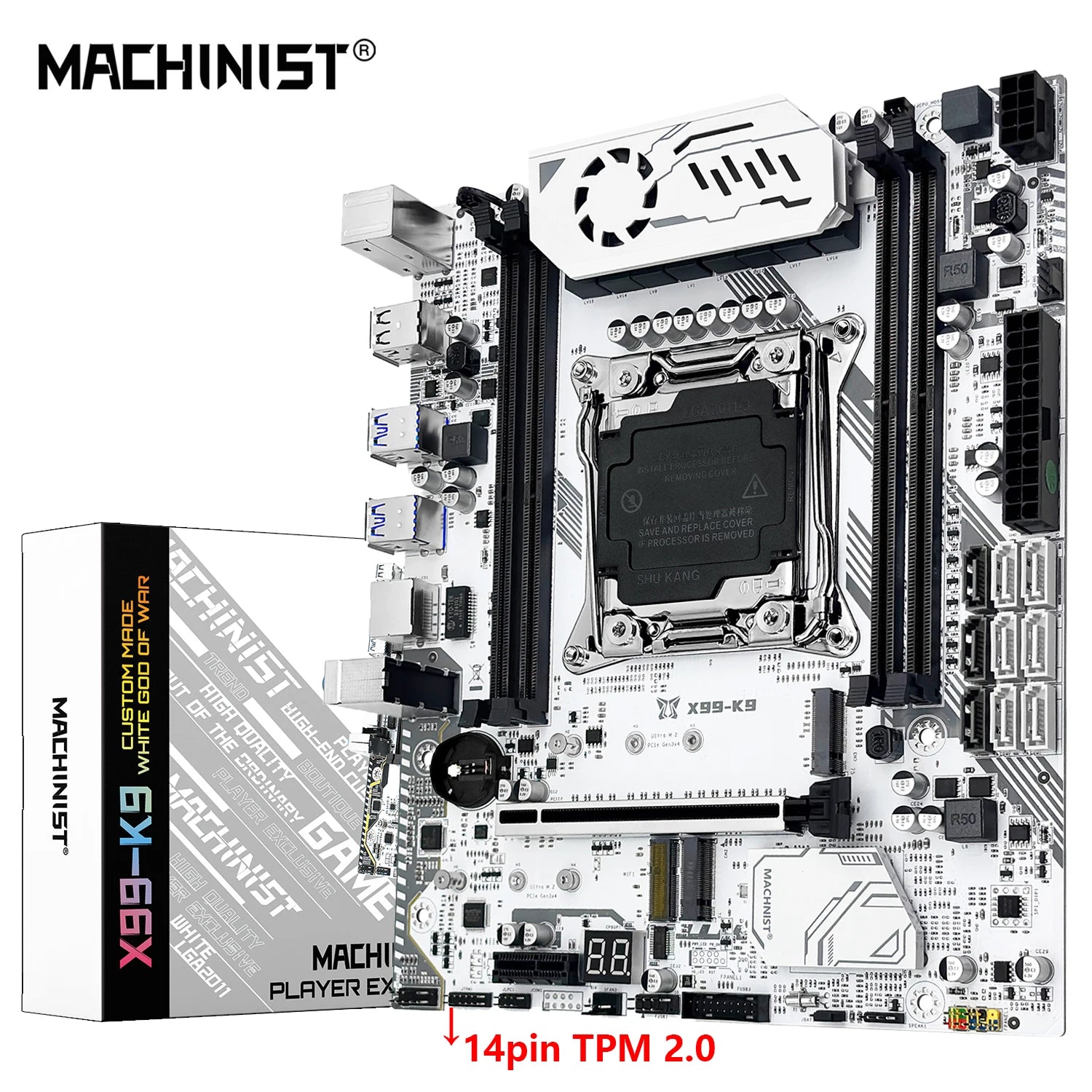

TPM2.0: Applicable to 14-pin interfaces;
PS/2: 1 2-in-1 interface;
Ethernet: Gigabit network card;
PCIe: 1*PCIe 3.0 16x, 1*PCIe 1x;

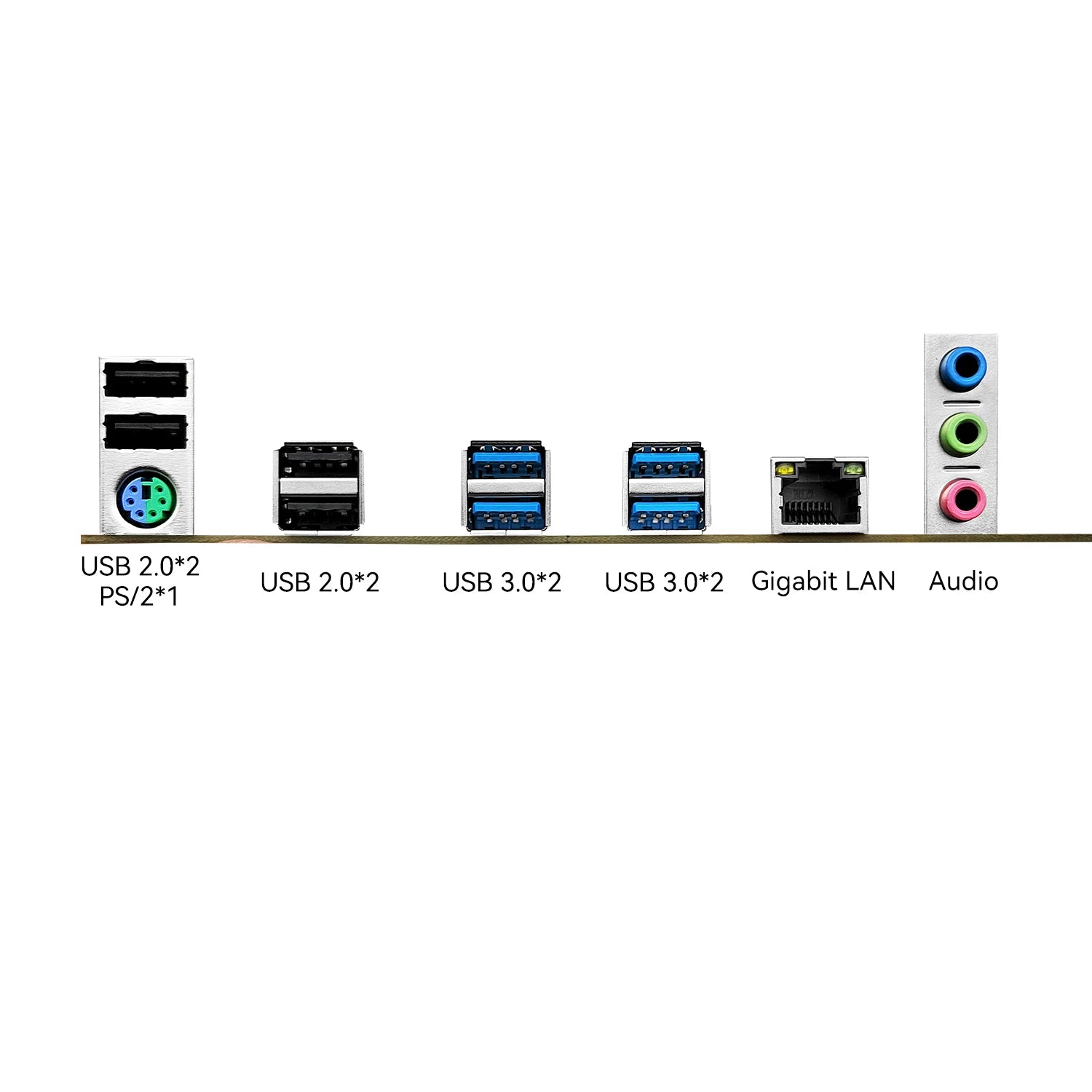

USB interface :4 USB2.0 ports; Four USB3.0 ports;
SATA ports: 9 (9 SATA3.0);
M.2 interface: 2 NVME M.2 interfaces. One NGFF M.2 WIFI card interface.

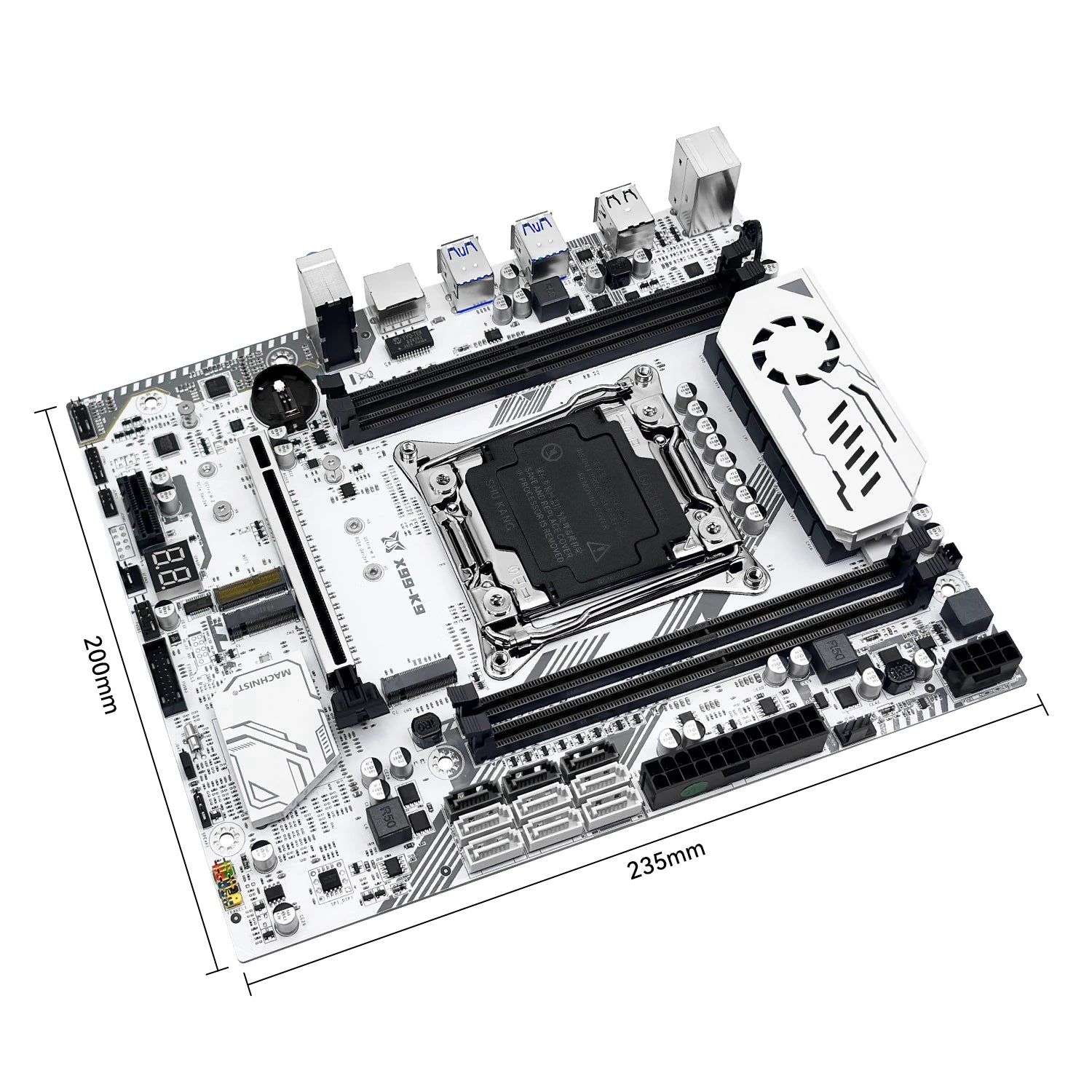

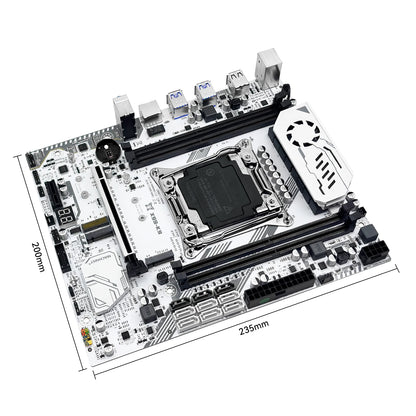

Overall dimensions :235mm * 200mm.
Motherboard weight (including packaging) : approximately 0.92 kilograms.
>> Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.
>> Note:
(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1 to 3mm.
(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.
(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply
(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
