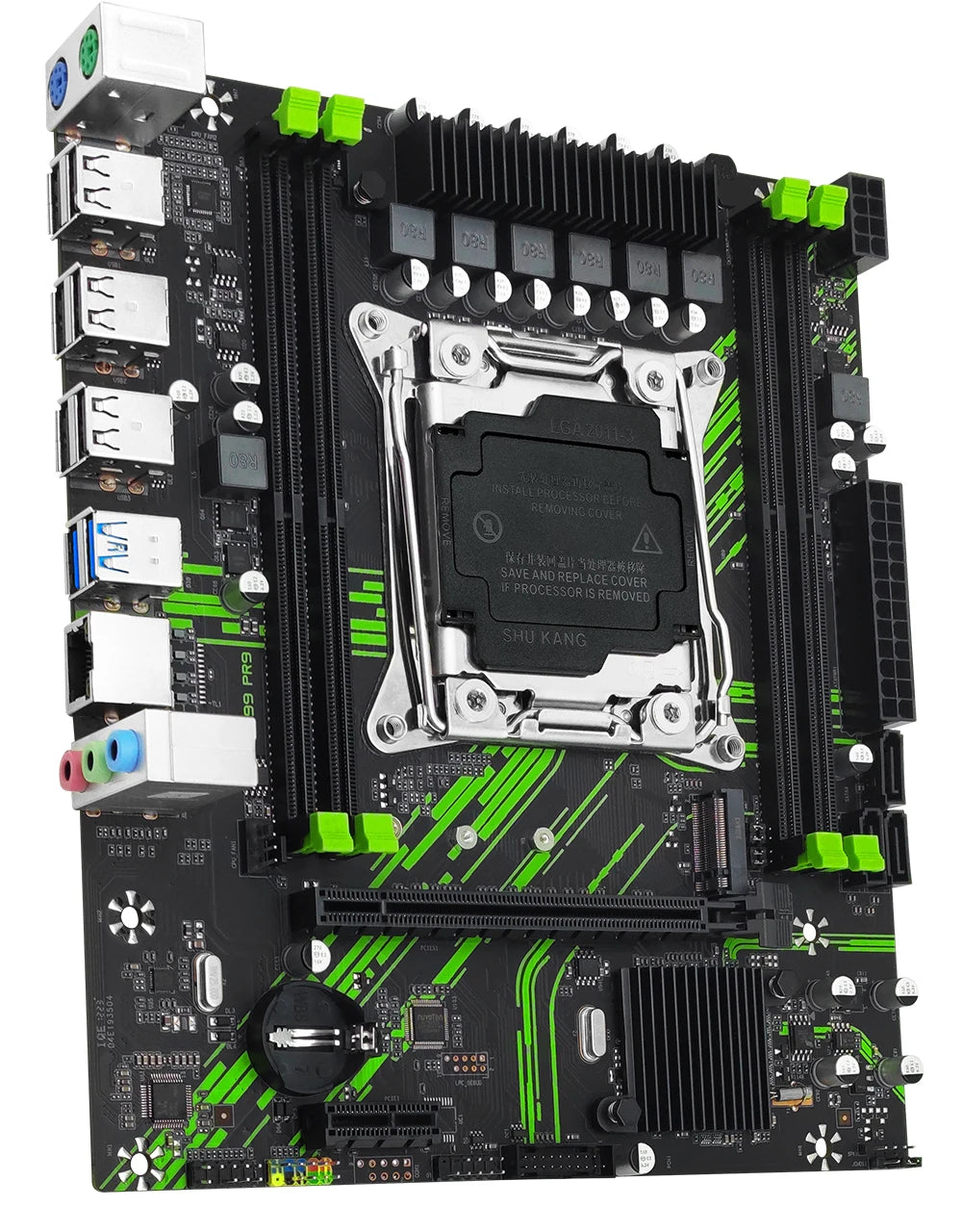

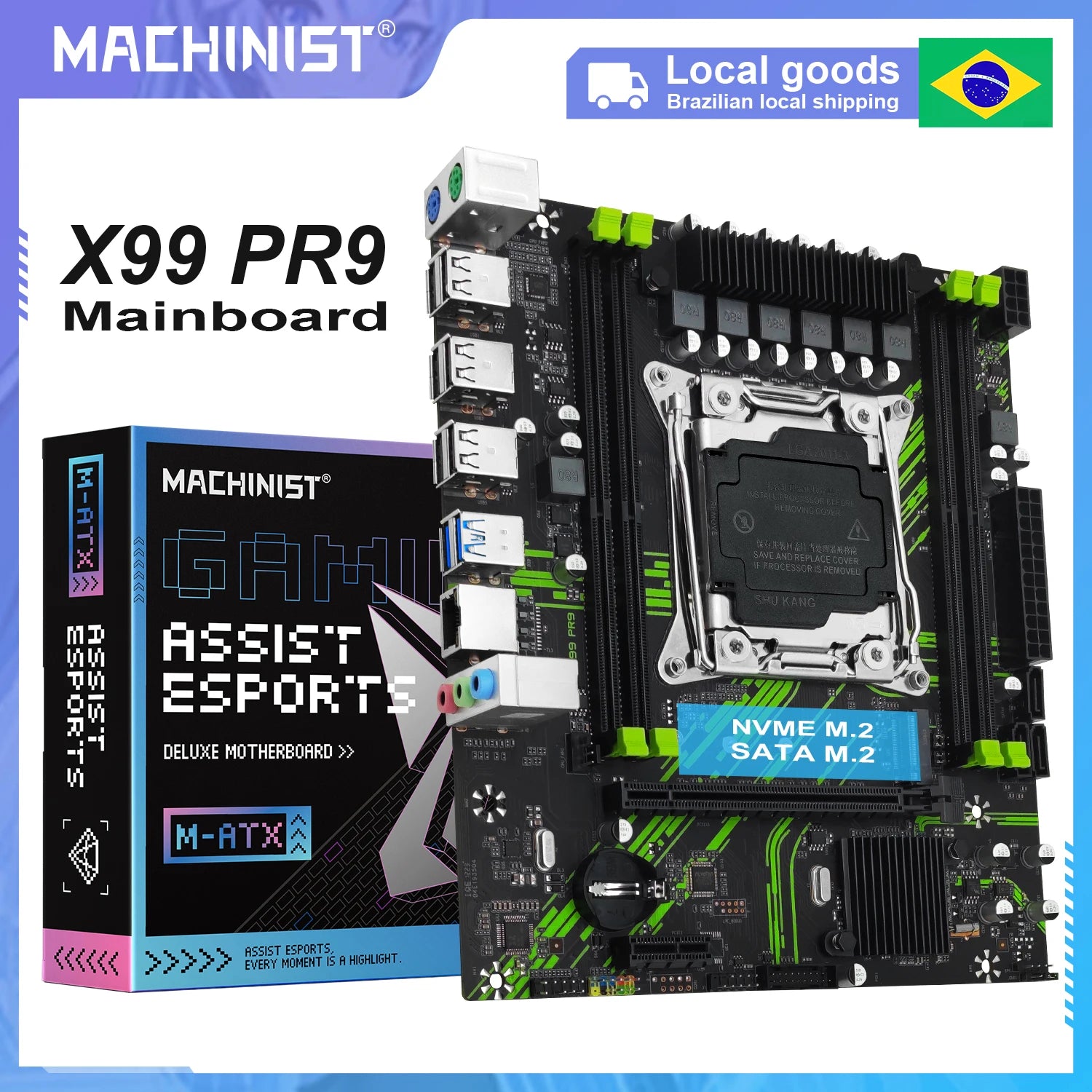

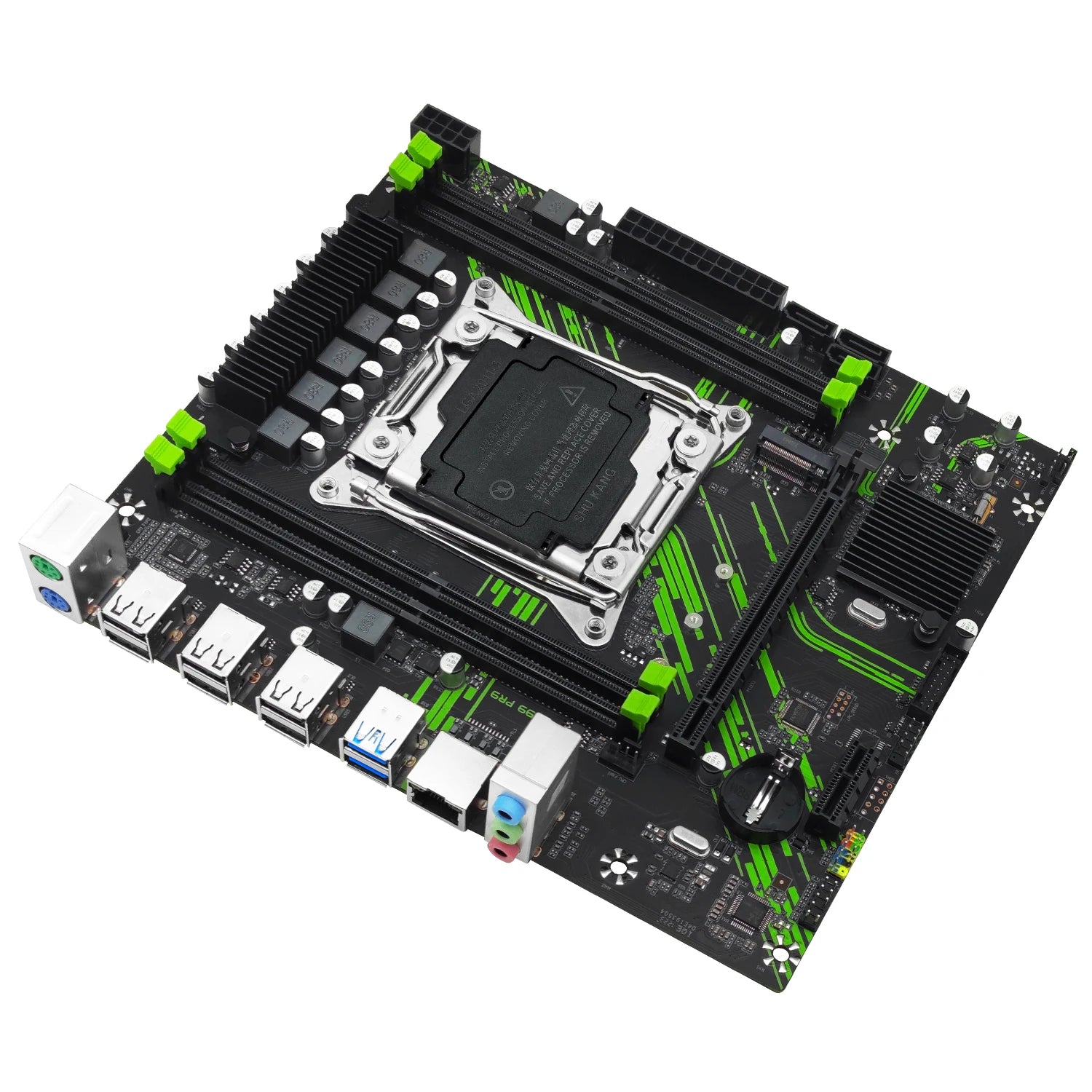

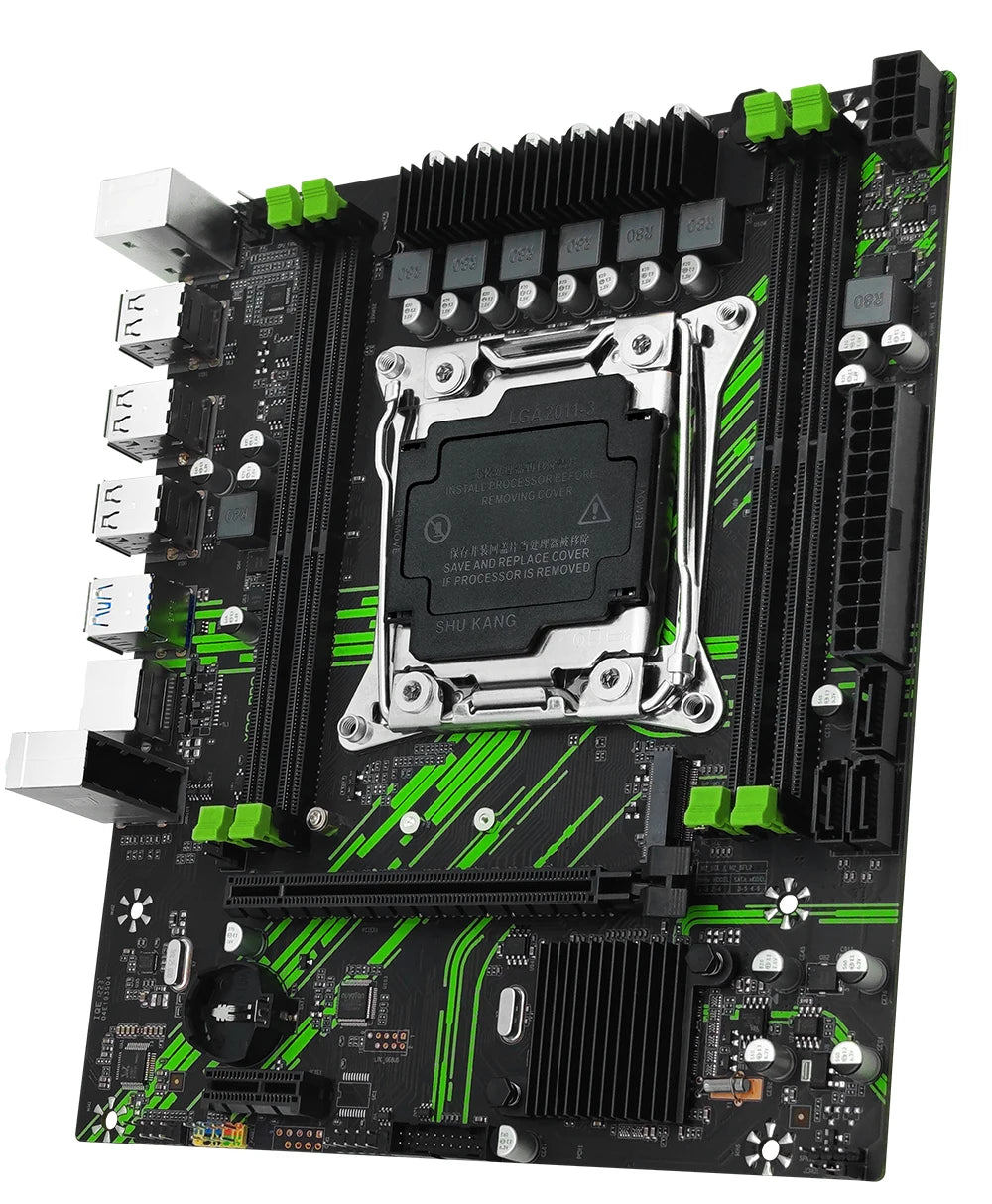

MACHINIST X99 PR9 Motherboard support LGA2011-3 intel Xeon E5 2650 2666 2670 v3/V4 CPU and DDR4 RAM Memory NVME M.2 SATA M-ATX
MACHINIST X99 PR9 Motherboard support LGA2011-3 intel Xeon E5 2650 2666 2670 v3/V4 CPU and DDR4 RAM Memory NVME M.2 SATA M-ATX
SPECIFICATIONS
Application: Desktop
Back I/O Ports: 3 x Audio Jacks,2x USB 3.2/3.1 Gen 1,PS/2
Battery Included: No
Brand Name: MACHINIST
Certification: RoHS,CE
Chipset: Intel B85
Chipset Manufacturer: Intel
Form Factor: CeB,Micro-ATX
High-concerned chemical: None
MACHINIST: X99
MACHINIST Model: X99-PR9
Max LAN Speed: 1000Mbps
Maximum Ram Capacity: 128 GB
Memory channel: Double
Motherboard: X99 Kit
Number Of Memory Slots: 4
Number of M.2: 1
Number of PCI: 2
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of PCIe x 8: 0
Number of SATA Ports: 2
Onboard Connectors & Header: 24-pin Main Power Connector,AAFP Connector,System Panel(s) (Chassis intrusion header is inbuilt)
Onboard LAN: 2x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Processor compatibility: Intel Xeon Scalable,Intel Core
Quality Certification: ce,ROHS
RAID Supported: No
Socket Type: LGA 2011-3
Special Features: NONE
Storage Interface Type: SATA 3,M.2 (NVMe)
Support Memory Type: DDR4 ECC
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2280
Usage Scenario: Gaming,Audio & Video,Office,Video Production,others
With CPU: No
X99 Motherboard :
• Powerful Intel Chipset :Equipped with the Intel B85 chipset, this motherboard ensures high performance and stability, making it perfect for office use.
• Versatile Storage Options :Featuring M.2 (NVMe) and SATA/NVME M.2 slot, it offers flexible storage solutions to meet your data processing needs.
• High RAM Capacity :With a maximum RAM capacity of 128 GB, this motherboard can accommodate large amounts of memory, enhancing the speed and efficiency of your computer.
• USB 3.0 Support :Supports USB Type 3.0, providing fast and efficient data transfer between devices.
• ROHS Certified :This product is ROHS certified, ensuring it meets high standards of environmental friendliness and safety.
• Desktop Application :Designed for desktop use, this motherboard is ideal for both home and office environments.
Package contains:
Motherboard: MACHINIST X99 PR9 2011-3 motherboard *1.

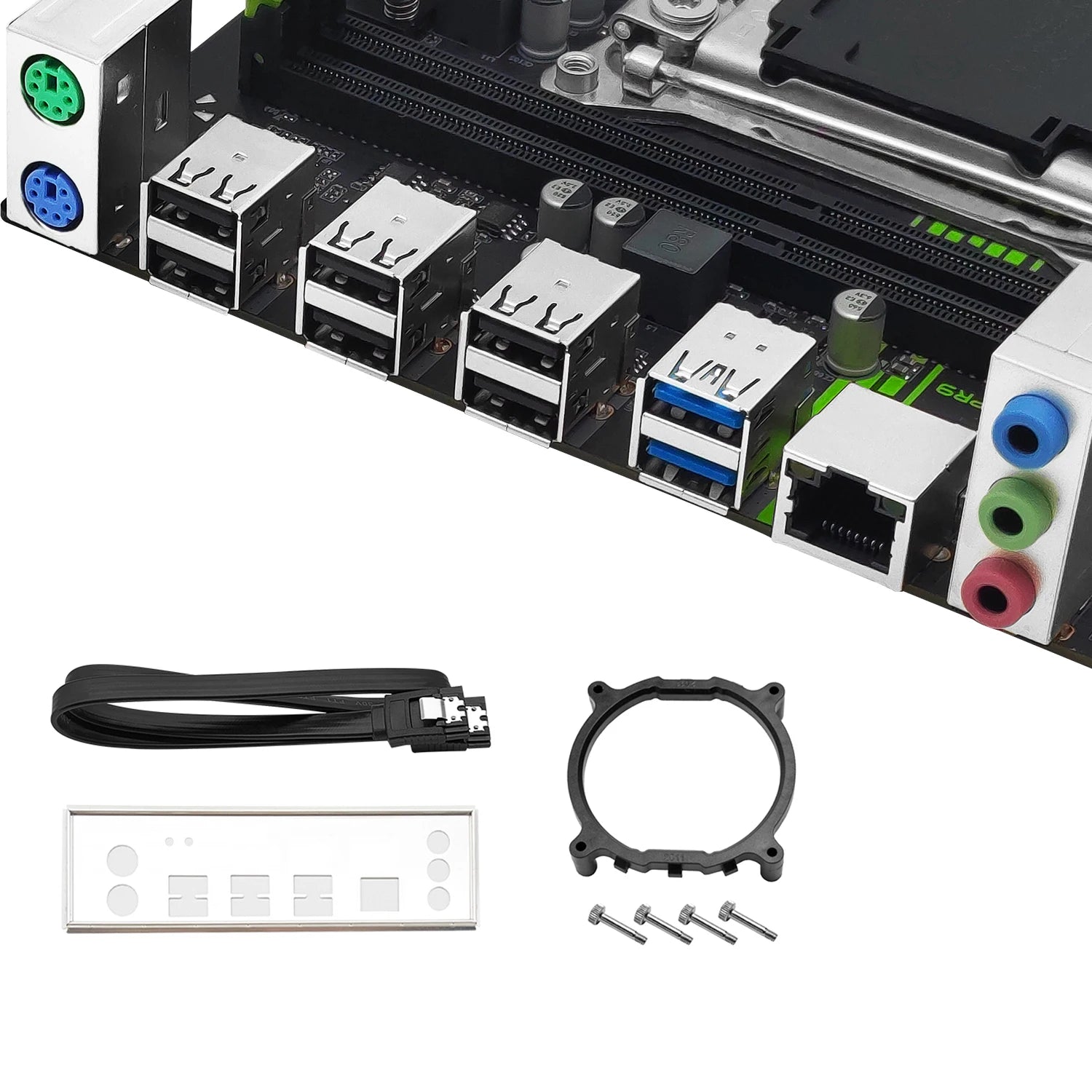

Free accessories: I/O shield *1, SATA cable *1, lga 2011 cooling bracket *1.

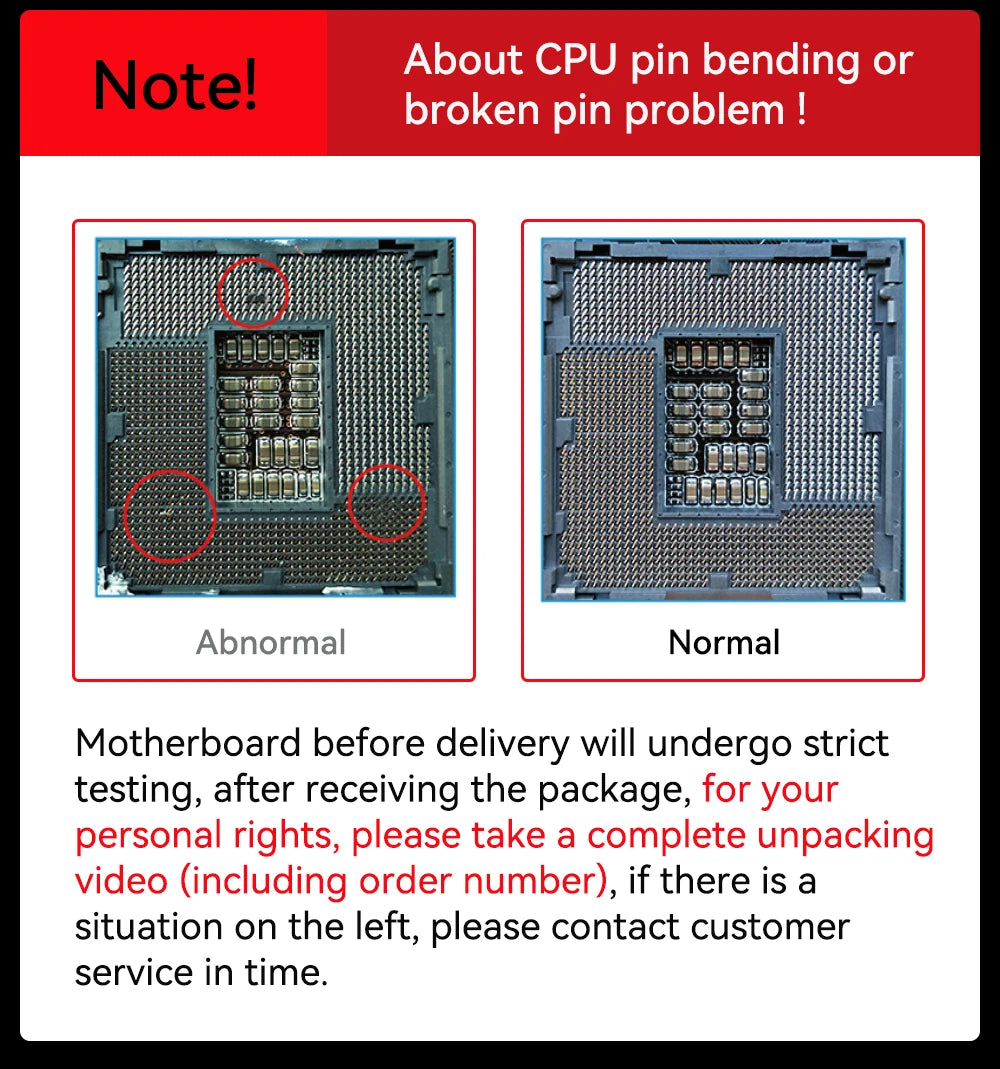

(>>Everything is manually tested before being packaged before sending. Please understand if there are any gifts missing!)

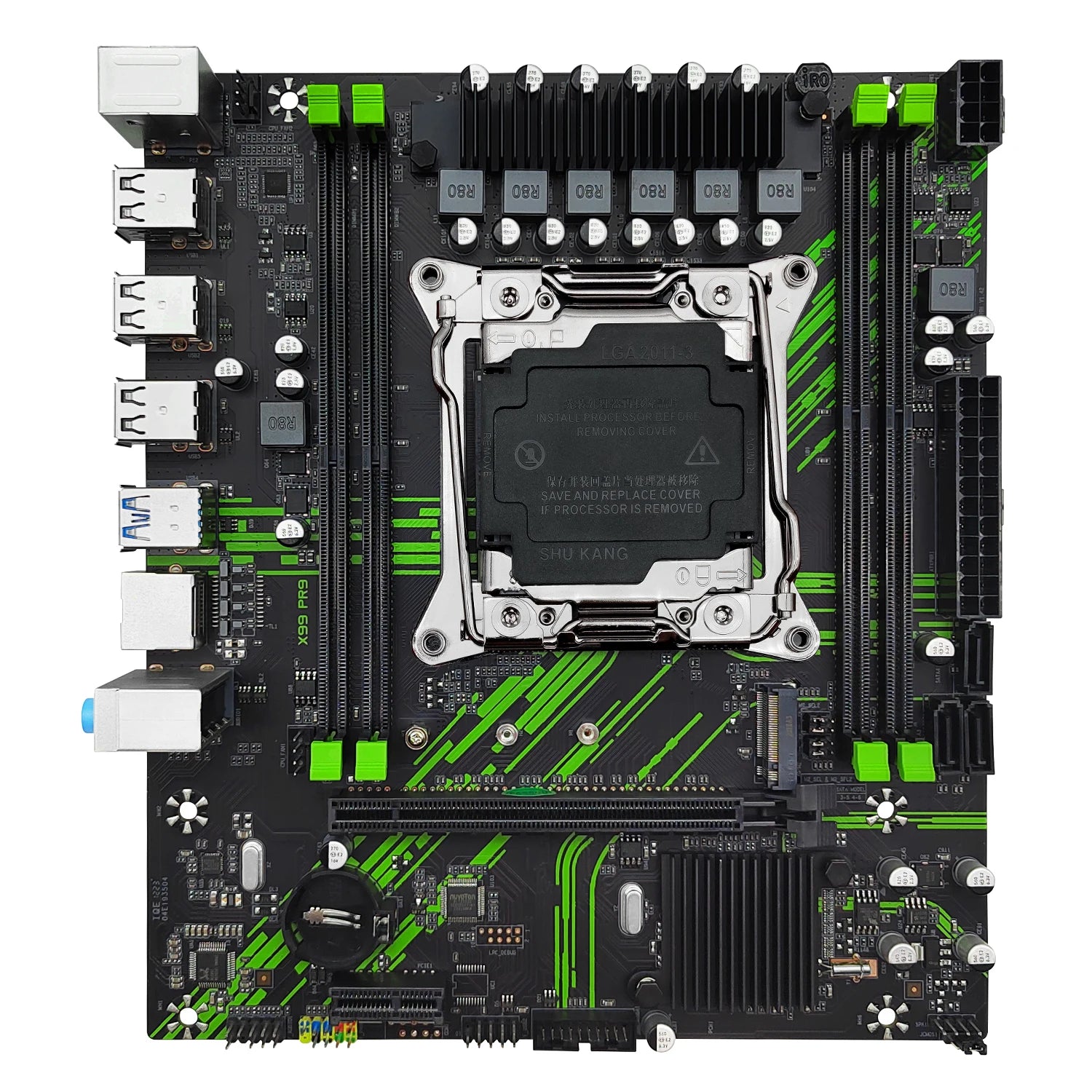

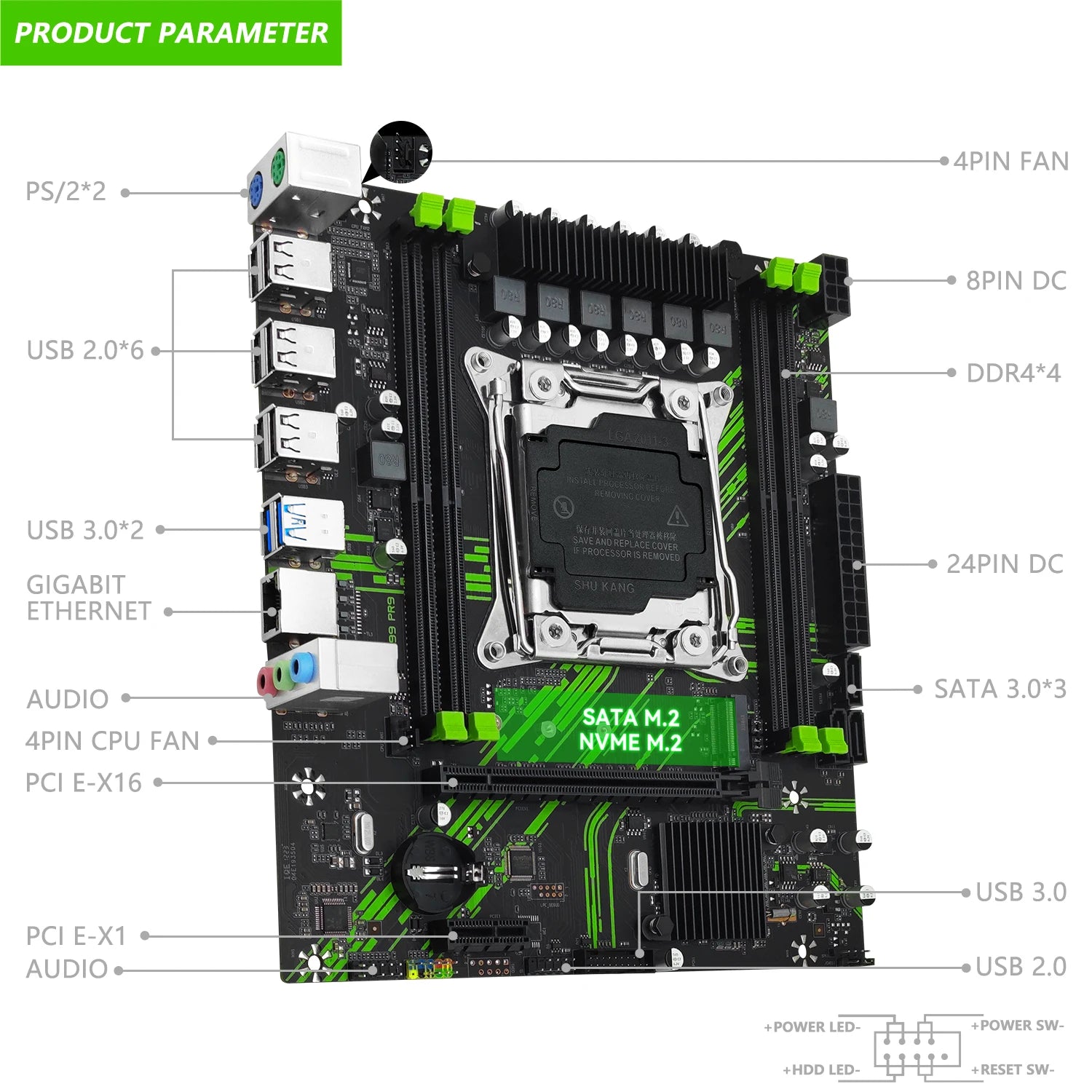

Motherboard information:
>>Brand:MACHINIST.
>>Motherboard model: X99 PR9.
>>Processor: Support LGA 2011-3 series,

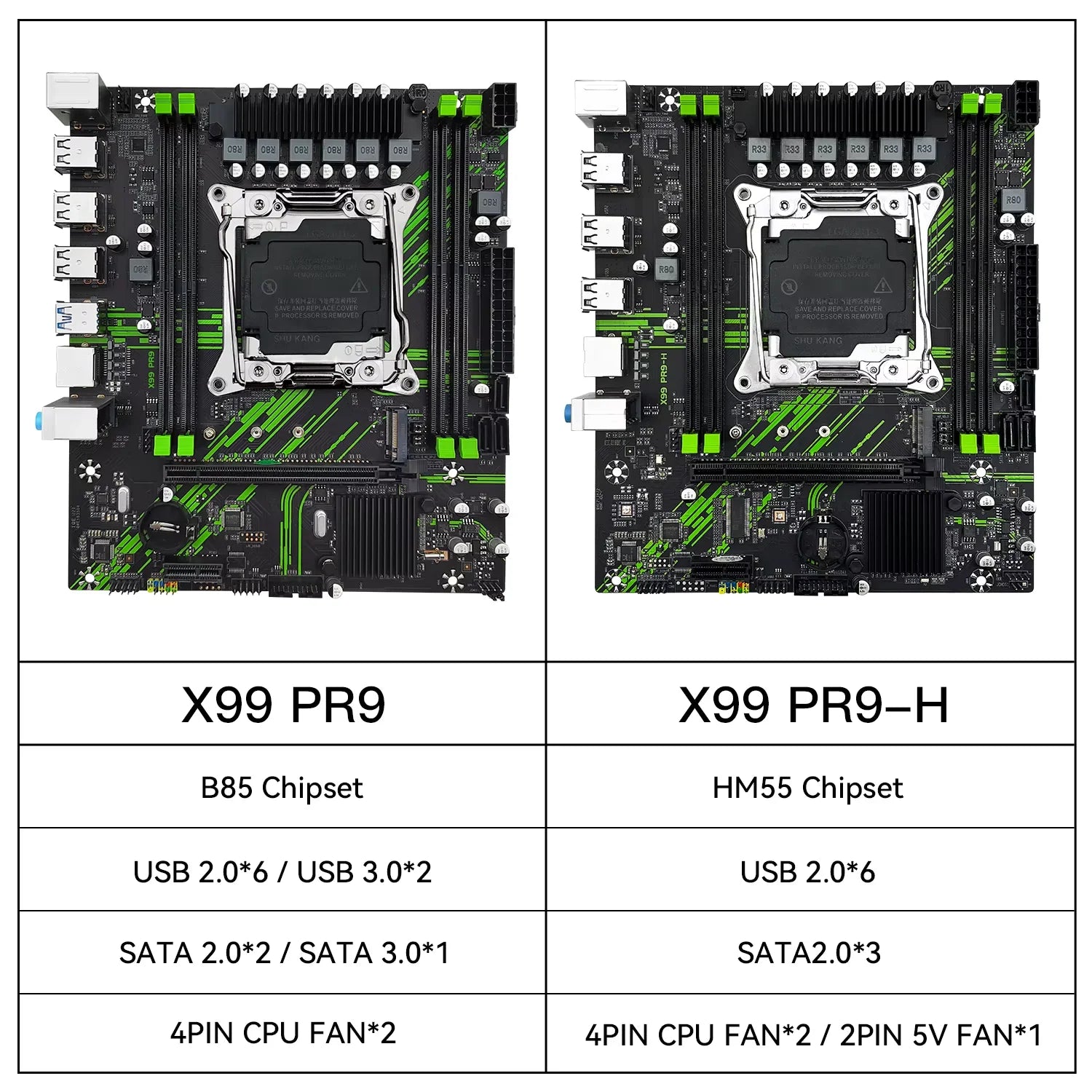

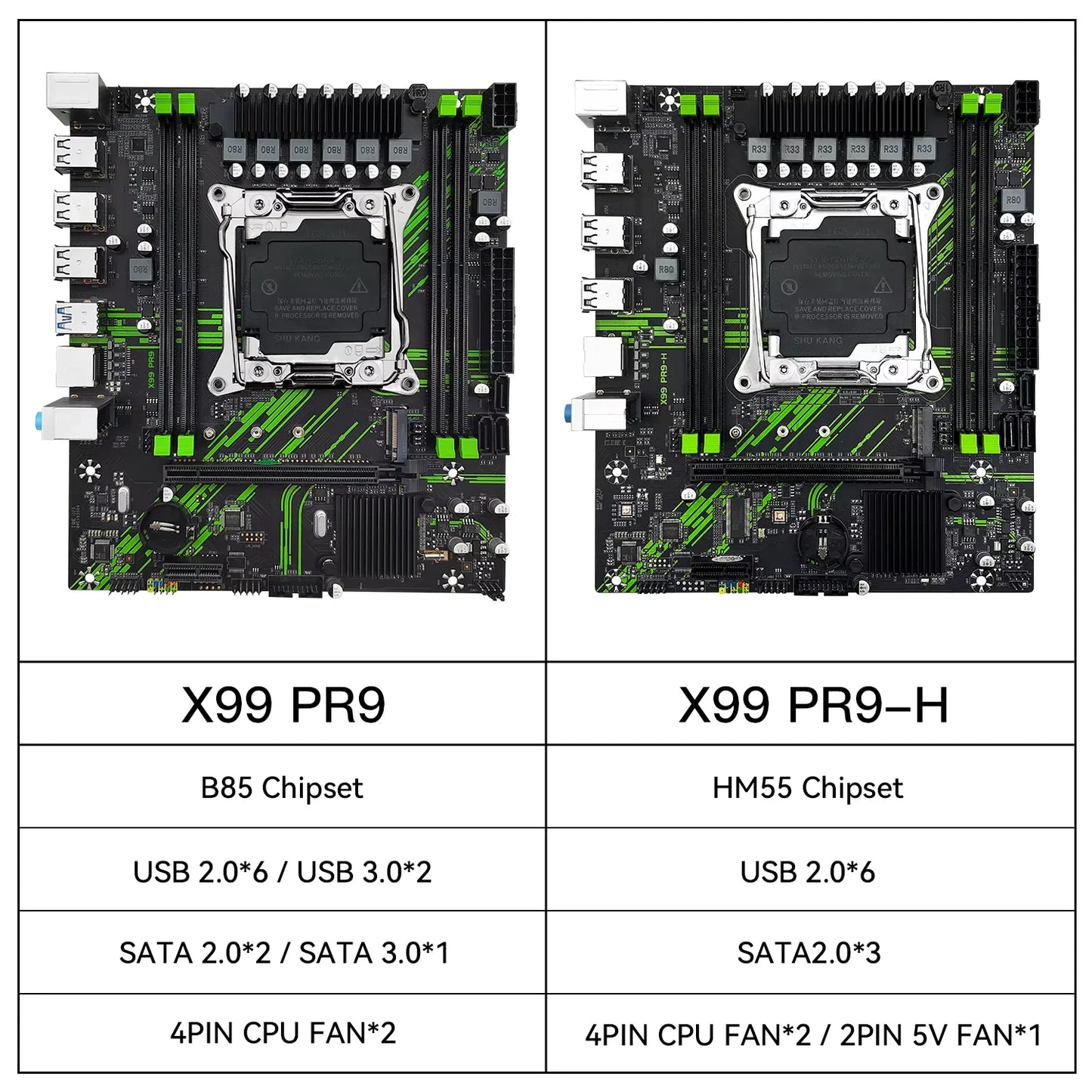

>> Chipset: B85/Q87/c226 chipset.

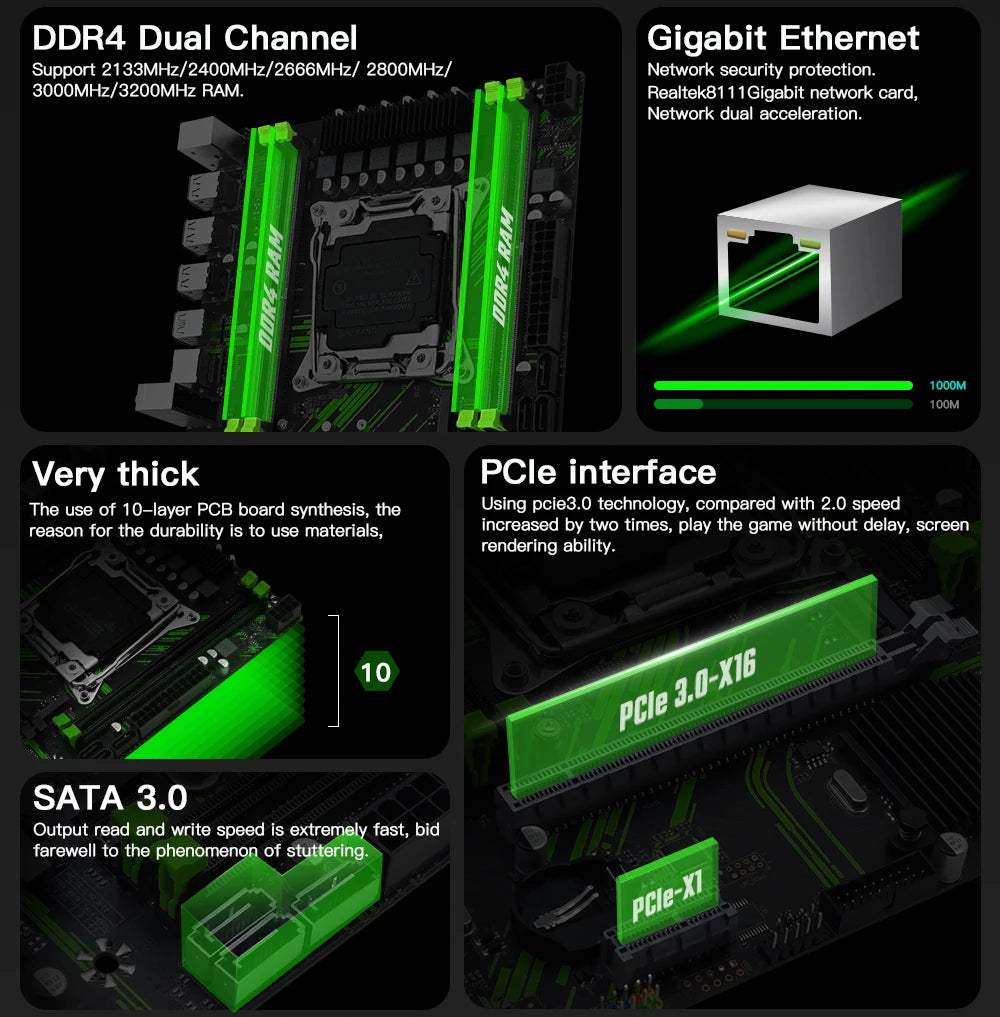

>>Memory

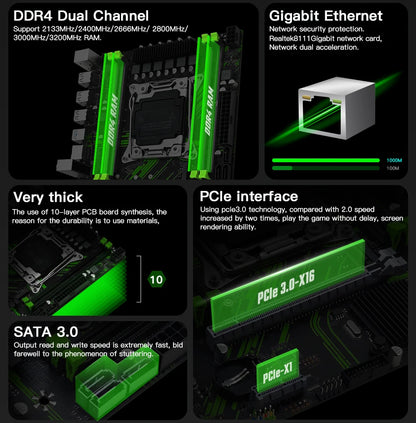

Technology: Dual Channel DDR4. Support 2133/2400/2666/3000/3200 MHZ.
Maximum capacity 128GB (32G × 4).
Memory slot: 4*288 PIN DDR4.
(Note: Please use international brands such as Samsung, Kingston, SanDisk, and Micron. Other brands may be incompatible.)
>> Post I/O
PS/2: 1 KB interface + 1 MS interface.
USB interface: 6 USB2.0; 2 USB3.0.
Ethernet: 1 Gigabit network card.
Audio: 1 (Mic-in, Line-out, Line-in).
>>Internal connector
COM Port: 1 pin 2x5Pin.
SATA interface: 2 (SATA2.0), 1 (SATA3.0).

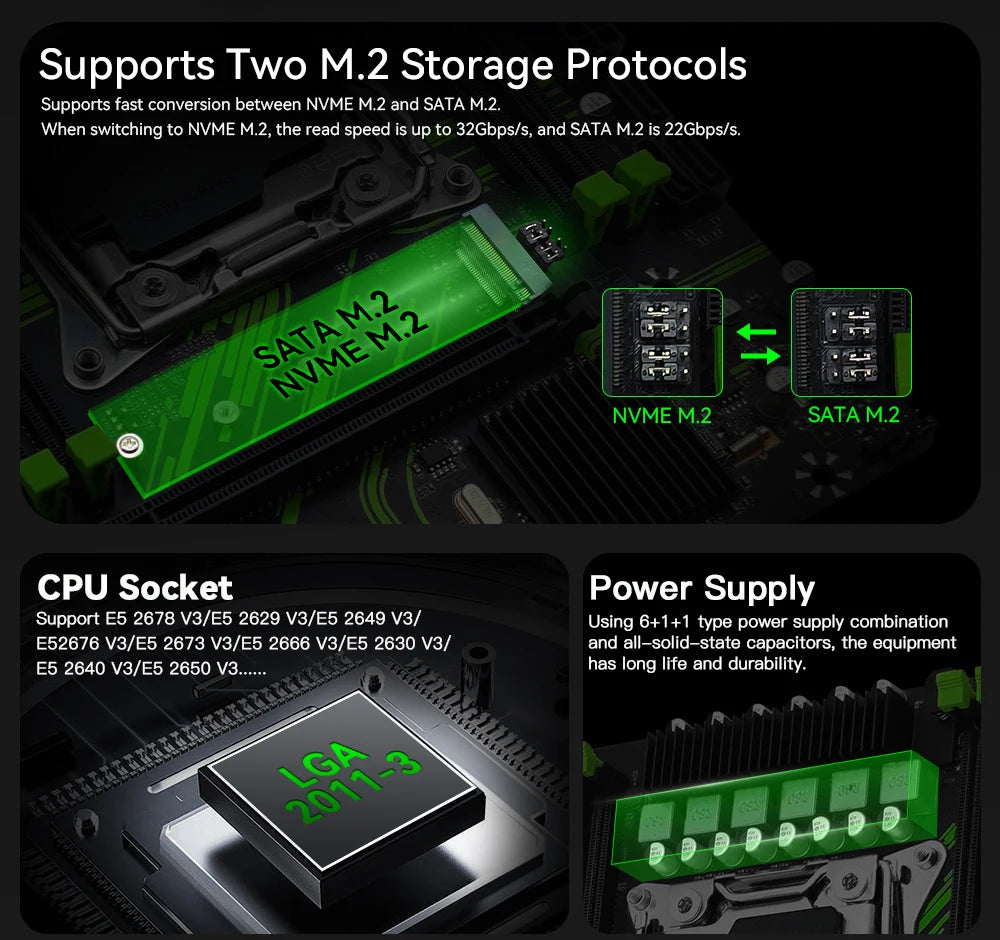

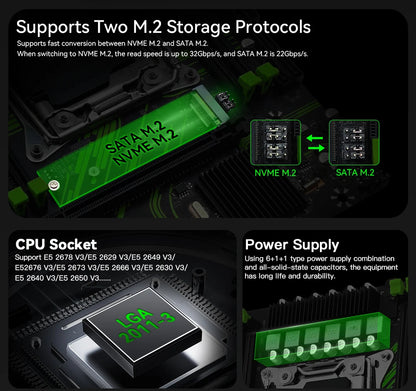

M.2:1 (NVMe/SATA).
PCIe: 1 PCIe 16X, 1 PCIe 1x.
F_PANEL: 1 2x5Pin.

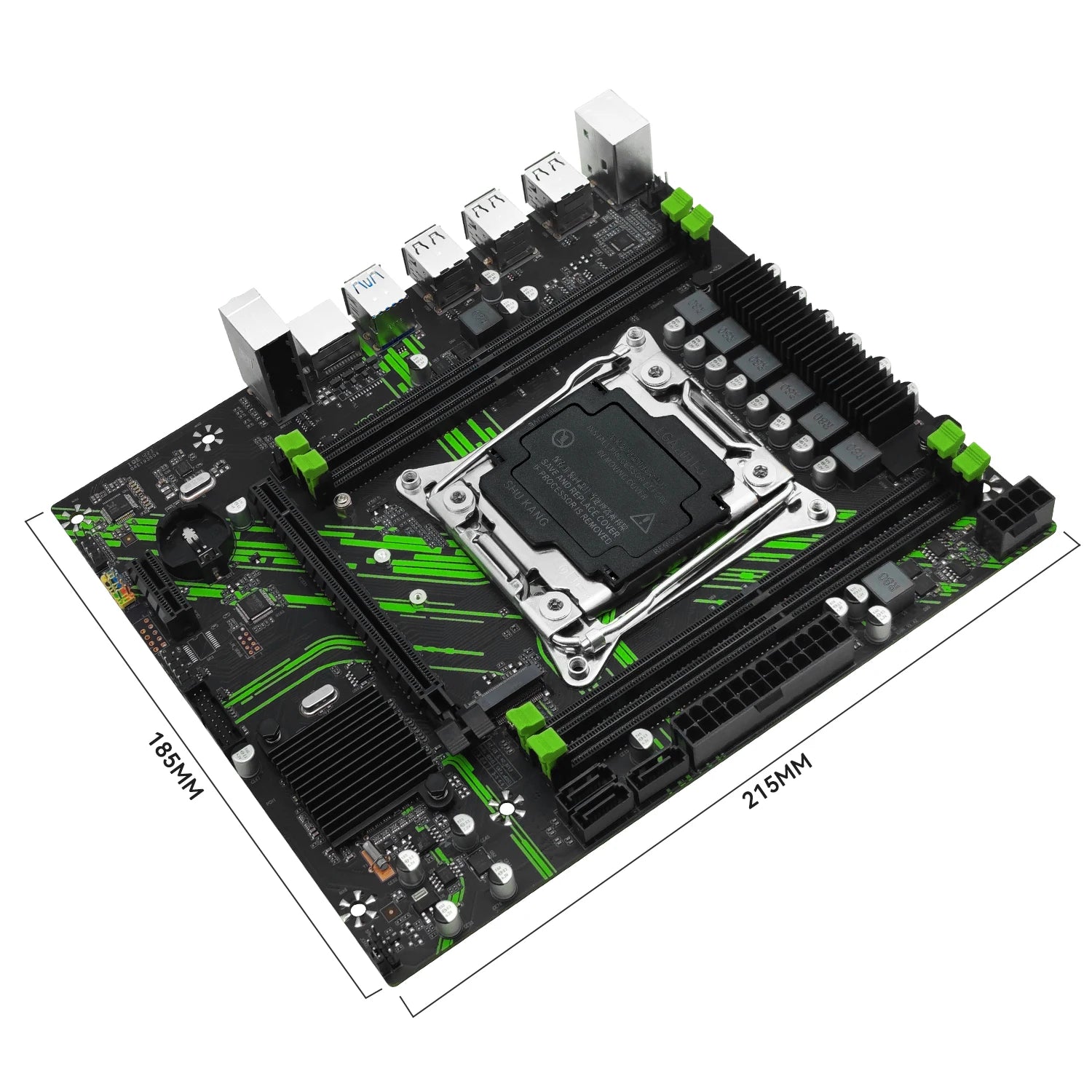

>>Outline dimensions: 215mm * 185mm.
>>For installing memory. All RAM needs to be installed first in slot #1 and slot #4 (the outermost slot). The middle memory slots (#2/#3) of the motherboard cannot work alone.
