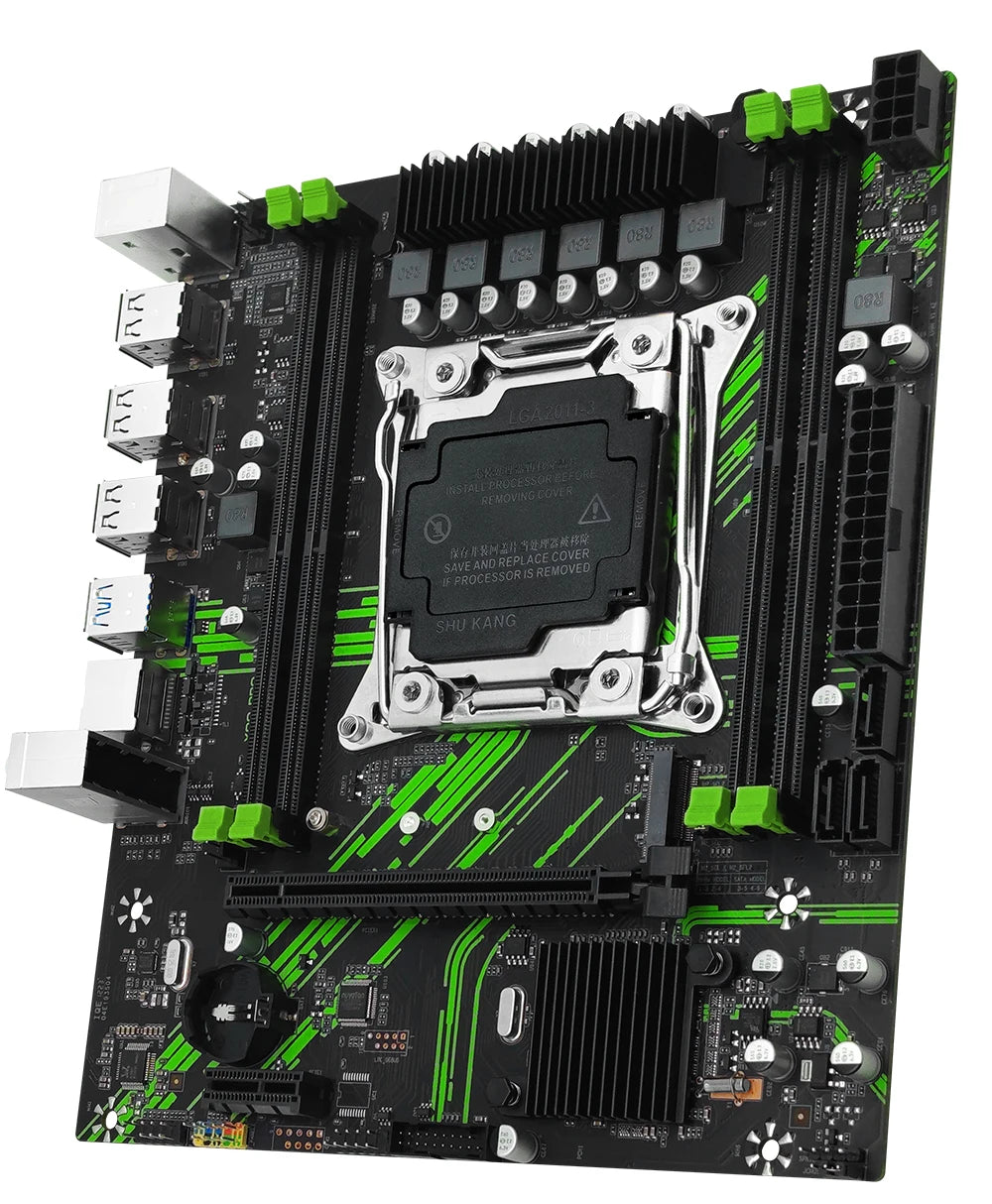

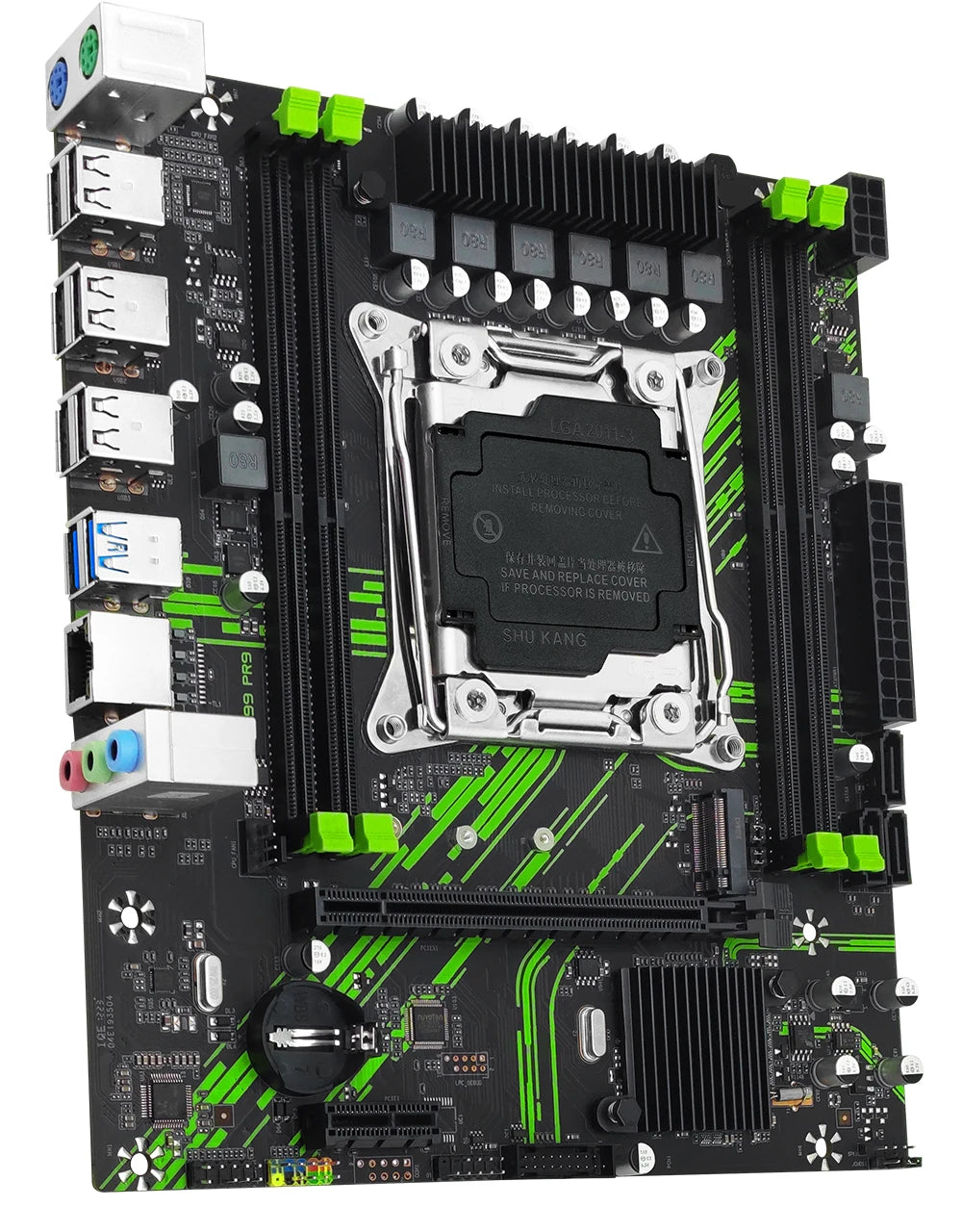

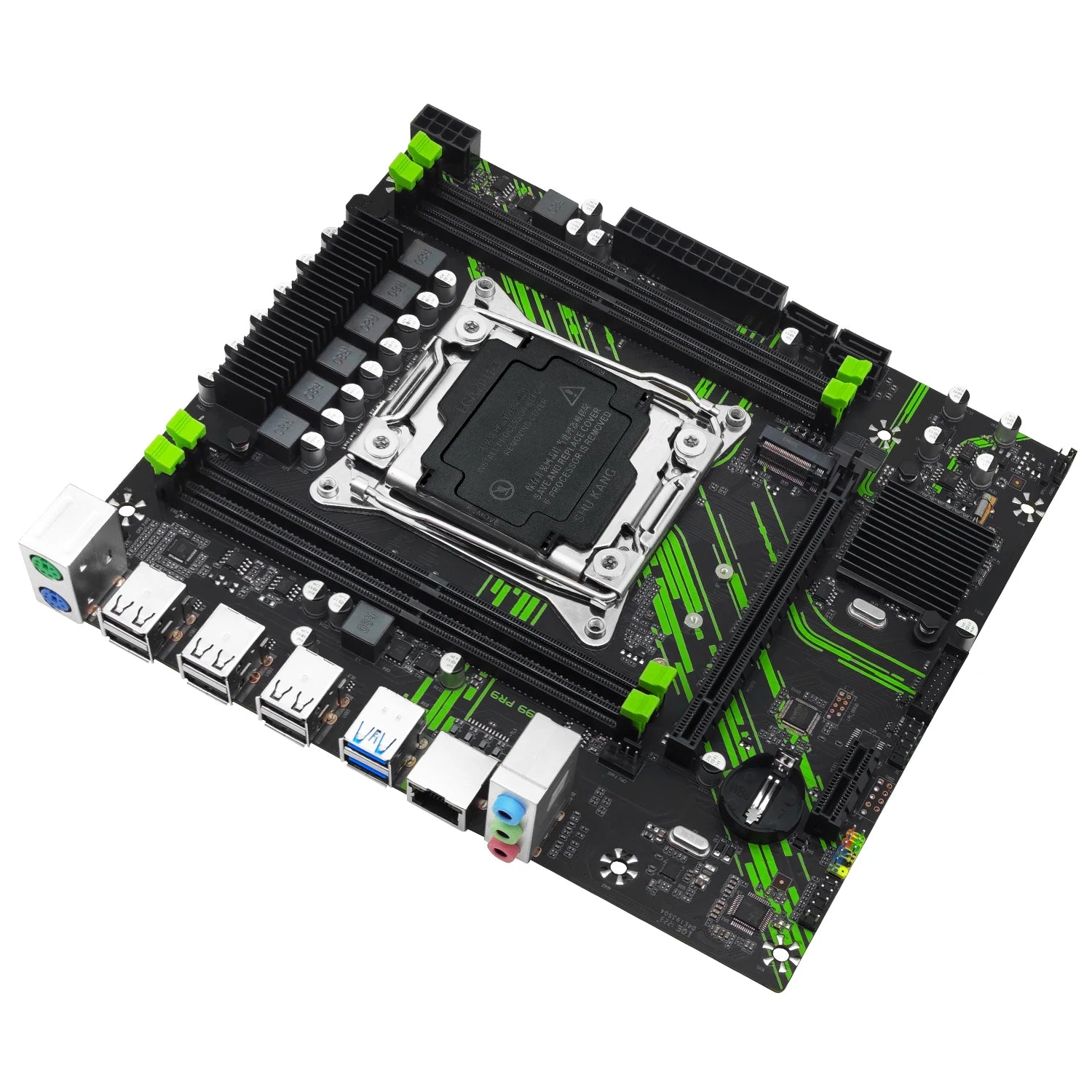

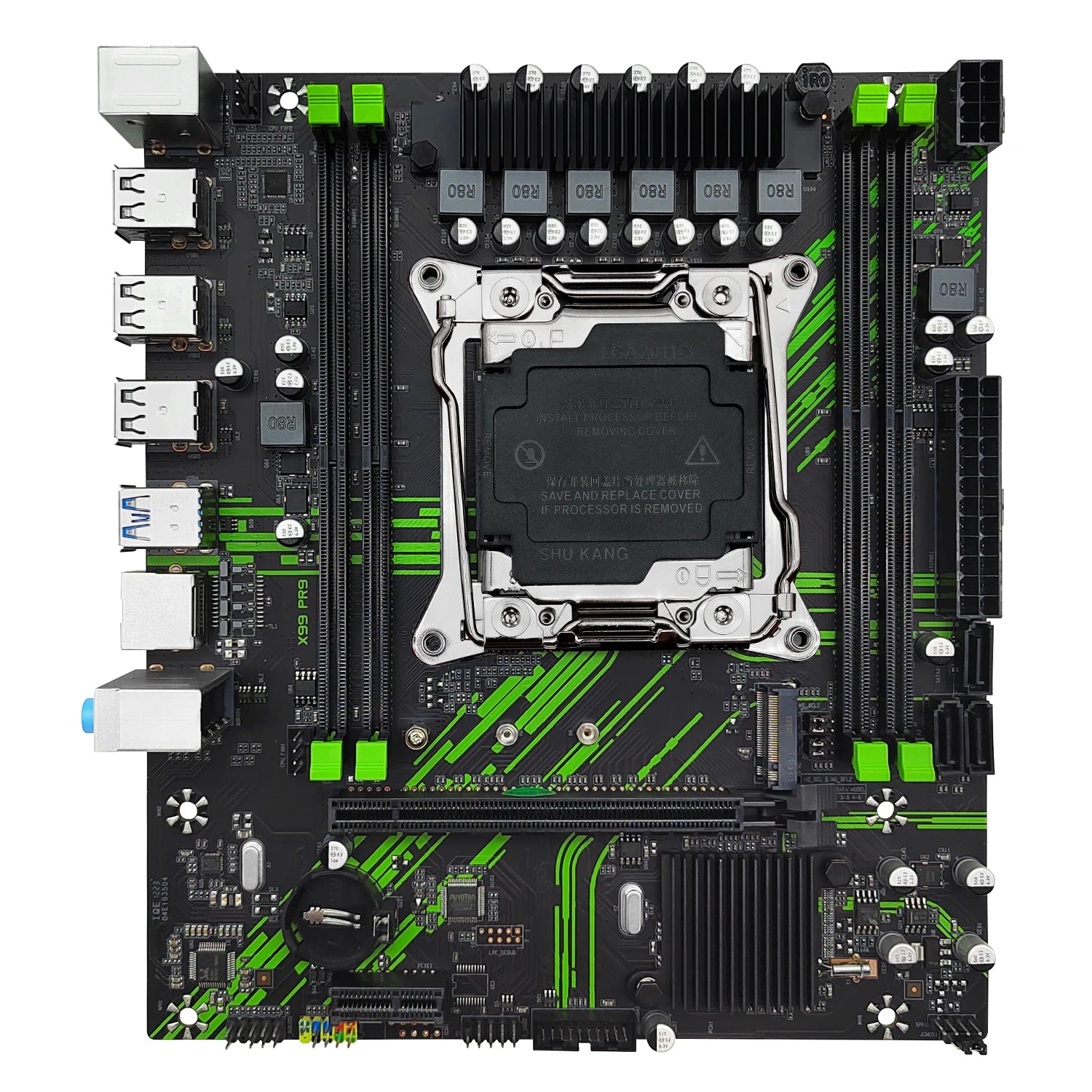

MACHINIST X99 PR9 motherboard supports Intel Xeon E5 2650 2680 2697 V4 LGA 2011-3 CPUs DDR4 memory and NVMe SATA M.2 M-ATX
MACHINIST X99 PR9 motherboard supports Intel Xeon E5 2650 2680 2697 V4 LGA 2011-3 CPUs DDR4 memory and NVMe SATA M.2 M-ATX
SPECIFICATIONS
Application: Desktop
Back I/O Ports: 3 x Audio Jacks,2x USB 3.2/3.1 Gen 1,PS/2
Battery Included: No
Brand Name: MACHINIST
Certification: RoHS,CE
Chipset: Intel B85
Chipset Manufacturer: Intel
Form Factor: CeB,Micro-ATX
High-concerned chemical: None
MACHINIST: X99
MACHINIST Model: X99-PR9
Max LAN Speed: 1000Mbps
Maximum Ram Capacity: 128 GB
Memory channel: Double
Motherboard: X99 Kit
Number Of Memory Slots: 4
Number of M.2: 1
Number of PCI: 2
Number of PCIe x 1: 2
Number of PCIe x 16: 1
Number of PCIe x 8: 0
Number of SATA Ports: 2
Onboard Connectors & Header: 24-pin Main Power Connector,AAFP Connector,System Panel(s) (Chassis intrusion header is inbuilt)
Onboard LAN: 2x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Processor compatibility: Intel Xeon Scalable,Intel Core
Quality Certification: ce,ROHS
RAID Supported: No
Socket Type: LGA 2011-3
Special Features: NONE
Storage Interface Type: SATA 3,M.2 (NVMe)
Support Memory Type: DDR4 ECC
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2280
Usage Scenario: Gaming,Audio & Video,Office,Video Production,others
With CPU: No

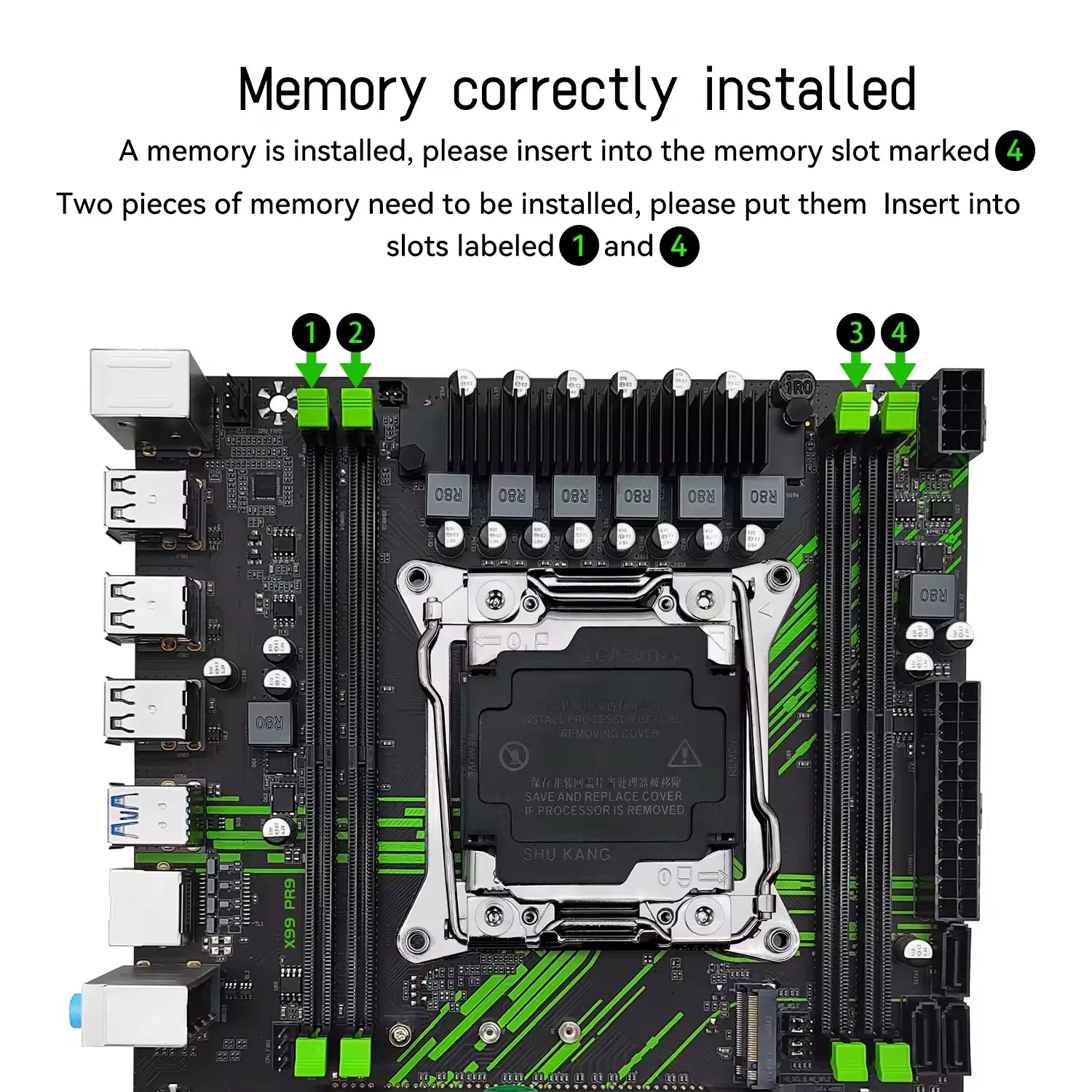

> >Attention should be paid to the memory slots on this motherboard. The memory slots (#2/#3) in the middle of the motherboard cannot work independently. A single RAM needs to be installed in slot #1. Two RAM slots need to be prioritized for installation in slot #1 and slot #4."
> > Motherboard information:
Brand :MACHINIST.
Motherboard model :X99 PR9.
Processor: Supports LGA 2011-3 series
Chipset :B85/Q87/C226 Chipset.

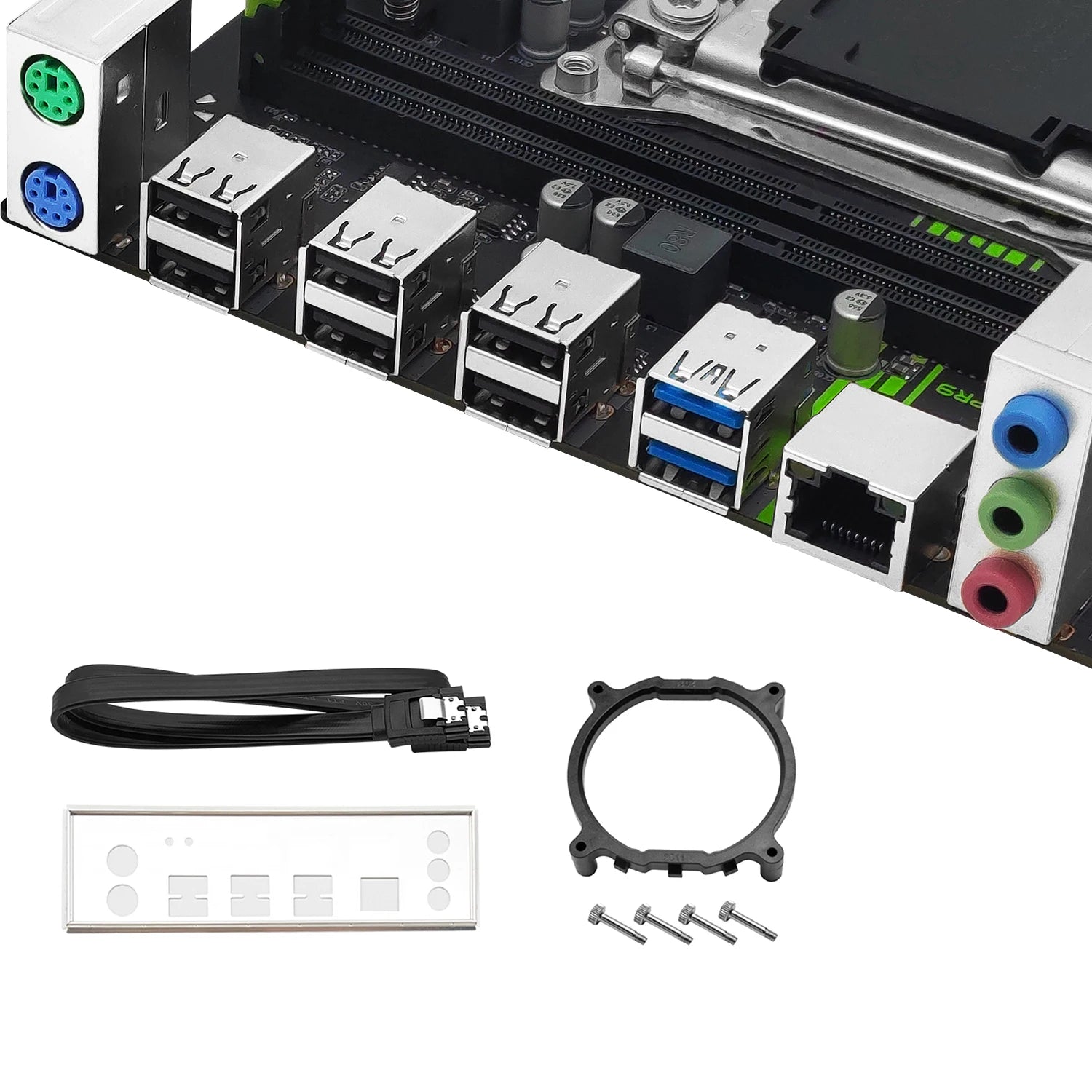

(Complimentary accessories: I/O shield *1, SATA cable *1, lga 2011 heat sink bracket *1.
All packages are manually tested before sending. If any gifts are missing, it cannot be used as a reason for a refund. Please understand!"
> > Memory:
Technology: Dual-channel DDR4. Supports 2133/2400/2666/3000/3200 MHZ.
The maximum capacity is 128GB (32G × 4).
Memory slot :4 * 288-pin DDR4.
Note #1: Please use international brands such as Samsung, Kingston, Sandisk, and Micron. There are incompatibility issues with other brands.

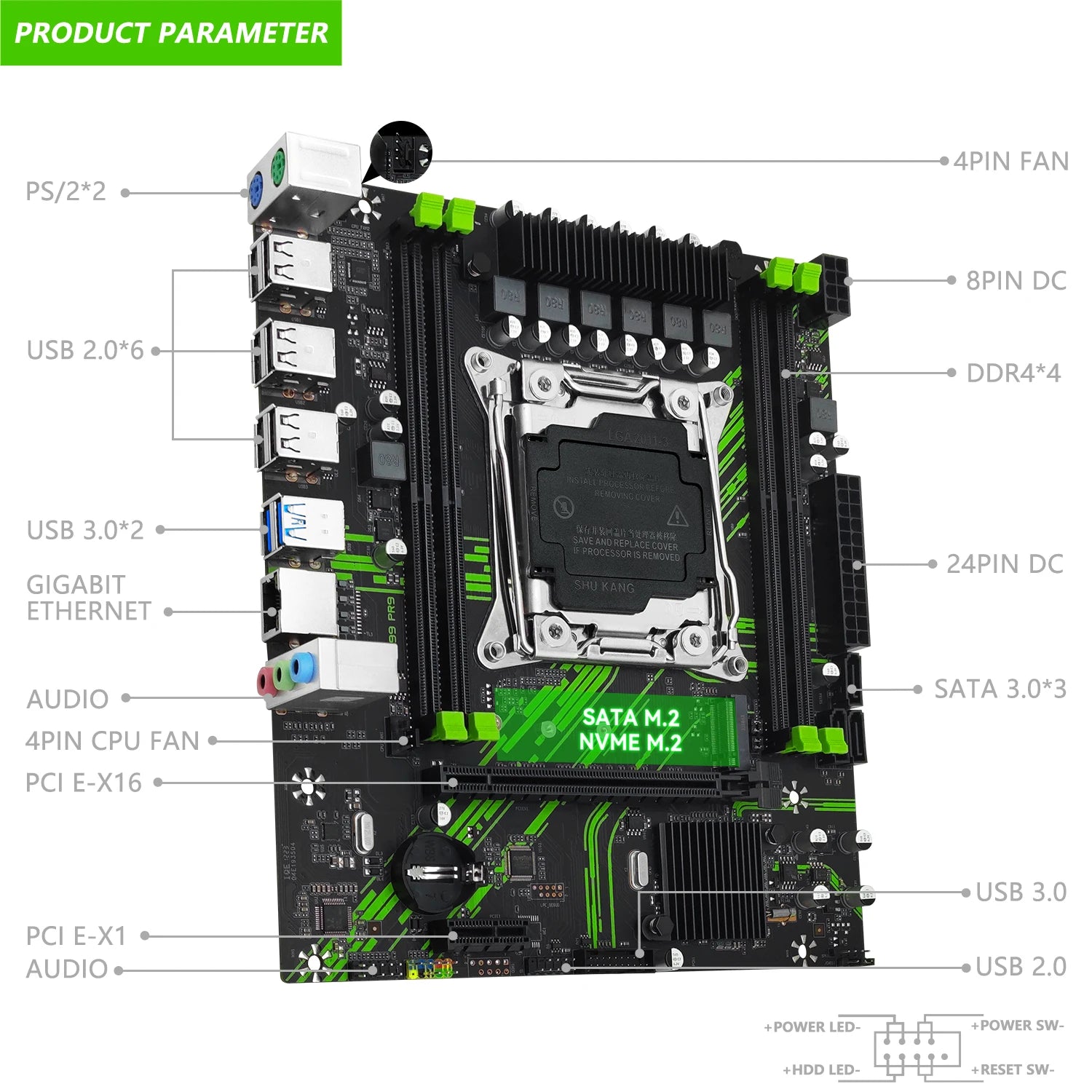

>> Post I/O:
PS/2: 1 KB interface + 1 MS interface.
USB interface :6 USB2.0 ports; Two USB3.0 ports.
Ethernet: 1 Gigabit network card.
Audio :1 (Mic-in, Line-out, Line-in).
>> Others:
SATA interfaces :2 (SATA2.0), 1 (SATA3.0).

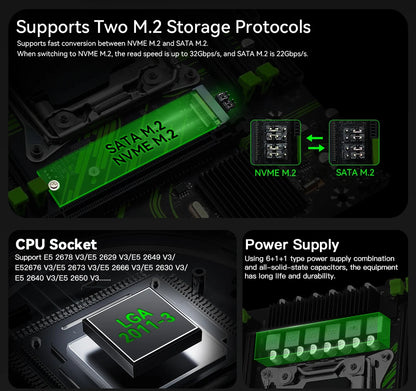

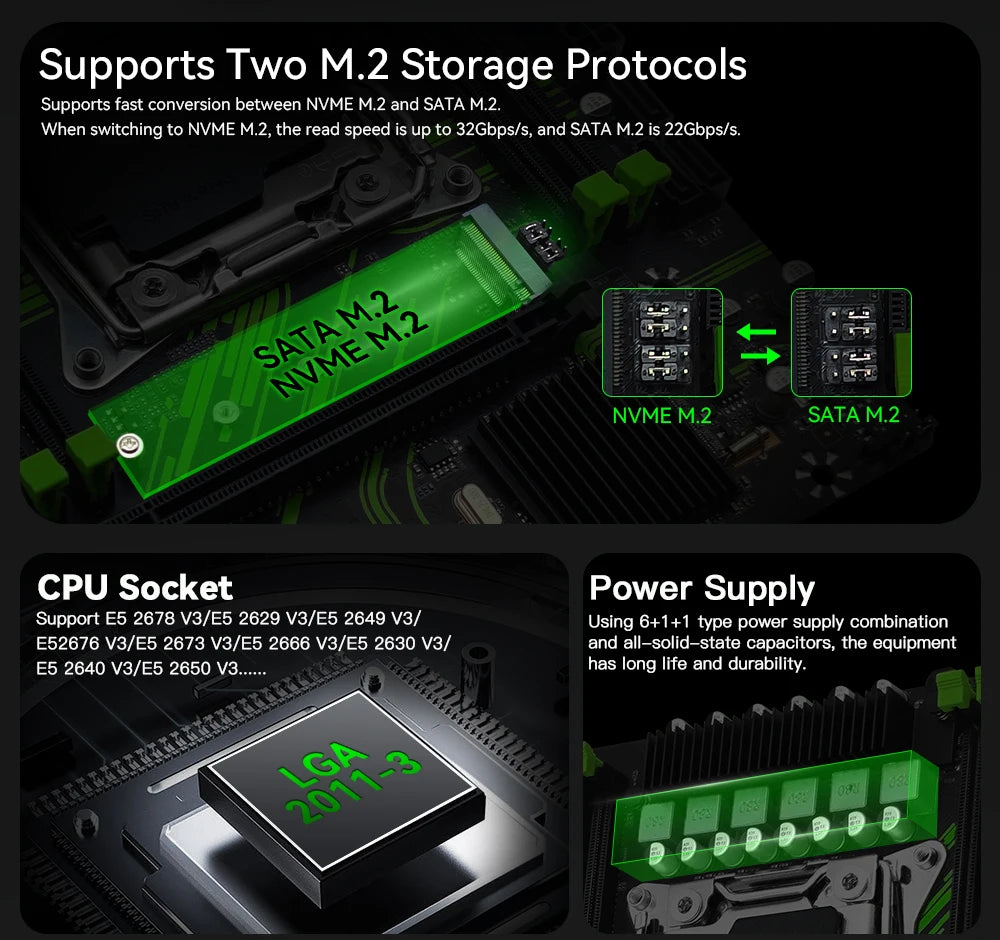

M.2:1 (nvme/sata).
PCIe: 1 PCIe 16x, 1 PCIe 1x.

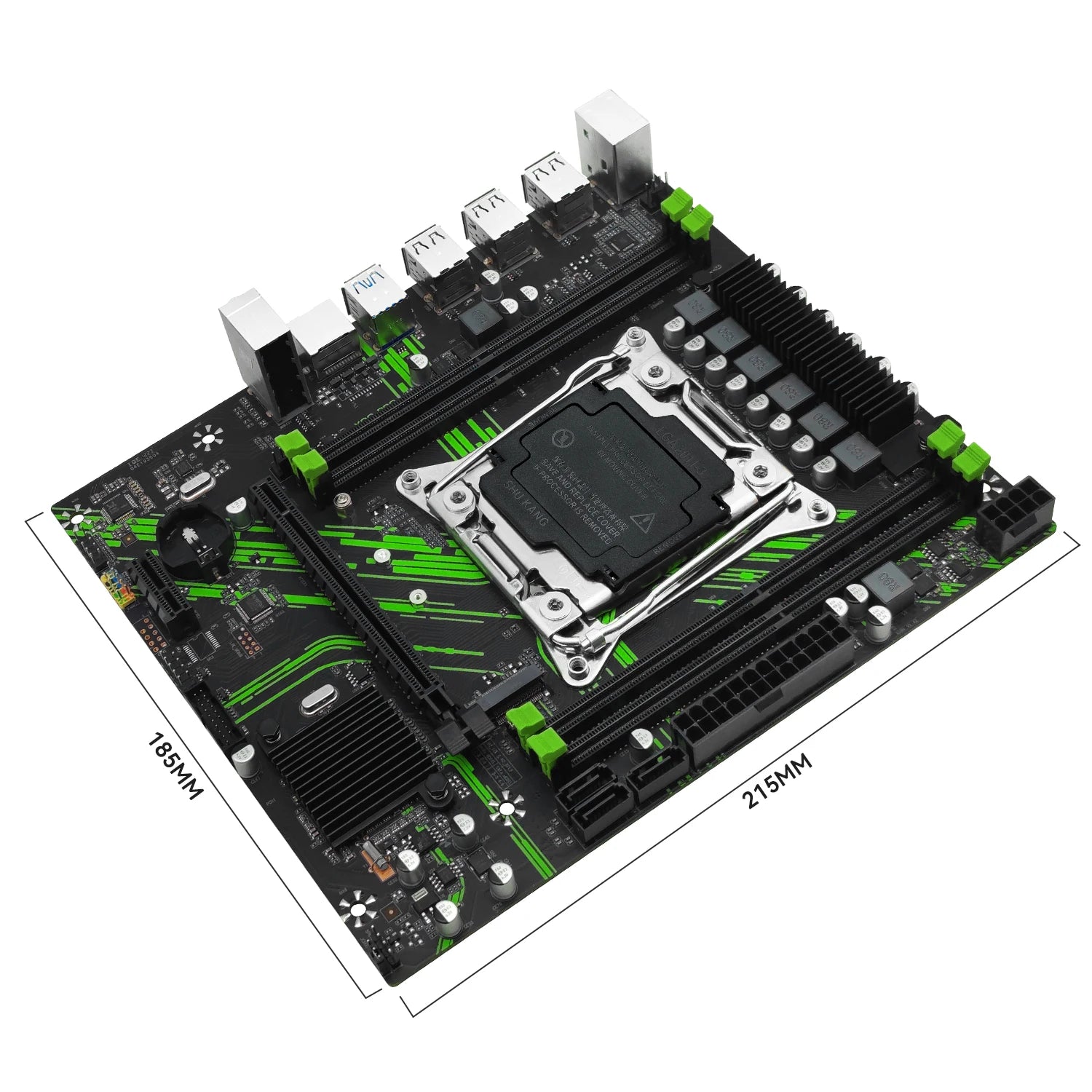

Overall dimensions :215mm * 185mm.
